Series 16i/160i/160is/18i/180i/180is/ Descriptions Page 454

Descriptions
31. SAFETY FUNCTIONS
B–63522EN/02
NC FUNCTION
426
This function checks for interference among the tool post and chucks and
stops the machine safely. Three major interference check areas can be set,
each of which is specified by using rectangles. Two of the three
interference check areas can be moved and rotated.

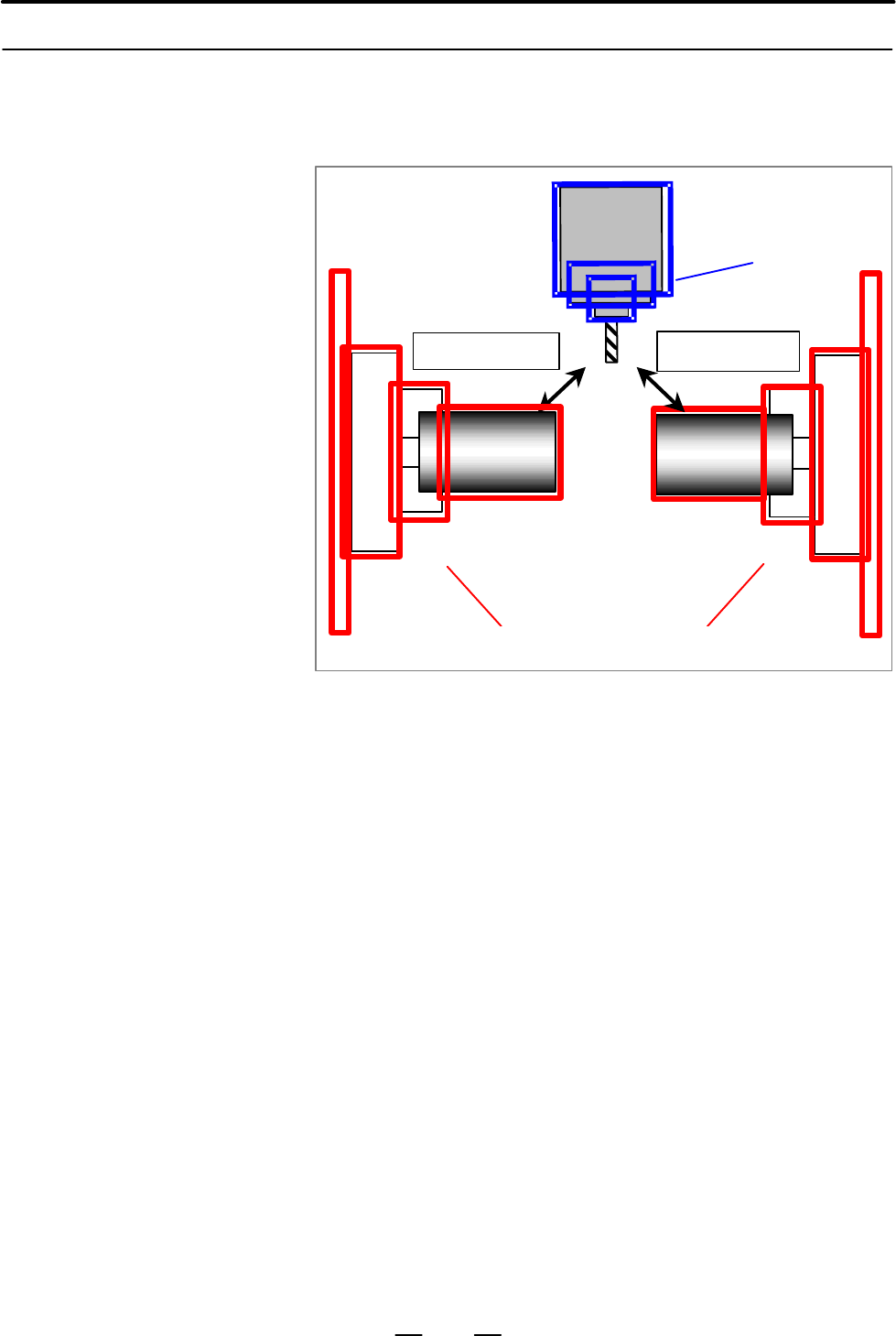

Interference check area A
Interference check
Interference check area C Interference check area B
Interference check
You can set the following interference check areas:
1) Interference check area A and interference check area B
You can set four rectangles. The entire area moves according to the
movement along parameter–set two axes. In addition, the entire area
can be rotated according to the rotation on a parameter–set axis.
2) Interference check area C
You can set four rectangles. The area cannot be moved and rotated.
31.2.9
Rotation Area
Interference Check
