Series 16i/160i/160is/18i/180i/180is/ Descriptions Page 508

Descriptions
B–63522EN/02
3. CONVERSATIONAL AUTOMATIC
PROGRAMMING FUNCTION FOR
MACHINING CENTERS
AUTOMATIC PROGRAMMING
FUNCTION
480

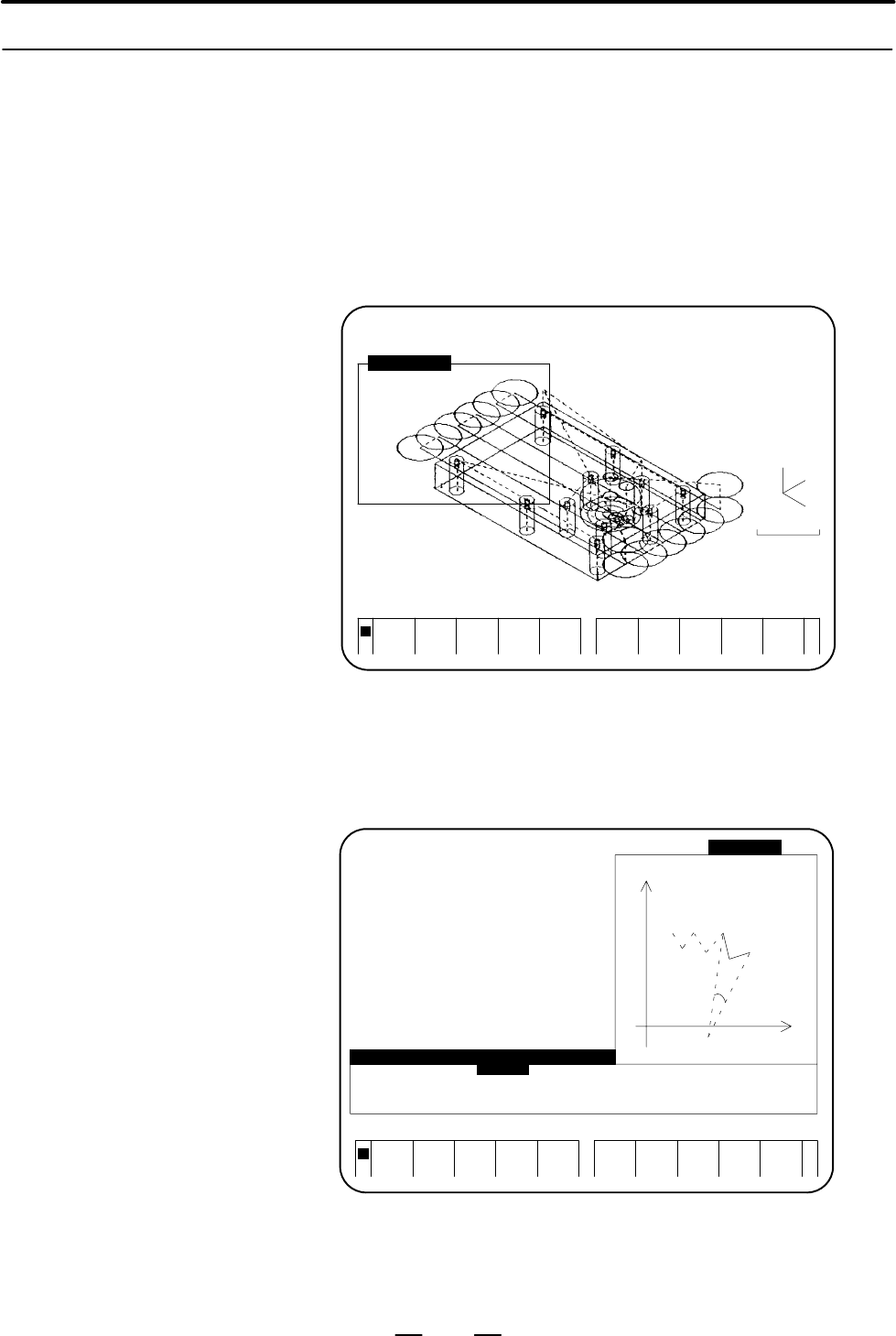

A machining program created conversationally can be run directly. The
program can also be converted and then executed as an NC program form.
Furthermore, when modifications are made to the NC program obtained
by the conversion, a more efficient machining program can be created.
RETURN
PATH GRAPHIC (EXECUTION)
CONVERT NC FORMAT
X –65.000
Y 40.000
Z 3.000
F 500.000
S 5000
T 15
MACHINING TIME 34.5
00:06:21
PRESS RETURN SOFTKEY MEM **** *** *** 11:21:05
<
O1234 N01234
Z
Y
X
O2000→O2001
G04X0.;
G00Z3.;
X–65.Y40.;
G90Z3.;
F500.;
G01Z–22.;
G04X0.;
G00Z3.;
G52X0.Y0.Z0.;
M30;
In programming for an arbitrary figure, a certain section of a figure can
be repeated more than once. Three types of repetitions are available:
Inversion, rotation, and parallel displacement. By combining these types,
program data can be utilized more than once in a program.
GUIDAN INPUT
CE END
PROGRAM 01000 PAGE :01/ CREATING
NO. CYCLE PROCESS TOOL NAME
001 INITIAL SETING
002 SIDE CUTING CONTOR PREP. END MILL
1 START POINT X= –30.0
2 APPROACII X= 0
3 → X= 100.0
4 ↑ X= 100.0
5 CORNER R R= 30.0
6 → X= 200.0
CONTOUR FORM (ROTATION COPY)
NO. OF REPEAT : R=
CENTER X : X=
CENTER Y : Y=
ANGLE K : K=
<
R2 R1
END PT.
START PT.
K
X
Y
(X, Y)
3.1.4
Other Optional
Functions
NC program output
function
Contour repeat function
