FANUC I/O Link-AS-i Converter Connecting Manual Additional Manual Page 10

Additional Manual

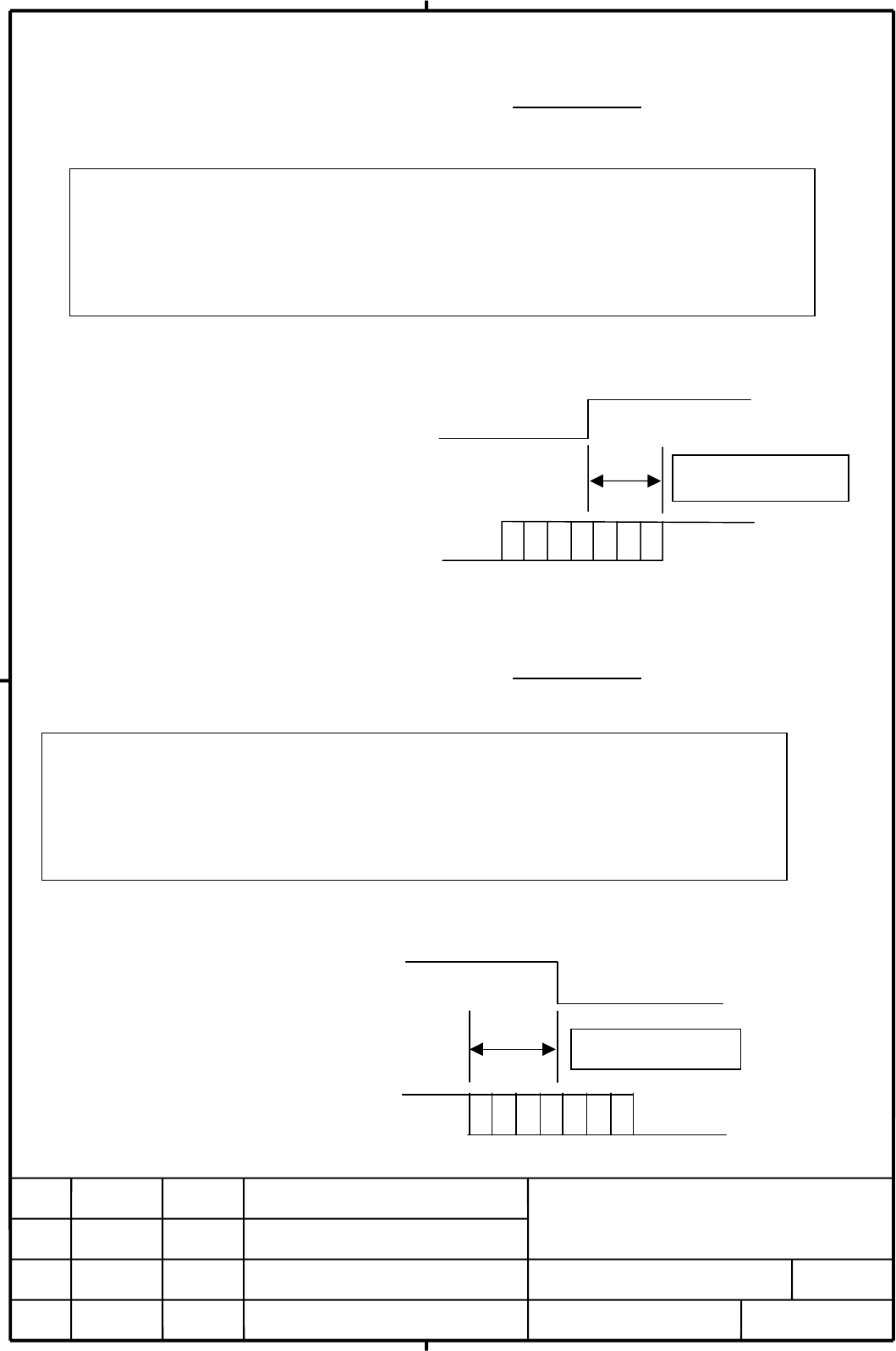

3.3Power turn-on sequence
Turn on the power to this unit in the following order or simultaneously
.
However it is possible to turn-on of AS-i power which connects with AS-i
communication cable at any time in spite of the following order.
"Simultaneously" here means that 1 and 2 above must be turned on within 500ms at the
most of turning 3 on.
3.4 Power turn-off sequence
Turn off the power to this unit in the following order or simultaneously
.
However it is possible to turn-off of AS-i power which connects with AS-i
communication cable at any time in spite of the following order.
"Simultaneously" here means2 and 3 may be turned off within 500ms before 1 is turned off.
If 2 and 3 are turned off earlier, alarm information remains in the CNC.
EDIT
FANUC LTD
SHEET
DRAW. NO.
CUST
TITLE
10/33
DESCRIPTION DESIG. DATE
FANUC I/O Link-AS-i Converter
Connecting manual
A
-80906E
1. Power supplies (200 VAC) for the entire machine (including the servo amplifier)
2. Power supplies (24 VDC) for I/O Link AS-i converter and the FANUC I/O Link slave devices
(such as the I/O Unit-MODEL A)
3. Power supplies (24 VDC) for the control unit (CNC)
OFF
ON
OFF
ON
500msec or less
24 VDC power supply
for control unit
24 VDC power supply
for I/O Link-AS-i converter
and I/O Link slave devices
1. Power supplies (24 VDC) for the control unit (CNC)
2. Power supplies (24 VDC) for I/O Link AS-i converter and the FANUC I/O Link slave devices
(such as the I/O Unit-MODEL A) the servo amplifier.
3. Power supplies (200 VAC) for the entire machine
OFF
ON
OFF
ON
500
m
sec
o
r l
ess
24 VDC power supply
for control unit
24 VDC power supply
for I/O Link-AS-i converter
and I/O Link slave devices
