  2. FANUC I/O Link-AS-i Converter Connecting Manual

FANUC I/O Link-AS-i Converter Connecting Manual Additional Manual Page 7

Additional Manual
3)Using DIN rail for mounting
EDIT
FANUC LTD
SHEET
DRAW. NO.
CUST
TITLE
7/33
DESCRIPTION DESIG. DATE
FANUC I/O Link-AS-i Converter
Connecting manual
A
-80906E
How to mount

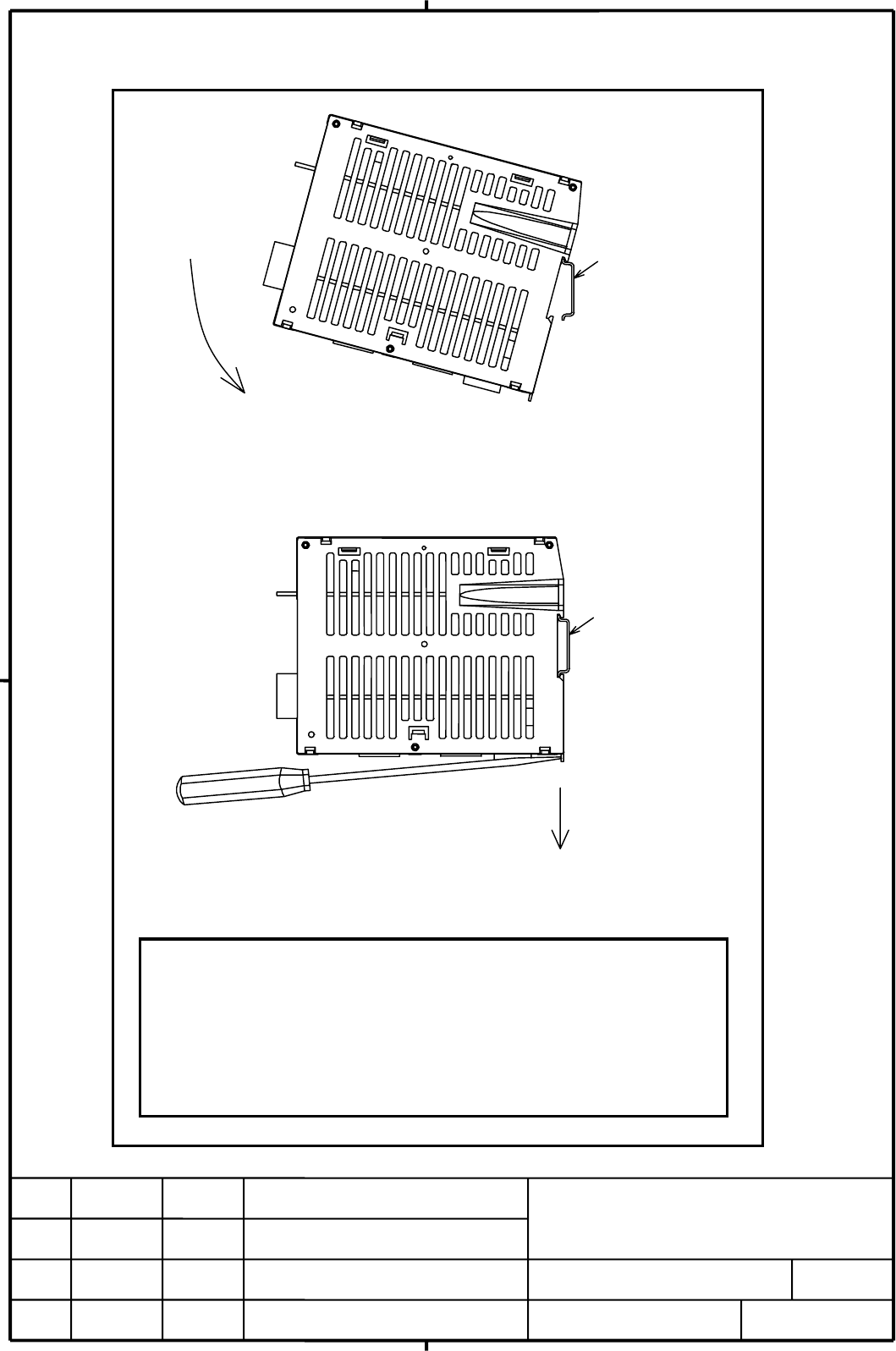

1.Place the hook of the unit on the top end of the DIN rail
2.Push in the unit firmly until it clicks.
How to remove
1. Pull down the look on the unit using
a flat-blade screwdriver or similar object.
2. Remove the unit by pulling bottom toward you.
DIN rail
DIN rail
CAUTION
To prevent damage to the lock when removing the unit, be careful not
to apply excessive force to the lock. When mounting and removing the
unit, whenever possible, hold the top and bottom edges. Do not apply
force to the sides (where the are slits are located).
