0i - MC Operators manual Page 407

Operators manual

Page of 918

/ 918

PROGRAMMING

B–64124EN/01

19. HIGH SPEED CUTTING

FUNCTIONS

383

Linear acceleration/deceleration before interpolation for cutting feed in

the AI advanced preview control/AI contour control mode can be changed

to bell–shaped acceleration/deceleration before interpolation. With

bell–shaped acceleration/deceleration before interpolation, smooth

acceleration/deceleration can be applied to the cutting feedrate to reduce

the shock on the machine by fluctuations in acceleration that are involved

in changes in the cutting feedrate.

To use this function, the option of look–ahead bell–shaped acceleration/

deceleration before interpolation is required.

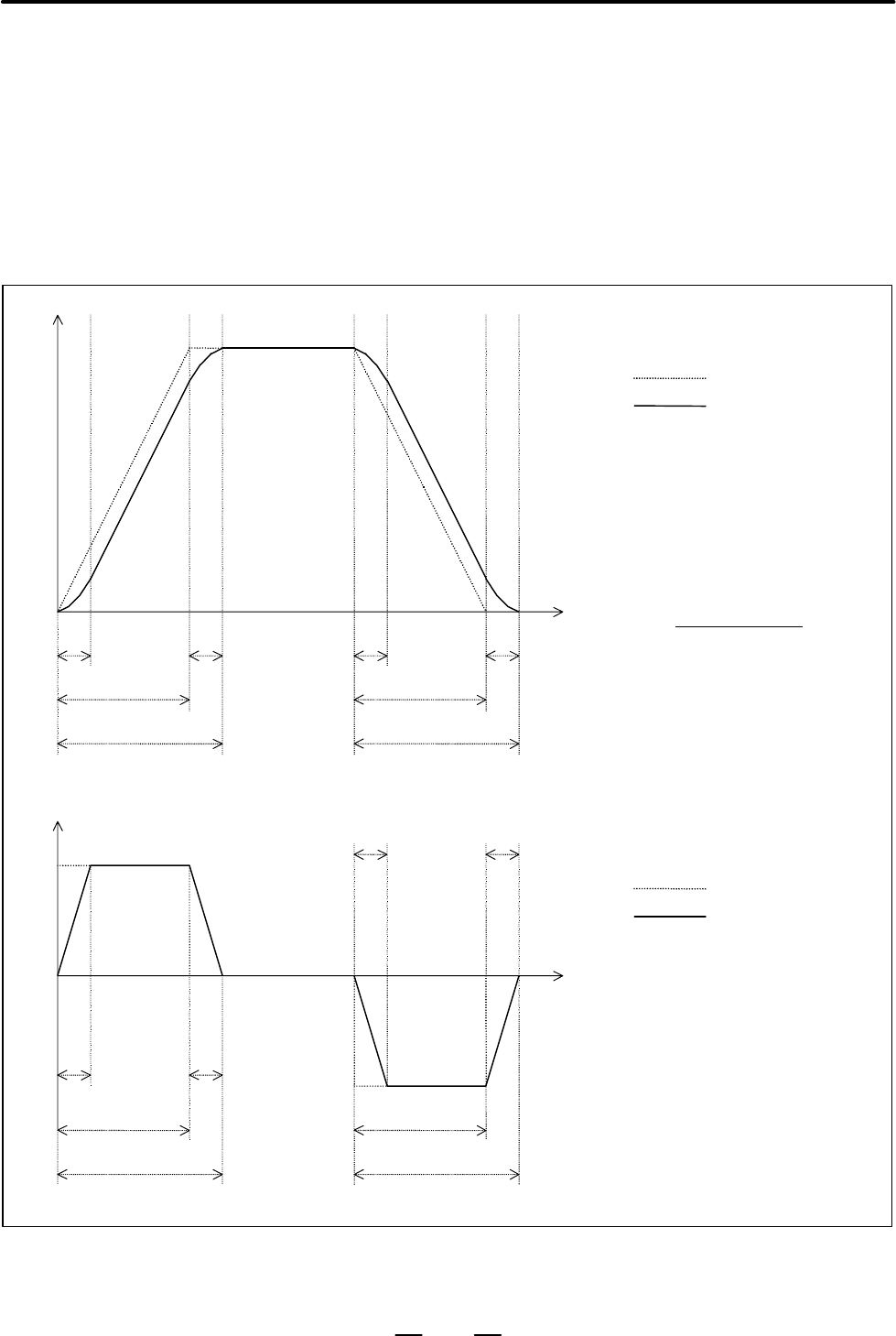

Time

Acceleration

tbtb

ta ta

tc tc

tbtbtbtb

tata

tctc

Feedrate

Time

Linear acceleration/

deceleration

Bell–shaped acceleration

deceleration

ta Depends on the linear acceleration.

tb Time constant for bell–shaped

acceleration/deceleration

tc Bell–shaped acceleration/

deceleration time

tc = ta + tb

ta is not constant and depends

on the specified feedrate.

ta =

Specified feedrate

Linear acceleration

tb is constant.

tc = ta + tb

12.

Linear acceleration/

deceleration

Bell–shaped acceleration

deceleration

ta Depends on the linear acceleration.

tb Time constant for bell–shaped

acceleration/deceleration

tc Bell–shaped acceleration/

deceleration time

D Look–ahead bell–shaped

acceleration/deceleration

before interpolation
