OPERATION12. GRAPHICS FUNCTION

B–64124EN/01

728

Specify the intensity of the drawing screen when performing drawing on

the monochrome, and the color of the drawing screen when performing

drawing on the color screen. The relationship between the setting,

intensity, and color is as shown below:

However, when the plane view is displayed on the monochrome. The

brighter surface, whichever is specified by P or Q becomes the top surface.

Setting value Intensity Color

0 Maximum brightness White

1 Red

Dark

Green

↓

Yellow

Light

Blue

5 Purple

6 Light blue

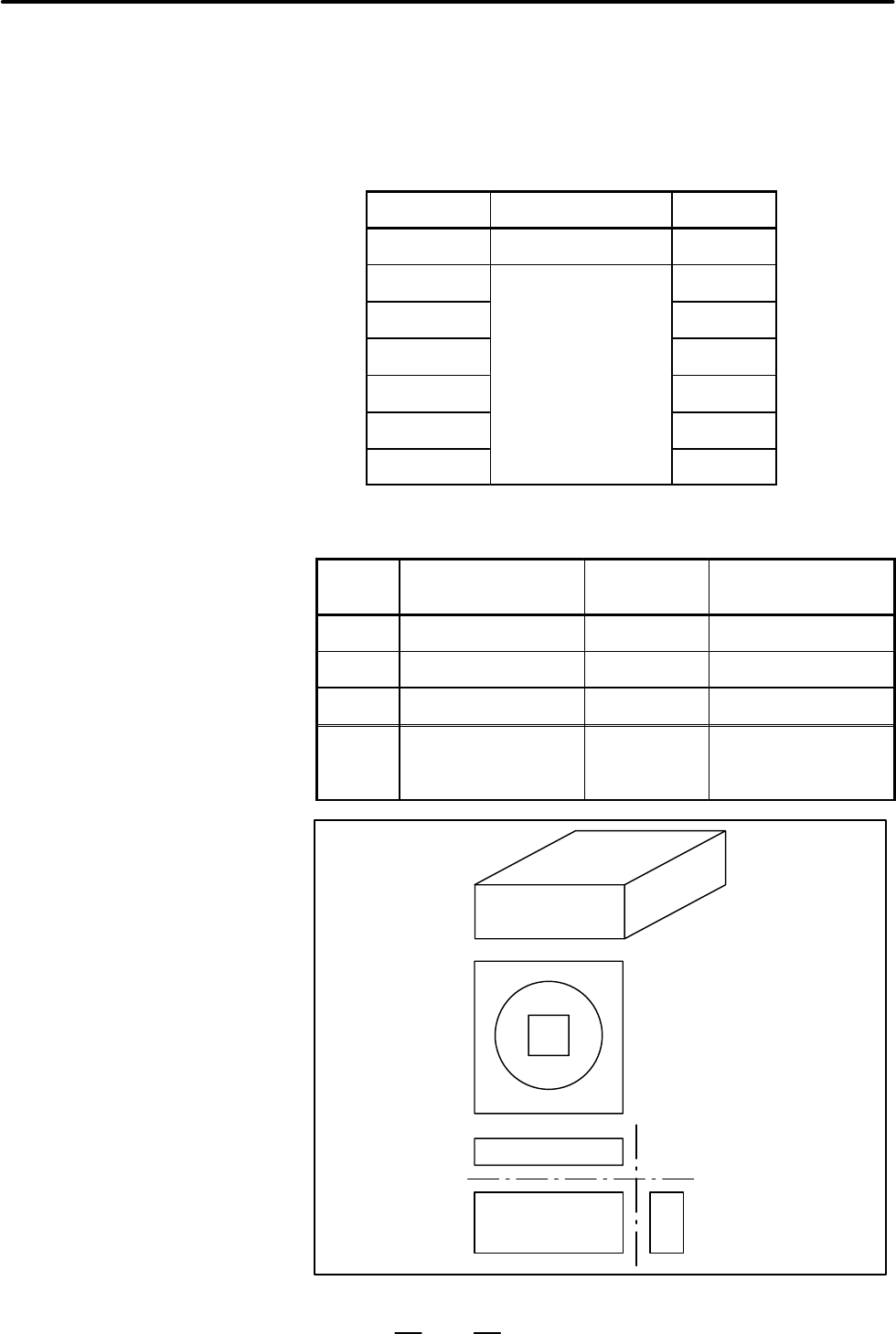

The relationship between the display address, surface, and line on the

machined figure view is as shown below:

Address

Oblique projection

view

Plane view Triplane view

P Upper surface Upper surface Upper/lower surface

Q Side surface Middle surface Left/right surface

R Ridge Ridge Ridge

Remarks The intensity/color of

front surface is

between P and Q

Lower surface

is blank

The intensity/color of

plane view is between

P and Q

P+Q

Blank

P+Q

Oblique projection view

Plane view

Triplan view
