OPERATION

B–64124EN/01

12. GRAPHICS FUNCTION

727

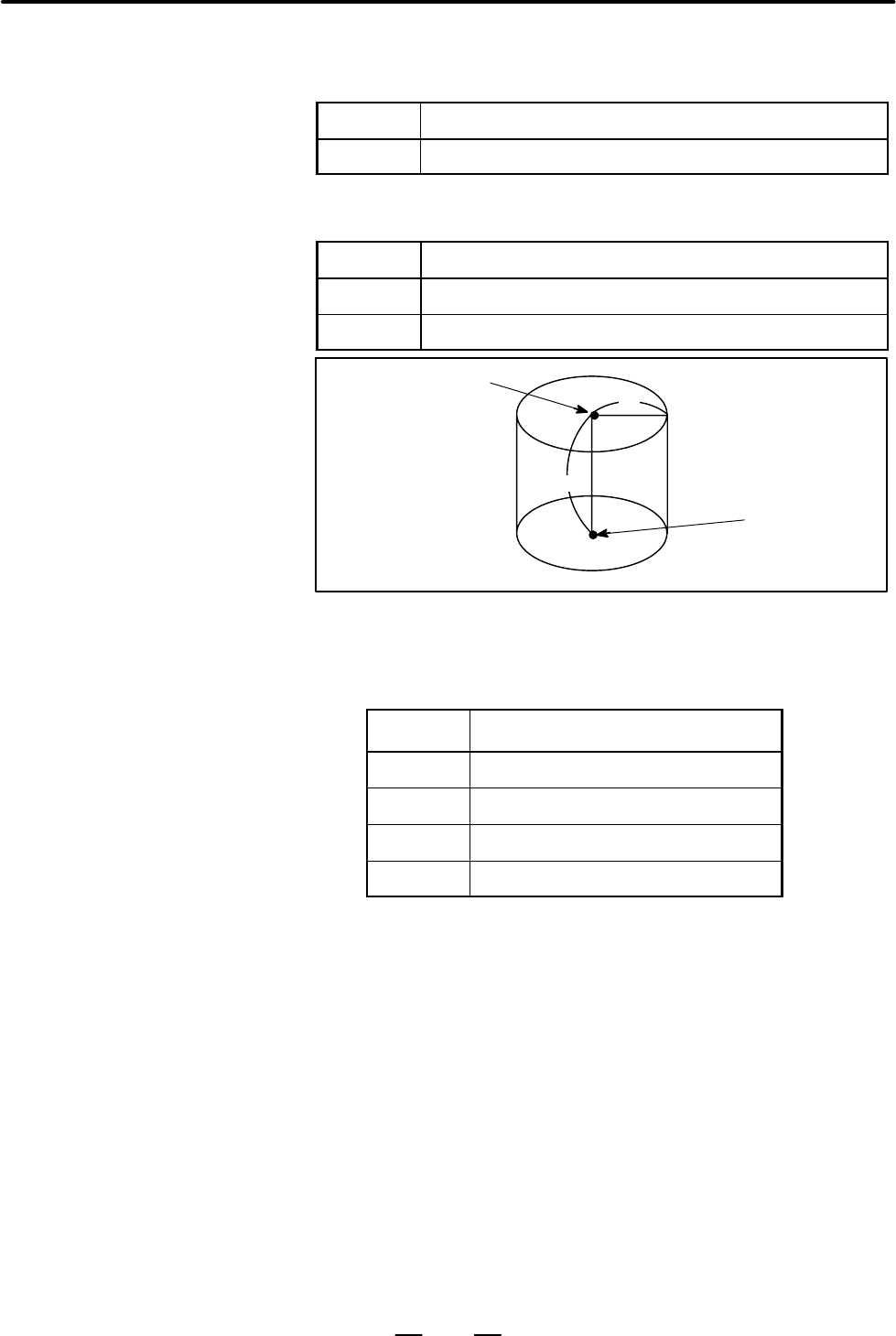

Set the machining direction of tools.

P Machining direction of tools

0,1 Parallel to the Z–axis (perform machining from the + direction)

Set the dimensions of tool. The relationship between the displayed

address and setting value is as shown below:

Address Setting numerics

R Radius of tool

K Distance from the program point to tool tip (normally 0)

Program point

Tip of the tool

The relationship between graphic method and direction and setting value

is as shown below:

P Graphic method and direction

0, 4 Oblique projection view (+ X–axis)

1, 5 Oblique projection view (+ Y–axis)

2, 6 Oblique projection view (– X–axis)

3, 7 Oblique projection view (–Y–axis)

This setting value can also be incremented or decremented by the soft

keys

[+ROT] or [– ROT]. In this case, if the setting value exceeds 7, it

returns to 0. If it is smaller than 0, it becomes 7.

Direction of the vertical axis is fixed in Z–axis.

D TOOL FORM

♦ Machining tool

orientation (P)

♦ Dimensions of tools

(R,K)

D PROJECTION

♦ Graphics method

and direction (P)

♦ VERTICAL AXIS (R)
