19. HIGH SPEED CUTTING

FUNCTIONS

389

tc = ta + tb

The value of ta is not constant and

depends on the rapid traverse rate

and the time constant of the rapid

traverse rate for the specified axis.

The value of tb depends on the axis.

tbtbtbtb

tata

tctc

Feedrate

Time

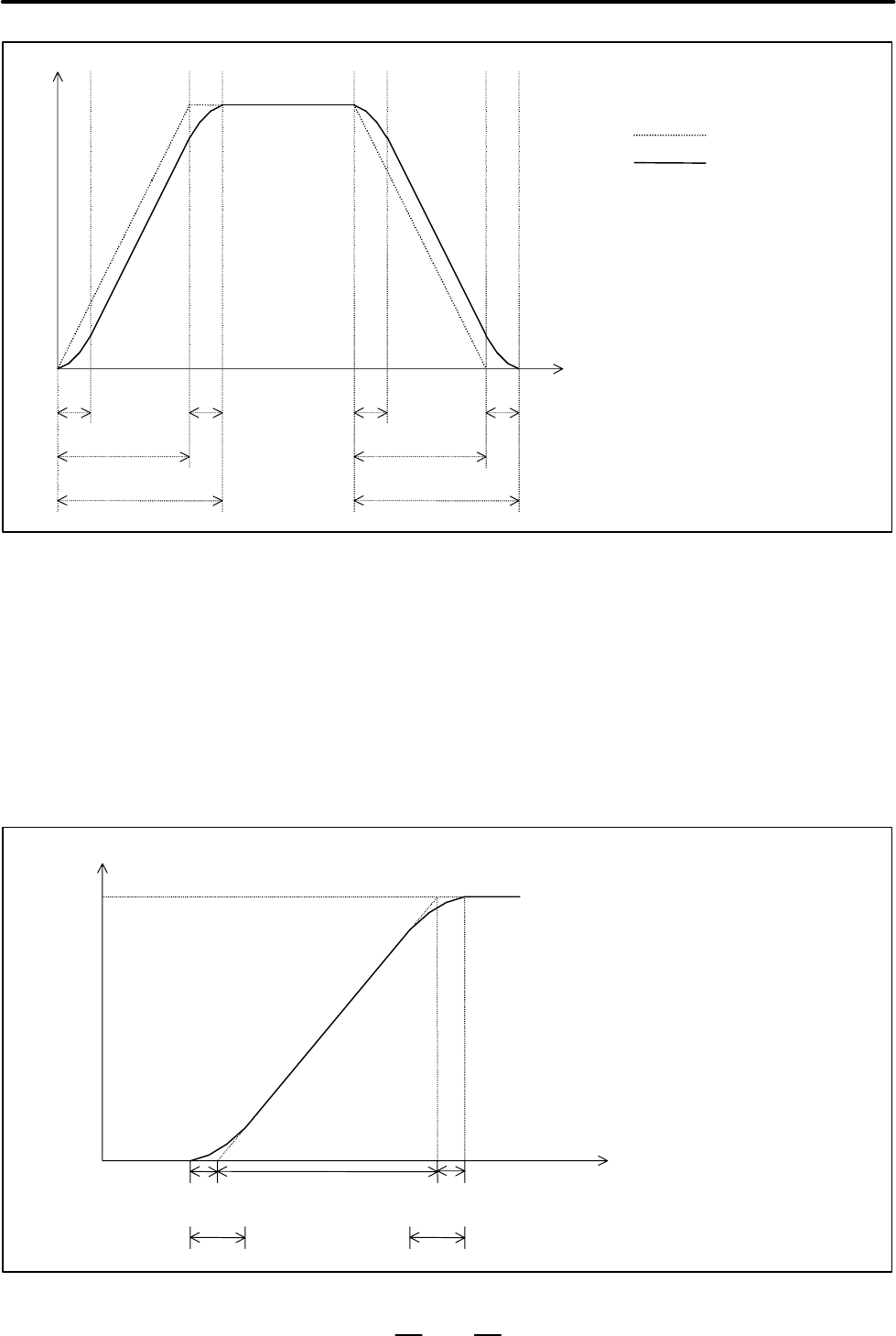

Linear acceleration/

deceleration

Bell–shaped acceleration/

deceleration

ta Depends on the linear acceleration.

tb Time constant for bell–shaped

acceleration/deceleration

tc Bell–shaped acceleration/

deceleration time

If the feedrate during movement is F, the acceleration for linear

acceleration/deceleration is A, the time constant for bell–shaped

acceleration/deceleration is T, the time required for acceleration/

deceleration can be obtained as follows:

Time required for acceleration/deceleration

= F/A (linear acceleration/deceleration)

= F/A+T (bell–shaped acceleration/deceleration)

Feedrate

Time

T/2T/2

F/A

F/A : Time required for linear acceleration

T : Time required for rounding the corner
