PROGRAMMING

19. HIGH SPEED CUTTING

FUNCTIONS

B–64124EN/01

398

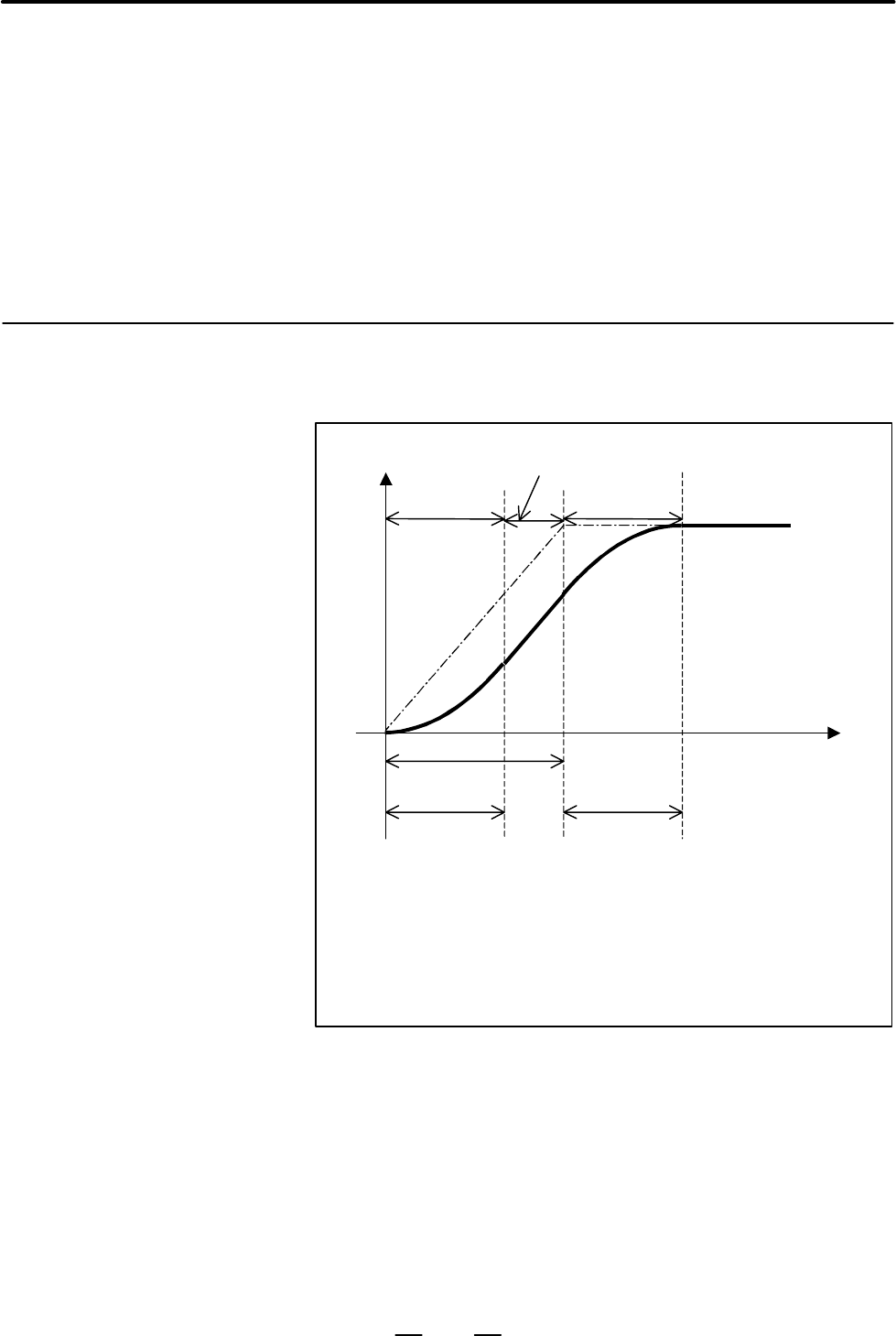

In Look–ahead bell–shaped acceleration/deceleration before

interpolation, the speed during acceleration/deceleration is as shown in

the figure below.

Specified

speed

Speed

Non–linear

acceleration/deceleration

Non–linear

acceleration/deceleration

Linear

acceleration/deceleration

T2 T2

Time

T1: Time determined from the specified speed and the specified acceleration

Specified acceleration:

In case of AI contour control

Parameter No.1770/Parameter No.1771

T2: Acceleration change time

In case of AICC : Parameter No.1772

Fig.19.4 (a)

The time T1, shown above, varies with the specified speed. If the

specified speed is low, the speed will be as shown below, causing linear

acceleration/deceleration not reaching the specified acceleration.

19.4

LOOK–AHEAD

BELL–SHAPED

ACCELERATION/DEC

ELERATION BEFORE

INTERPOLATION

TIME CONSTANT

CHANGE FUNCTION

General
