PROGRAMMING

B–64124EN/01

19. HIGH SPEED CUTTING

FUNCTIONS

399

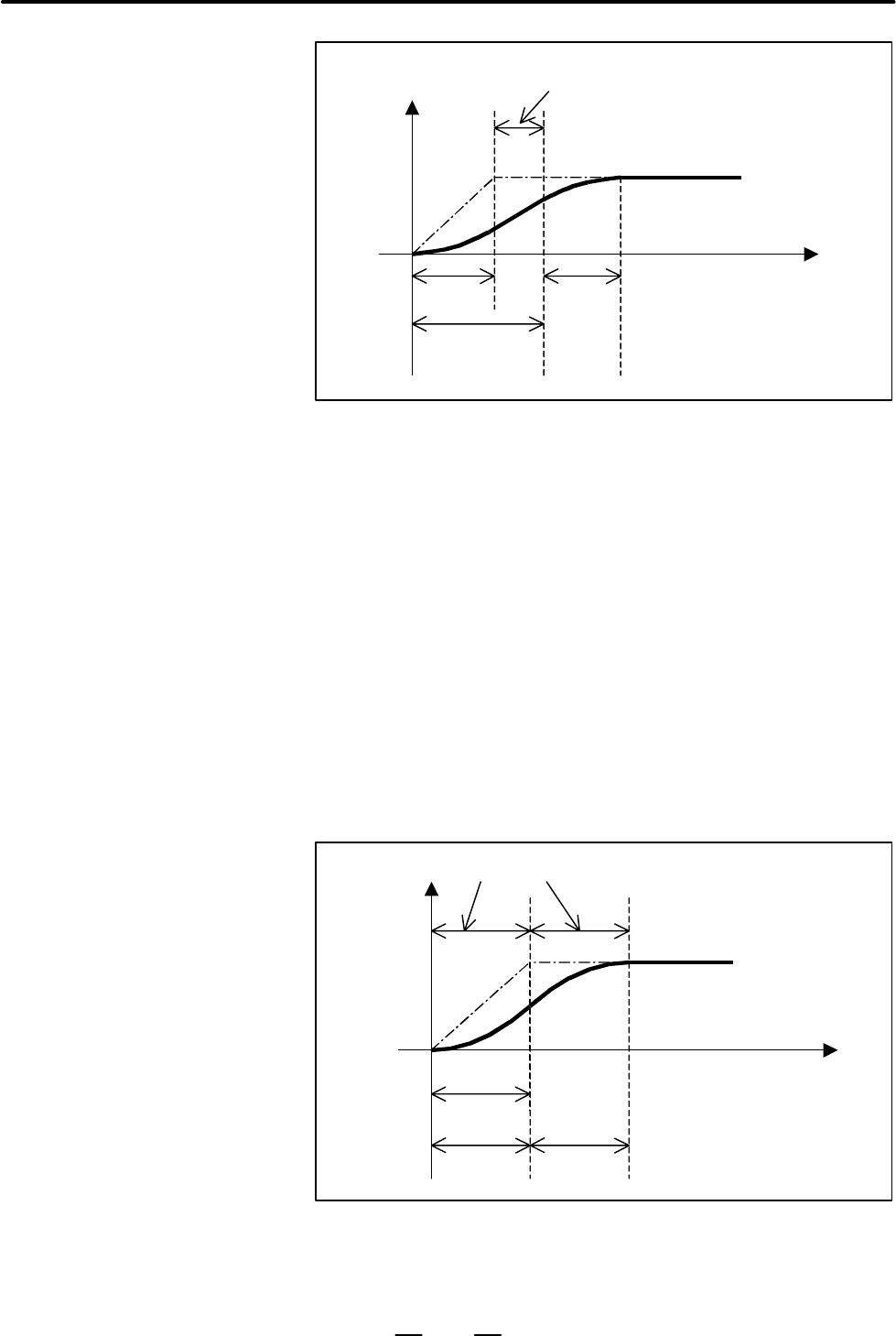

Linear acceleration/deceleration not reaching specified acceleration/deceleration

Specified

speed

Speed

Time

T1T1

Fig.19.4 (b)

If linear acceleration/deceleration not reaching the specified acceleration

occurs in AI contour control mode as shown above, this function shortens

the acceleration/deceleration time by changing the internal acceleration

for acceleration/deceleration before interpolation and the bell–shaped

time constant in order to generate an acceleration/deceleration pattern as

close as possible to that permits optimum bell–shaped

acceleration/deceleration before interpolation for the specified speed.

Optimum bell–shaped acceleration/deceleration before interpolation, as

mentioned here, refers to bell–shaped acceleration/deceleration before

interpolation in which

if T2 > T1, T1 and T2 are changed to T1’ and T2’ as shown in the figure

below so that linear acceleration/deceleration not reaching the specified

acceleration/deceleration does not occur.

This function becomes effective for the Acceleration /deceleration before

look–ahead interpolation in AI contour control mode.

Non–linear acceleration/deceleration

Specified speed

Speed

T1’

T2’ T2’

Time

Fig.19.4 (c)
