PROGRAMMING
B–64124EN/01
4. INTERPOLATION FUNCTIONS
39

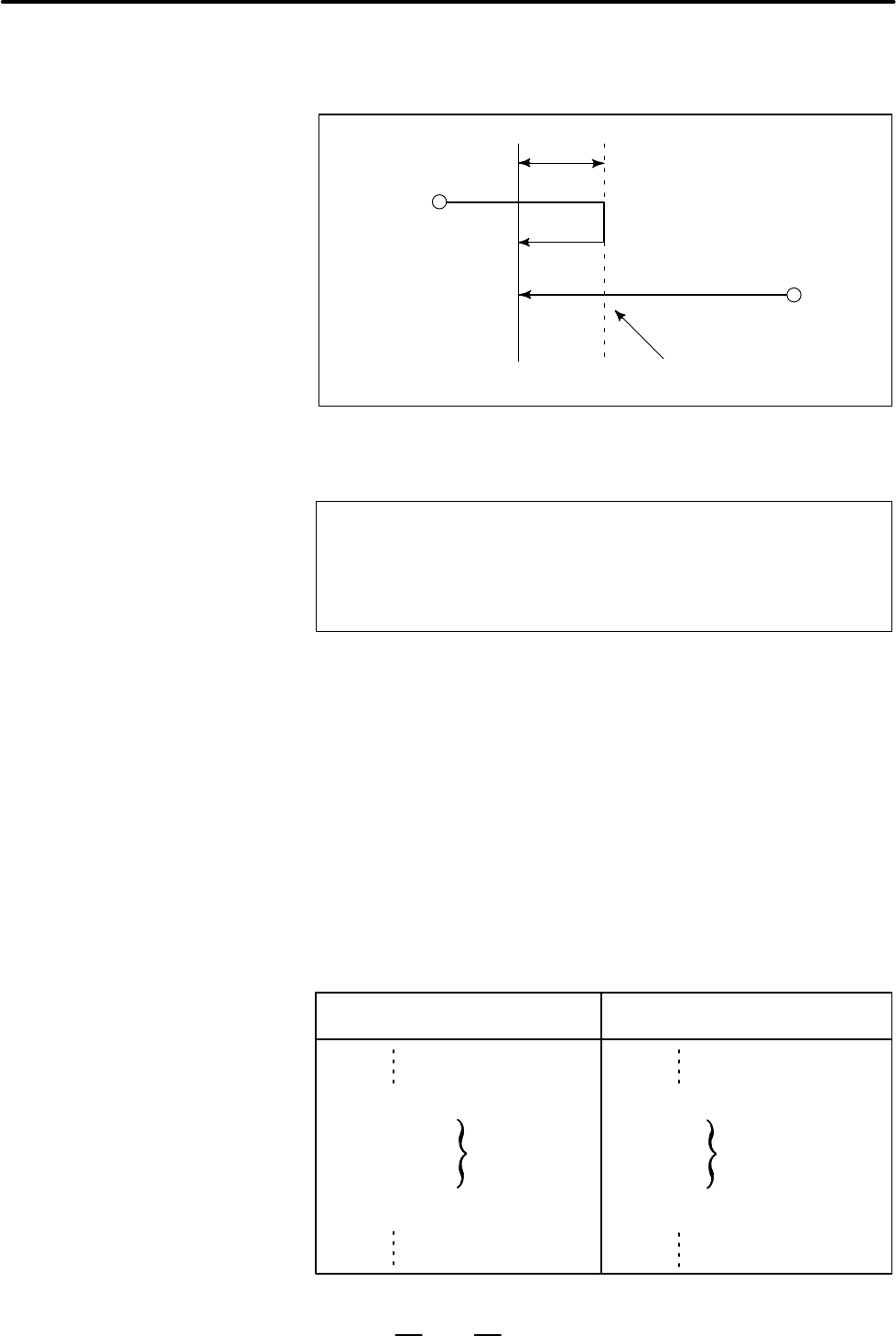

For accurate positioning without play of the machine (backlash), final
positioning from one direction is available.
Start position
Temporary stop
End position
Overrun
Start position
_ : For an absolute command, the coordinates of an end
position, and for an incremental commnad, the distance
the tool moves.
G60 _;
IP
IP
An overrun and a positioning direction are set by the parameter (No.
5440). Even when a commanded positioning direction coincides with
that set by the parameter, the tool stops once before the end point.
G60, which is an one–shot G–code, can be used as a modal G–code in
group 01 by setting 1 to the parameter (No. 5431 bit 0 MDL).
This setting can eliminate specifying a G60 command for every block.
Other specifications are the same as those for an one–shot G60 command.
When an one–shot G code is sepcified in the single direction positioning
mode, the one–shot G command is effective like G codes in group 01.
When one–shot
G60 commands are used.
G90;
G60 X0Y0;
G60 X100;
G60 Y100;
G04 X10;
G00 X0Y0;
When modal
G60 command is used.
G90G60;
X0Y0;
X100;
Y100;
G04X10;
G00X0Y0;
Single direction
positioning
Single direction
positioning
Single direction
positioning
mode cancel
Single direction
positioning mode start
4.2
SINGLE DIRECTION
POSITIONING (G60)
Format
Explanations
Examples
