B-63322EN/03 NC FUNCTIONS 7.COORDINATE SYSTEM

- 95 -

7.3 LOCAL COORDINATE SYSTEM

With G52 commanded, the local coordinate system with the

commanded position as zero point can be set. Once the local

coordinate system is set, values specified in subsequent move

commands are regarded as coordinate values on that coordinate system.

Coordinates once set is valid till a new G52 is commanded.

This is used when, for example, programming of a part of the

workpiece becomes easier if there is a zero point besides the workpiece

coordinates’ zero point.

Format

G52 IP_; Setting the local coordinate system

G52 IP 0; Canceling of the local coordinate system

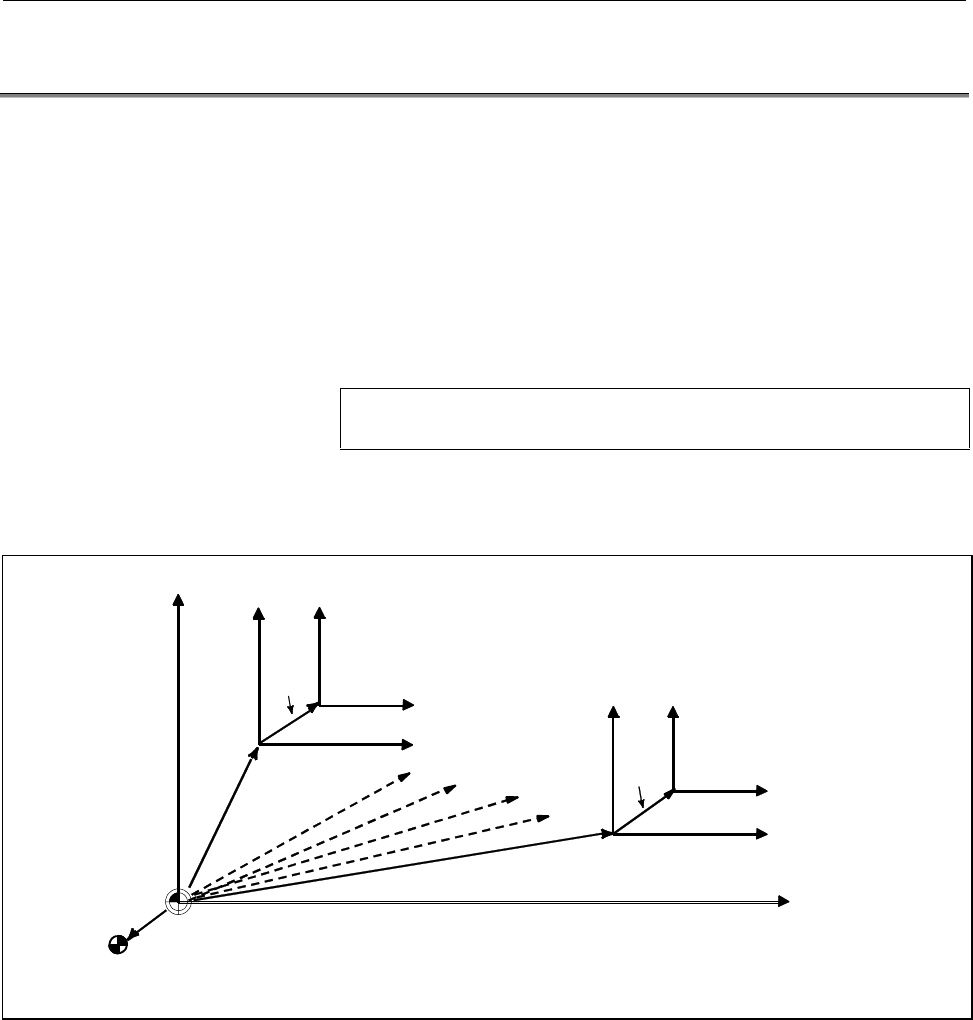

(Local coordinate system)

(Machine coordinate system)

Machine coordinate system origin

Reference point

(G59 : Workpiece coordinate system 6)

(G54 : Workpiece coordinate system 1)

G55

G56

G57

G58

IP_
