8.COORDINATE VALUE AND DIMENSION NC FUNCTIONS B-63322EN/03

- 106 -

8.2 POLAR COORDINATE COMMAND (G15, G16)

The end point coordinate value can be input in polar coordinates

(radius and angle). Use G15, G16 for polar coordinates command.

Format

G16; Polar coordinate system command cancel

G15; Polar coordinate system command

Plane selection of the polar coordinates is done same as plane selection

in circular interpolation, using G17, G18, G19.

Command radius in the first axis of the selected plane, and angle in the

second axis. For example, when the X-Y plane is selected, command

radius with address X, and angle with address Y. The plus direction of

the angle is counter clockwise direction of the selected plane first axis

+ direction, and the minus direction the clockwise direction.

Both radius and angle can be commanded in either absolute or

incremental command (G90, G91).

The center of the polar coordinates is the zero point of the workpiece

coordinates.

(However, if the local coordinates are set, it is the zero point of the

local coordinates.)

When the radius is specified with an incremental command, the center

of the polar coordinates is the current position.

Examples

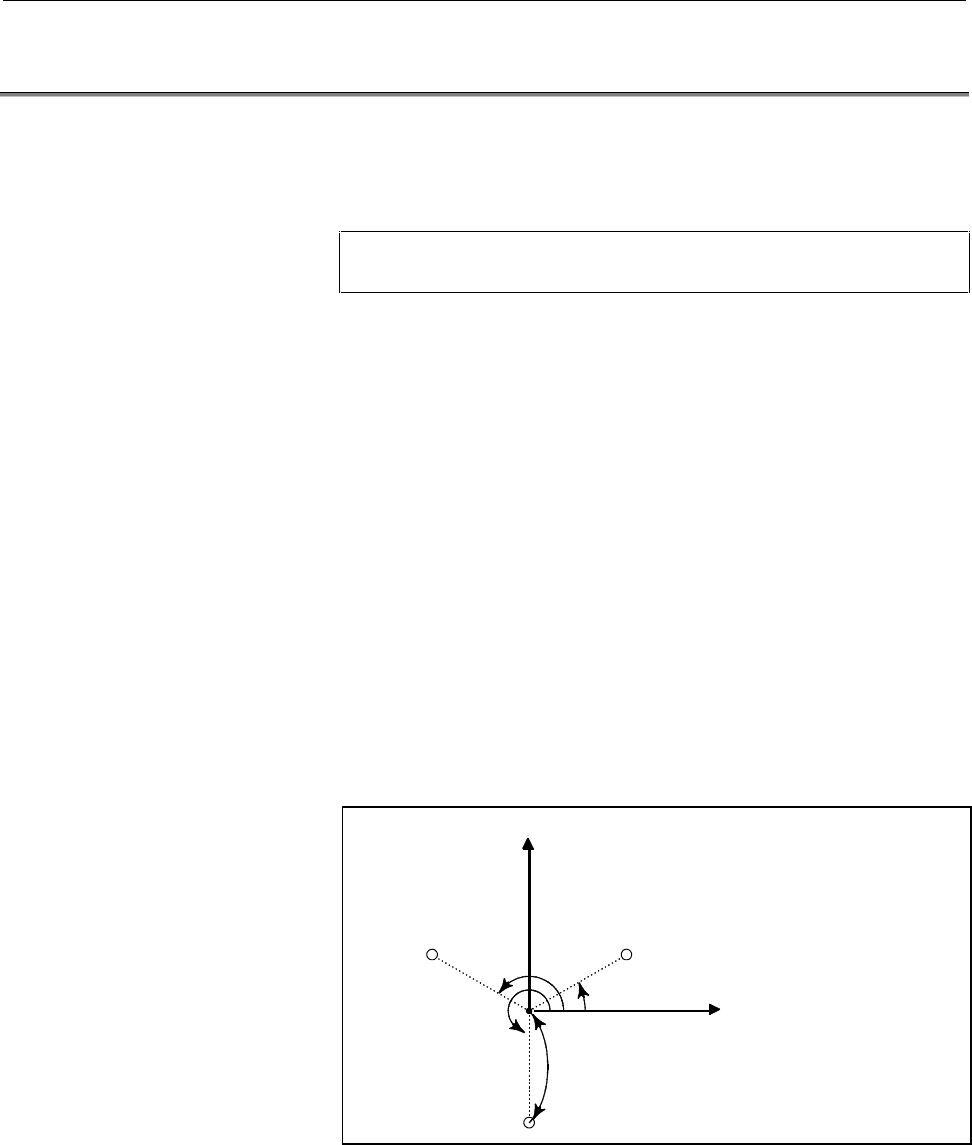

Bolt hole cycle

N1 G17 G90 G16 ;

Specifying the polar coordinate command and selecting the XY

plane

Setting the zero point of the workpiece coordinate system as the

origin of the polar coordinate system

N2 G81 X100.0 Y30.0 Z-20.0 R-5.0 F200.0 ;

Specifying a distance of 100 mm and an angle of 30 degrees

- The zero point of the workpiece

coordinate system is set as the

origin of the polar coordinate

system.

- The XY plane is selected.

150°

30°

100mm

270°
