B-63322EN/03 NC FUNCTIONS 25.DISPLAY AND SETTING

- 311 -

25.8 FLOPPY CASSETTE DIRECTRY DISPLAY

The file in the FANUC Floppy Cassette, FANUC FA Card, FANUC

Handy File, and FANUC PROGRAM FILE Mate connected to the

serial interface (RS-232C or RS-422) is displayed.

The display includes file numbers, names, sizes (in bytes), and volume

numbers.

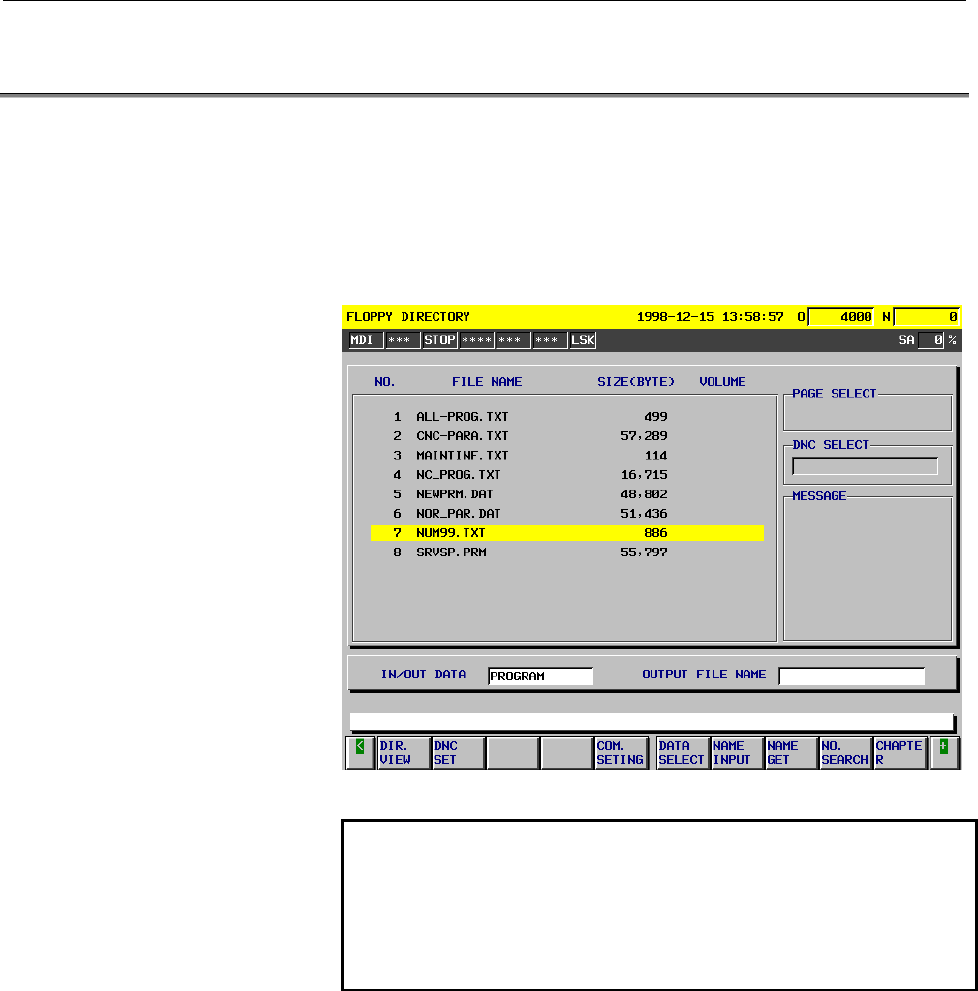

Fig. 25.8 Floppy directory screen

NOTE

Volume number :

The term "multi-volume" pertains to saving a single file

to two or more floppy disks. The volume numbers

indicate the sequence of the floppy disks to which a

multi-volume file is saved.
