14.TOOL COMPENSATION FUNCTION NC FUNCTIONS B-63322EN/03

- 192 -

14.12 TOOL CENTER POINT CONTROL

On a five-axis machine having two rotation axes that turn a tool, tool

length compensation can be performed momentarily even in the middle

of a block.

Tool length compensation is classified into two types according to the

programming method. In the explanation of this function, the two

rotation axes are assumed to be the B- and C-axes.

(1) Type 1

The rotation axis position (B, C) is specified.

The CNC applies tool length compensation equal to the

compensation amount along the tool axis whose orientation is

calculated from the specified rotation axis position. This means

that compensation is performed by moving the three linear axes.

(2) Type 2

The tool axis orientation (I, J, K) is specified.

The CNC controls the two rotation axes so that the tool is oriented

as specified, and performs tool length compensation along the tool

axis by the compensation amount. This means that compensation is

performed by moving the two rotation axes and three linear axes.

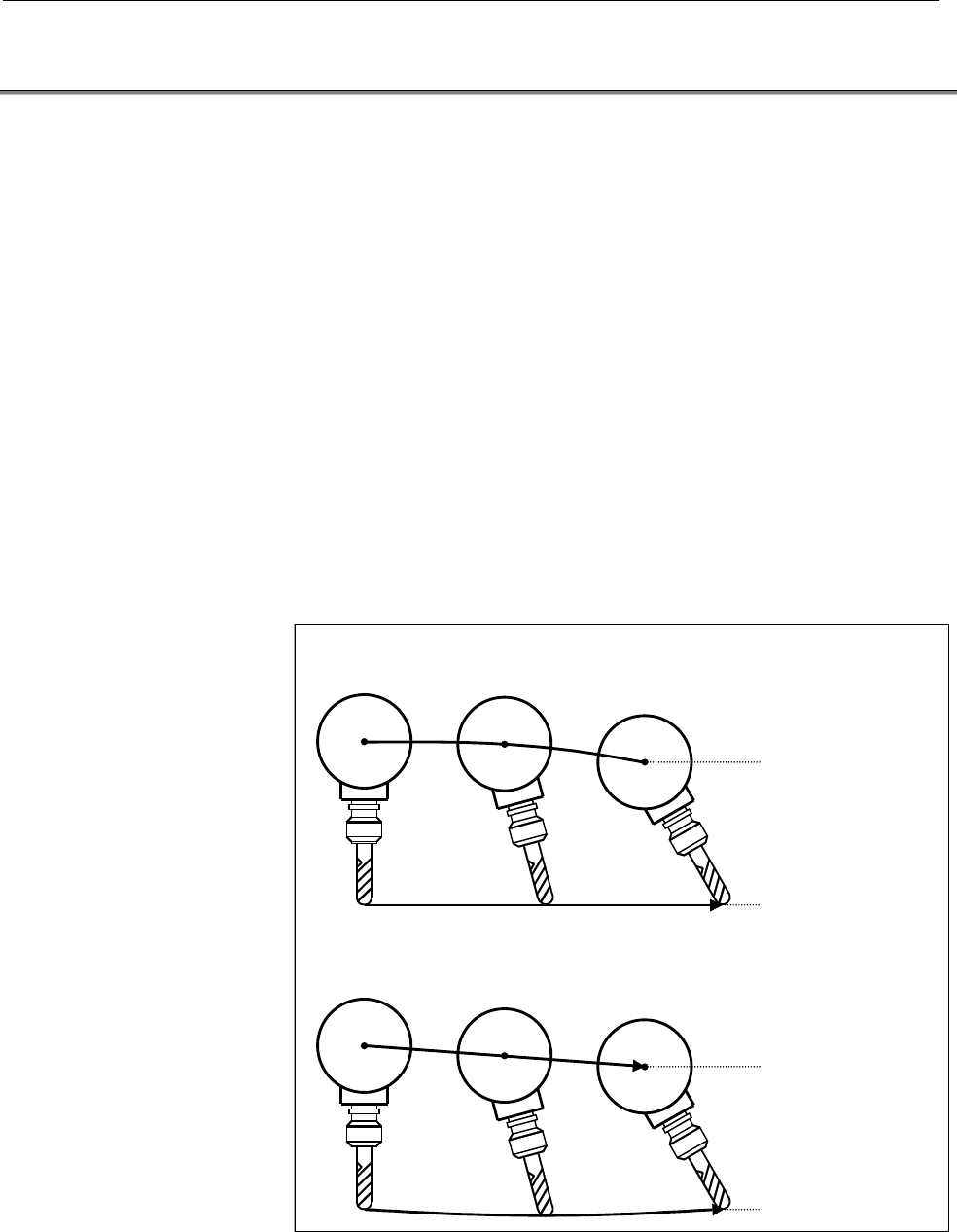

Tool center point control (type 1) differs from tool length compensation

along the tool axis as shown below:

Tool center point control (type 1)

The path of the tool tip center is linear as specified.

Tool length compensation along the tool axis

The path of the tool tip center is not linear.

Tool pivot point

= interpolation path

(not linear)

Tool tip center path

(linear)

Tool pivot point

= interpolation path

(linear)

Tool tip center path

(not linear)
