25.DISPLAY AND SETTING NC FUNCTIONS B-63322EN/03

- 312 -

25.9 GRAPHIC FUNCTION

The graphic function consists of tool path drawing (for the tool path of

the program currently being used for machining) and background

drawing (for the tool path of a program without performing

machining).

25.9.1 Tool Path Drawing

The tool path of the program currently being used for machining can be

drawn. This allows checking of the progress of machining and the

tool’s current position.

The following functions are supported:

- Display the current position of the tool in the workpiece

coordinate system.

- Set any graphic coordinate system.

- Draw rapid traverse and cutting feed in different colors.

- Display the F, S, and T values of the program whose tool path is

currently drawn, as well as the machining time.

- Enlarge/reduce the drawing.

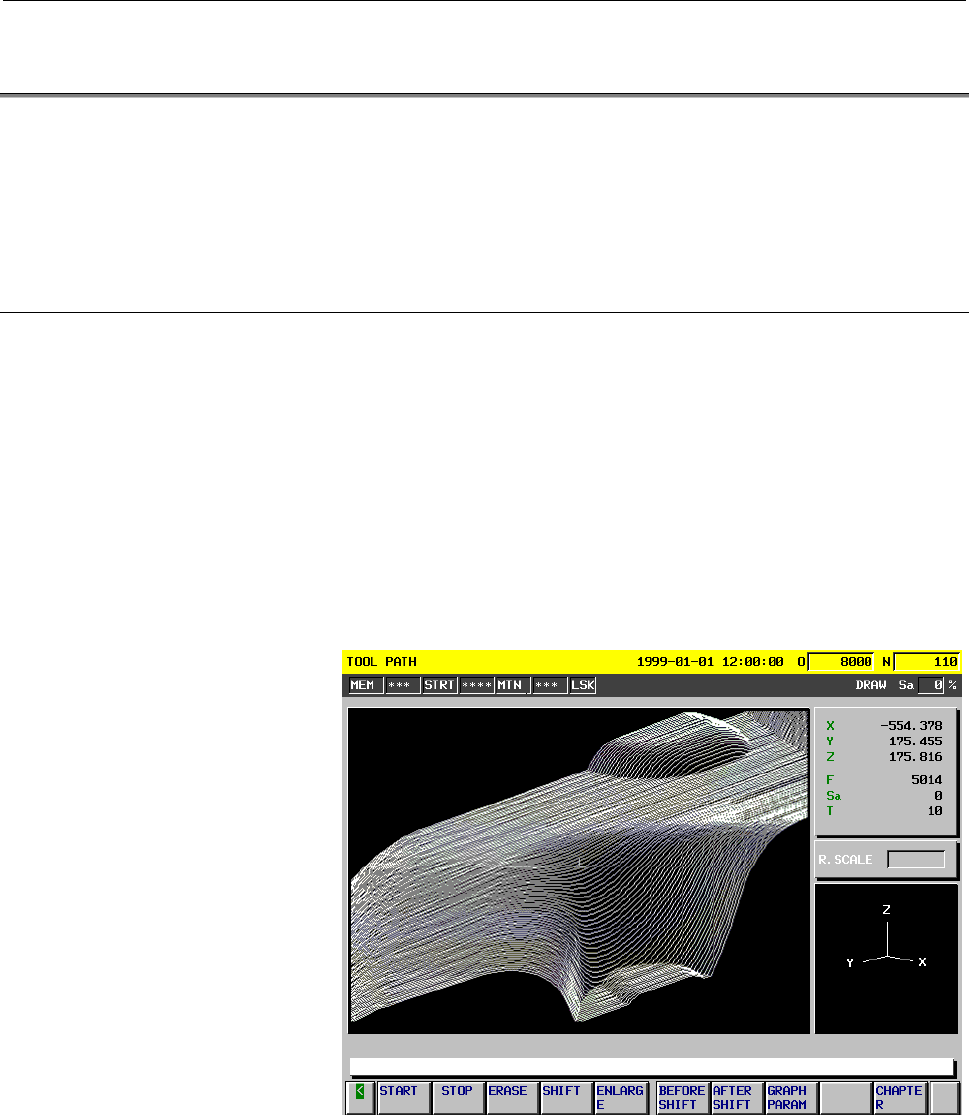

Fig. 25.9.1 Tool path drawing screen
