B-63322EN/03 NC FUNCTIONS 17.MEASUREMENT FUNCTIOM

- 225 -

17.1 SKIP FUNCTION (G31)

Linear interpolation can be commanded by specifying axial move

following the G31 command, like G01. If an external skip signal is

input during the execution of this command, execution of the command

is interrupted and the next block is executed.

Format

G31 IP_ ;

G31 : One-shot G code (If is effective only in the block in which

it is specified)

The coordinate values when the skip signal is turned on can be used in

a custom macro because they are stored in the custom macro system

variable #5061 to #5080, as follows:（In a system with more than 20

axes, #100151 through #100174 are used.）

#5061 1st axis coordinate value

#5062 2nd axis coordinate value

#5063 3rd axis coordinate value

#5080 20th axis coordinate value

As the skip function can be used when move amount is not clear, this

function can be used for:

- Constant feed in grinding machines

- Tool measurement with tactile sensor.

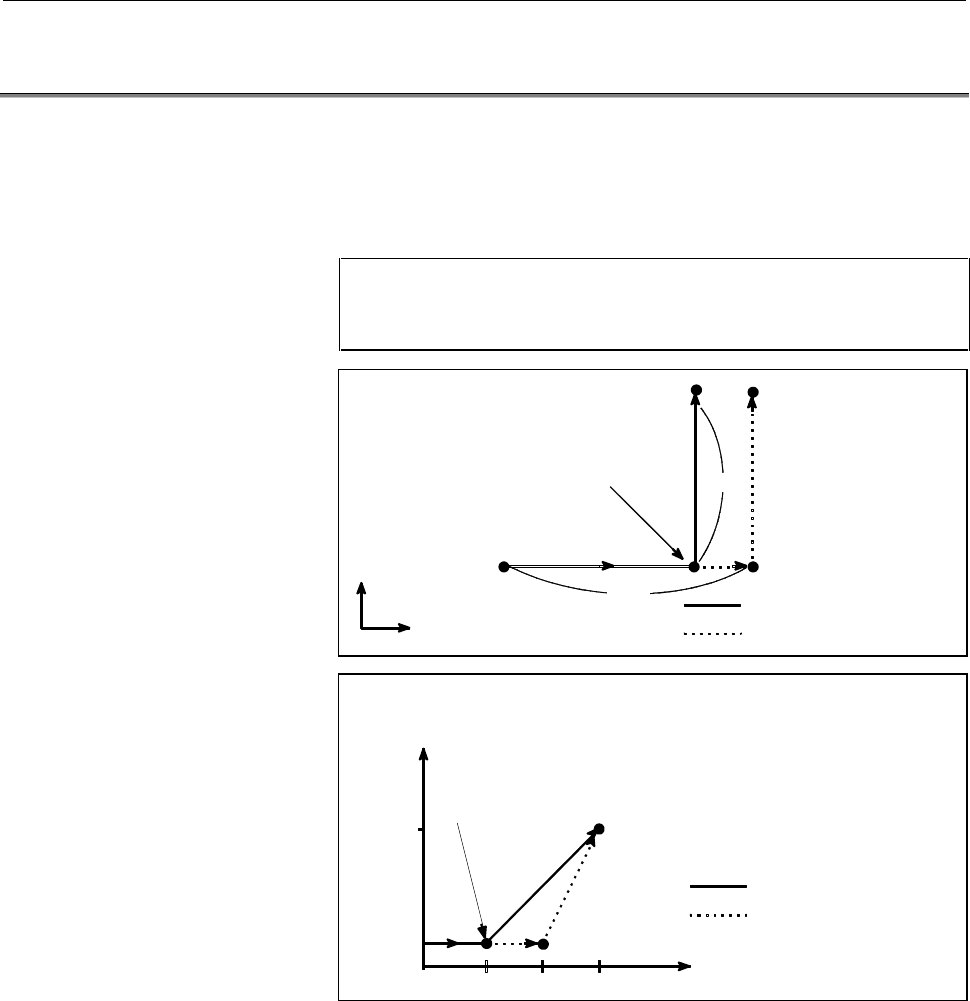

G31 G91 X100.0 F100;

Y50.0;

50.0

100.0

Skip signal is input here

Actual motion

Motion without skip signal

100 200 300

Actual motion

Motion without

Skip signal is input here

(300,100)

100

G31 G90 X200.0 F100;

X300.0 Y100.0;
