25.DISPLAY AND SETTING NC FUNCTIONS B-63322EN/03

- 332 -

25.19

HIGH-SPEED HIGH-PRECISION MACHINING SETTING SCREEN

The high-speed high-precision machining setting screen displays

parameters associated with high-speed high-precision machining.

This screen can be used to save and switch between three types of

parameter sets defining different finish levels.

This screen can also be used to set basic parameters for high-speed

high-precision machining easily with the automatic setting function

and automatic adjustment function.

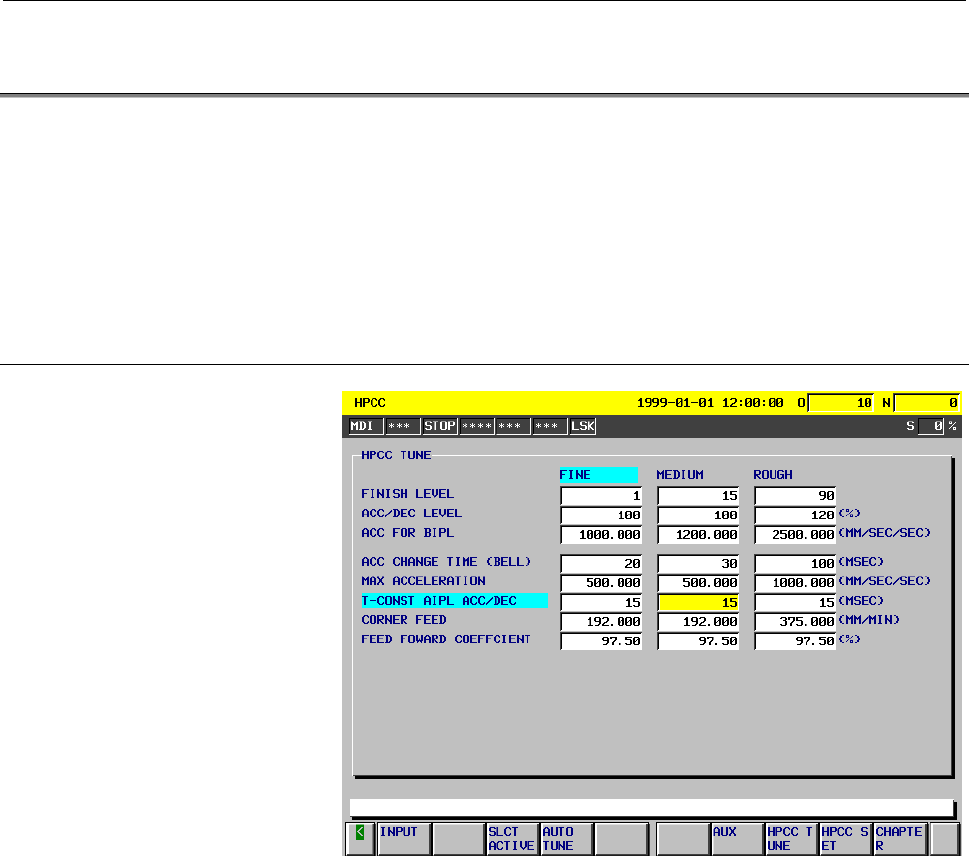

25.19.1 Adjustment Screen

Finish level (FINISH LEVEL)

This item specifies the finish level used for automatic adjustment

calculation. The units have no dimensions. When finish level 1 is

specified, a target precision of about 10 m is assumed for

calculation. When finish level 10 is specified, a target precision

of about 100 m is assumed for calculation. A value of between 1

and 100 can be set.

Acceleration/deceleration level (ACC/DEC LEVEL)

This item is used to make a fine adjustment of a set

acceleration/deceleration value. The value of this item functions

as an override value of a set acceleration/deceleration value. A

value from 1 to 200(%) can be set. When 0 is specified, 100% is

assumed.

Acceleration for acceleration/deceleration before interpolation

(ACC FOR BIPL)

This item specifies an allowable acceleration value for

acceleration/deceleration before interpolation on an axis-by-axis
