22.6.6 Tool Withdrawal and Return

These functions are used for replacing tools damaged retraction of

tools for confirming the cutting conditions, and recovering the tools

efficiently to restart the cutting.

Also, the escape operation can be performed with the tool retract signal

by previously setting the escape amount (position) with a program.

This can be used for retraction for detecting tool damage.

1 Input the tool retract signal during executing the automatic

operation.

Then, the automatic operation is halted and the escape operation

(retraction) is performed to the escape position commanded by the

program.

2 Input the tool retract signal to initiate the retract mode.

3 After that, switch the automatic mode to the manual mode to move

tools with manual operation such as the jog feed and handle feed.

A maximum of 10 points can be automatically memorized as

travel path.

4 Input the tool recovery signal to return the tool to the retraction

position in the opposite direction along the path moved by manual

operation automatically (recovery operation).

5 Perform the cycle start to return the tool to the position where the

tool retract signal was entered (repositioning).

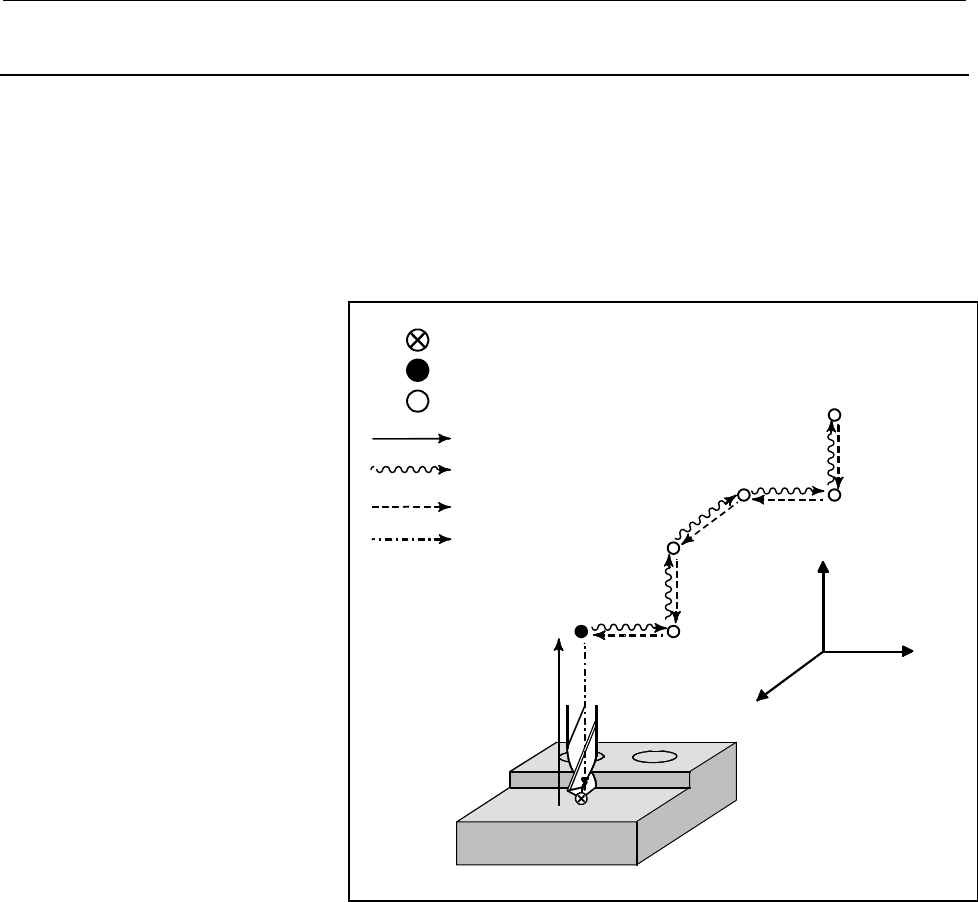

: Position where the TOOL WITHDRAW switch is turned on

: Programmed position

: Position to which the tool is retracted by manual operation

: Retraction path

: Manual operation (withdraw path)

: Return path

: Repositioning
