B-63322EN/03 NC FUNCTIONS 13.FUNCTIONS TO SIMPLIFY PROGRAMMING

- 145 -

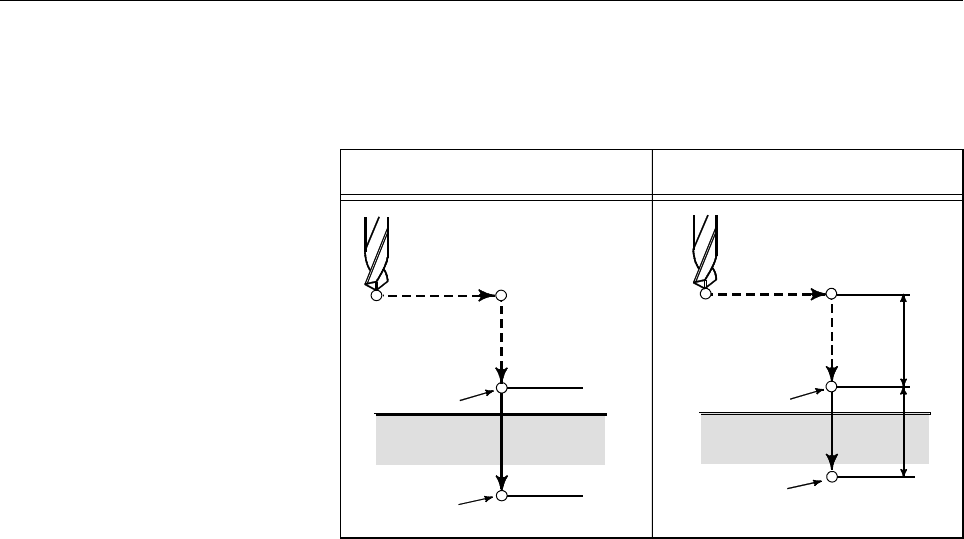

- Travel distance along the drilling axis G90/G91

The travel distance along the drilling axis varies for G90 and G91 as

follows :

Z=0

Point R

Point Z

G90 (Absolute Command)

G91 (Incremental Command)

Point R

Point Z

- Drilling mode

G73, G74, G76, and G81 to G89 are modal G codes and remain in

effect until canceled. When in effect, the current state is the drilling

mode.

Once drilling data is specified in the drilling mode, the data is retained

until modified or canceled.

Specify all necessary drilling data at the beginning of canned cycles;

when canned cycles are being performed, specify data modifications

only.

- Return point level G98/G99

When the tool reaches the bottom of a hole, the tool may be returned to

point R or to the initial level. These operations are specified with G98

and G99.

The following illustrates how the tool moves when G98 or G99 is

specified.

Generally, G99 is used for the first drilling operation and G98 is used

for the last drilling operation.

The initial level does not change even when drilling is performed in the

G99 mode.
