15i/150i-Model A Descriptions Page 207

Descriptions

Page of 422

/ 422

14.TOOL COMPENSATION FUNCTION NC FUNCTIONS B-63322EN/03

- 190 -

14.11 THREE-DIMENSIONAL CUTTER COMPENSATION

The three-dimensional cutter compensation function is used with

machines that can control the direction of tool axis movement by using

rotation axes (such as the B- and C-axes). This function performs cutter

compensation by calculating a tool vector from the positions of the

rotation axes, then calculating a compensation vector in a plane

(compensation plane) that is perpendicular to the tool vector.

There are two types of cutter compensation: Tool side compensation and

leading edge compensation. Which is used depends on the type of

machining.

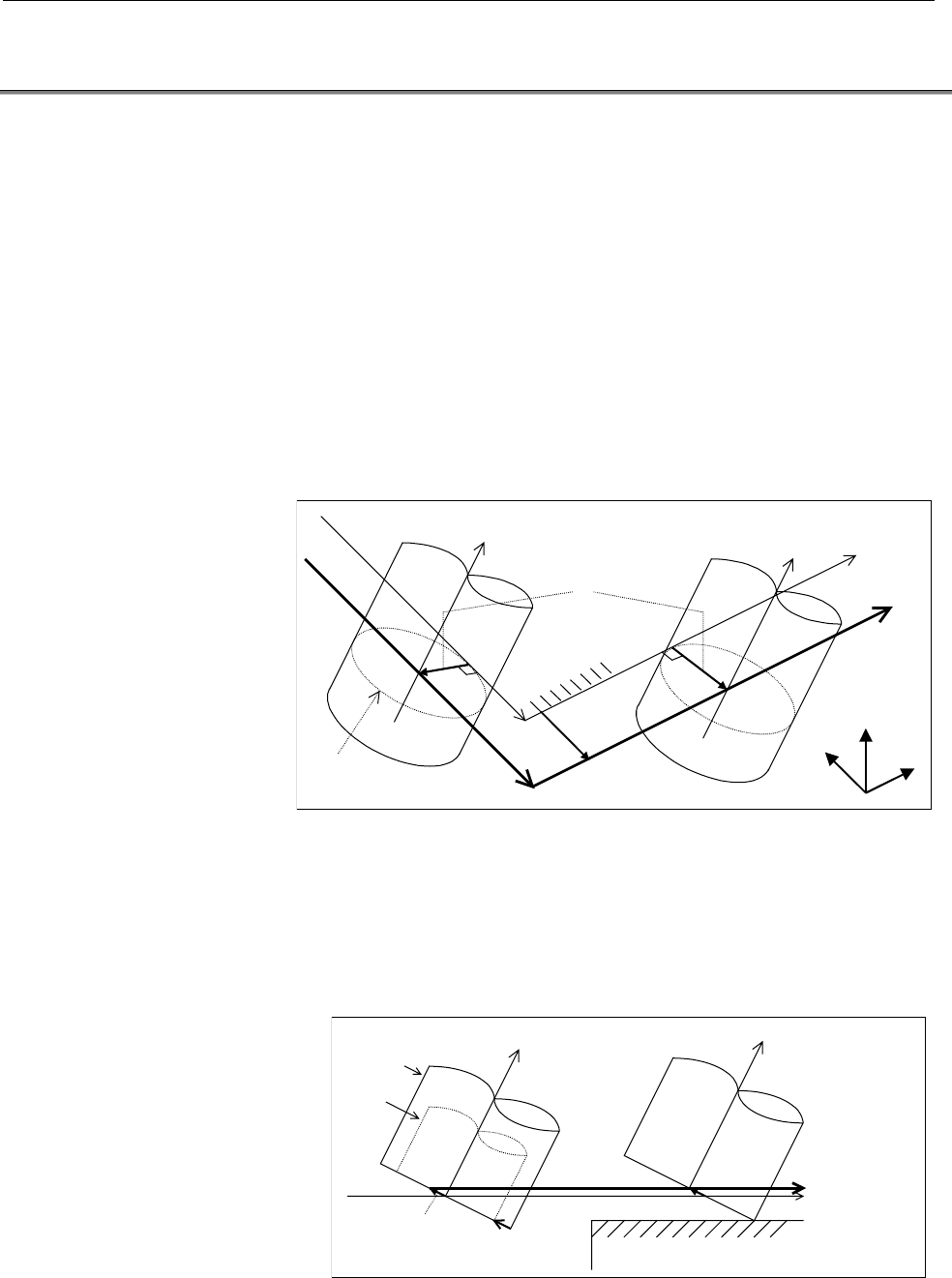

Tool Side Compensation

Tool side compensation is a type of cutter compensation that performs

three-dimensional compensation on a plane (compensation plane)

perpendicular to a tool direction vector.

Compensation

plane

Tool vector

Cutter

compensation amount

Programmed tool path

(before compensation)

Cutter compensation

vector

Tool center

path(after

compensation)

Leading Edge Offset

Leading edge offset is a type of cutter compensation that is used when a

workpiece is machined with the edge of a tool. A tool is automatically

shifted by a specified cutter compensation value on the line where a

plane formed by a tool direction vector and tool movement direction

intersects a plane perpendicular to the tool axis direction.

Tool used

Reference

tool

Cutter compensation

vector

Cutter compensation

amount

Tool center path

(after

compensation)

Programmed

tool path

Tool vector
