B-63322EN/03 NC FUNCTIONS 19.FUNCTIONS FOR HIGH-SPEED CUTTING

- 251 -

19.7.2 Binary Input Operation Function

Once a single "G05;" block is specified in normal NC command format,

operation can be performed by specifying desired move data and

auxiliary functions in the following format.

By specifying zero for all of the travel distances along all axes and the

auxiliary function, the system subsequently accepts commands in

normal NC command format again..

- Binary input operation on: G05;

- Binary input operation off: Zero specified for all of the travel

distances along all axes and the auxiliary function

- Data format for binary input operation

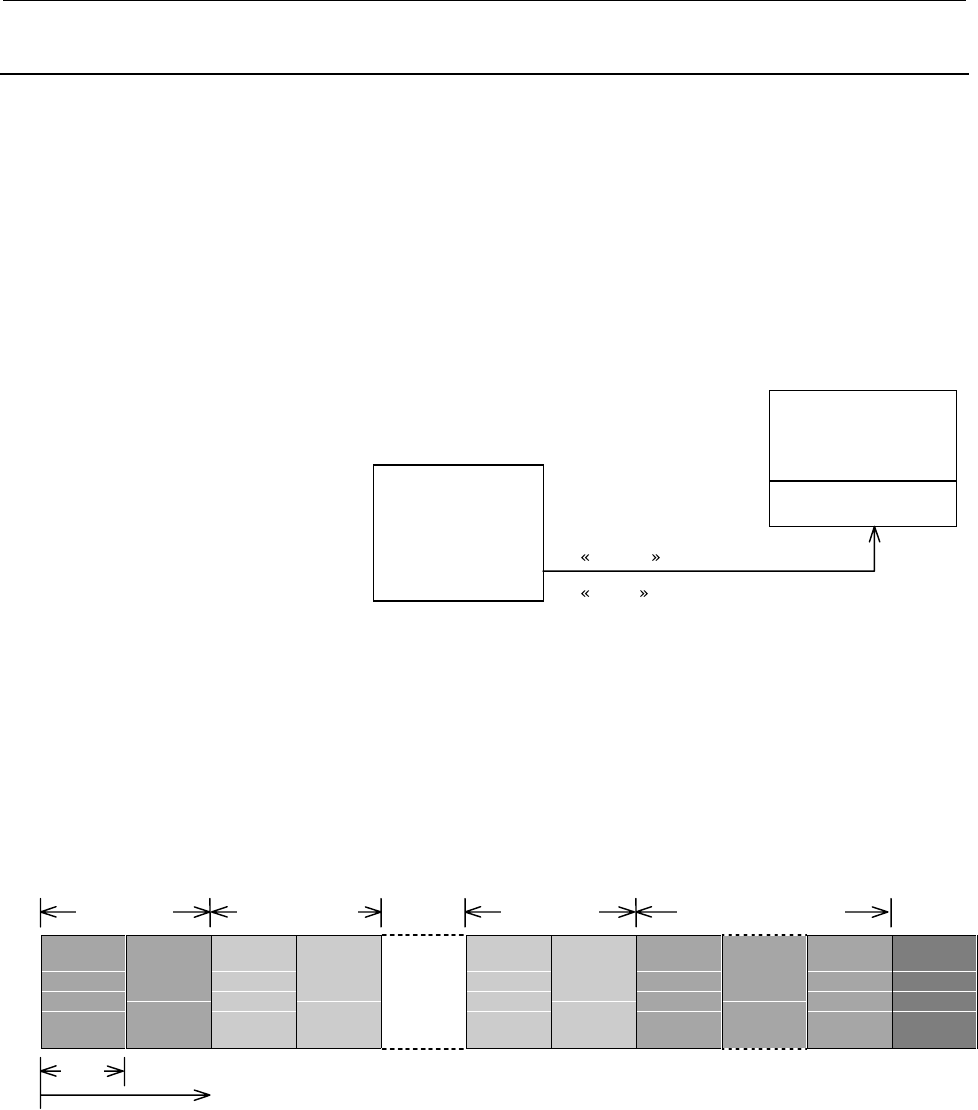

In this format, the travel distance per unit time along each axis (two

bytes) is arranged for all axes, starting with the first axis, followed by

an auxiliary function (four bytes. ) and by the check byte (one byte).

The unit time in msec can be specified with bits 0, 1, and 2 of parameter

No. 7618.

All data must be in binary representation.

High

byte

Low byte

High

byte

Low byte • • •

High

byte

Low byte

Fourth

byte

• • •

First

byte

Check

byte

Host computer

CNC

(FS15i)

Remote buffer

RS232C or

RS422

First axis

Second axis

N-th axis

Auxiliary function

Order of data items

byte
