3.INTERPOLATION FUNCTION NC FUNCTIONS B-63322EN/03

- 34 -

3.5 HELICAL INTERPOLATION (G02,G03)

Helical interpolation which moved helically is enabled by specifying

up to two other axes which move synchronously with the circular

interpolation by circular commands.

The basic command method involves simply adding a move command

for one or two axes, other than circular interpolation axes, to a circular

interpolation command (see II-3.4).

As the feedrate, either a feedrate tangent to an arc or a tangential

feedrate determined by also considering movement along the linear

axes can be specified. The feedrate to be specified can be selected by

setting bit 2 (HTG) of parameter No. 1401. If HTG is set to 0, a feedrate

along an arc is specified by an F command. Therefore, the feedrate on

a linear axis is as follows:

arccircularofLength

axislinearofLength

F ×

Determine the feedrate so that the linear axis feedrate does not exceed

any of the limit values

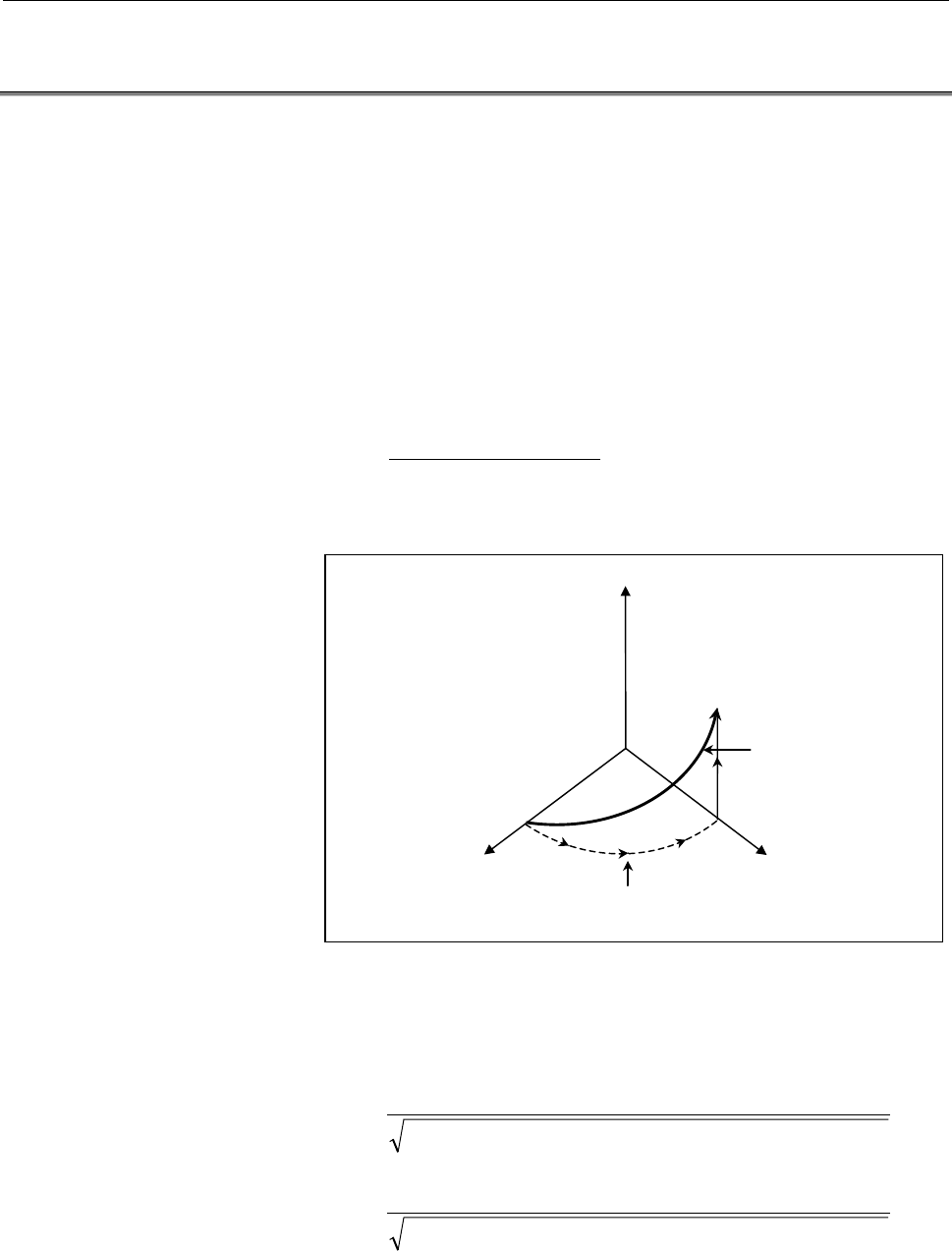

Fig.3.5 (a) Feedrate When Parameter HTG = 0

When bit 2 (HTG) of parameter No. 1401 is set to 1, the speed

command specifies the feedrate along the actual tool path, including

movement along the linear axis.

In this case, the feedrate along the arc on the plane is:

)()( axislinearofLengtharccircularofLength

arccircularofLength

The feedrate along the linear axis is:

)()( axislinearofLengtharccircularofLength

axislinearofLength

The feedrate along the circumference of two

circular interpolated axes is the specified feedrate.

Tool path
