20.12 ELECTRONIC GEAR BOX (G80, G81, G80.5, G81.5)

The Electronic Gear Box is a function for rotating a workpiece in sync

with a rotating tool, or to move a tool in sync with a rotating workpiece.

With this function, the high-precision machining of gears, threads, and

the like can be implemented.

A desired synchronization ratio can be programmed.

Up to two sets of axes can be synchronized. A gear grinding machine

can be controlled, for instance, by using one axis for rotating the

workpiece in sync with the tool and another axis for performing

dressing in sync with the tool.

The specification method differs depending on the configuration of the

machine. The Electronic Gear Box is hereafter referred to as the EGB

function.

- Example of Controlled Axis (Gear grinder)

Spindle :EGB master axis: Tool axis

First axis :X

Second axis :Y

Third axis :C-axis (EGB slave axis: Workpiece axis)

Fourth axis :C-axis (EGB dummy axis: Not usable as an

ordinary controlled axis)

Fifth axis :V-axis (EGB slave axis: Dressing axis)

Sixth axis :V-axis (EGB dummy axis: Not usable as

an ordinary controlled axis)

＋

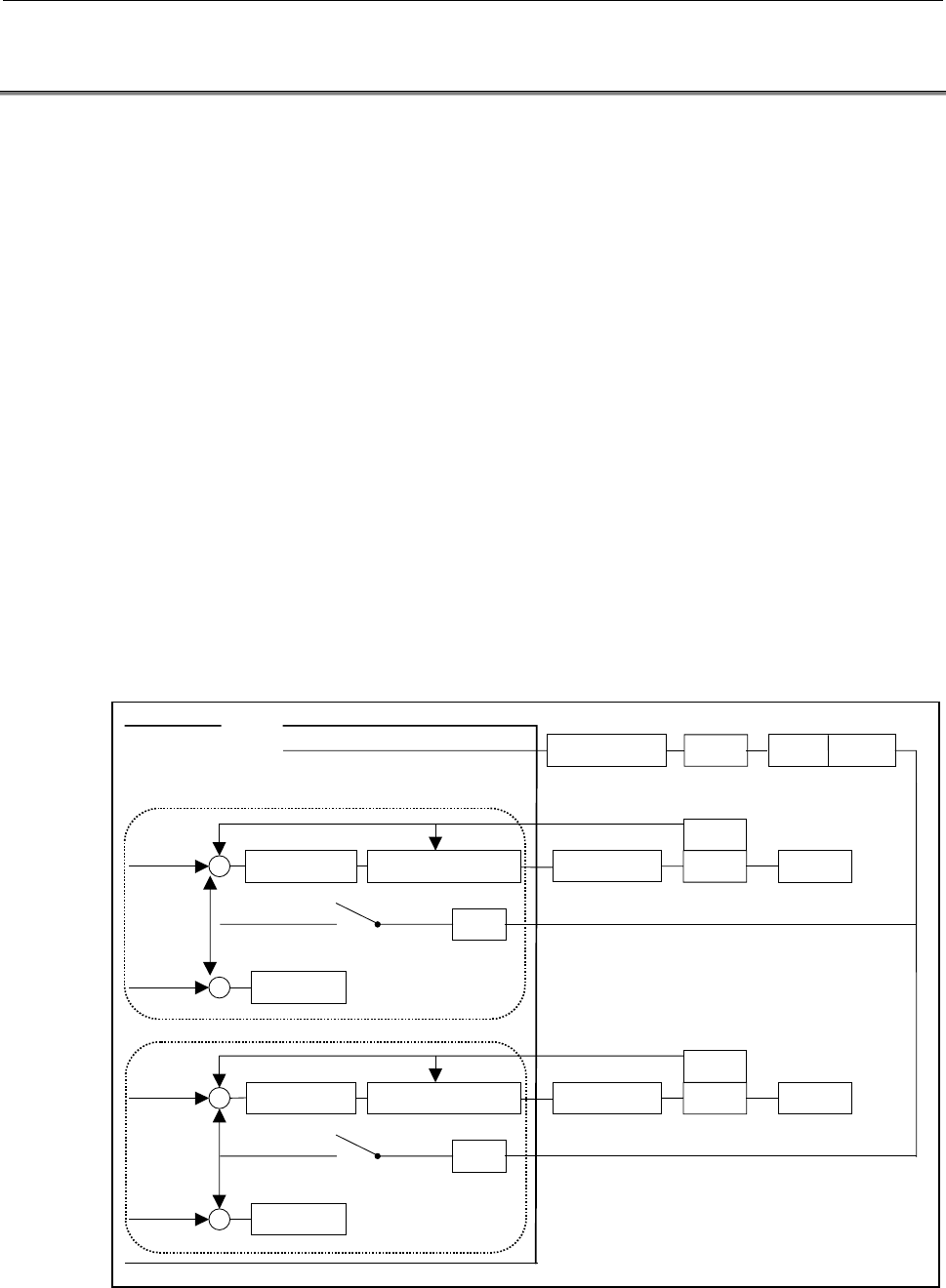

CNC

Motor Spindle Detector

Spindle (master axis)

First axis X (omitted)

Second axis Y (omitted)

Tool axis

Third axis

Slave axis

Fourth axis

Dummy axis

Follow-up

EGB

：

Synchronization factor

：Synchronization factor

Fifth axis

Slave axis

Sixth axis

Dummy axis

Follow-up

EGB

Dressing axis

Error counter

Synchronization switch

Motor

Detector

Servo amplifier

Error counter

Synchronization switch

Motor

Detector

V-axis

Workpiece axis

C-axis

Spindle amplifier

Position control Speed/current control

Position control Speed/current control Servo amplifier
