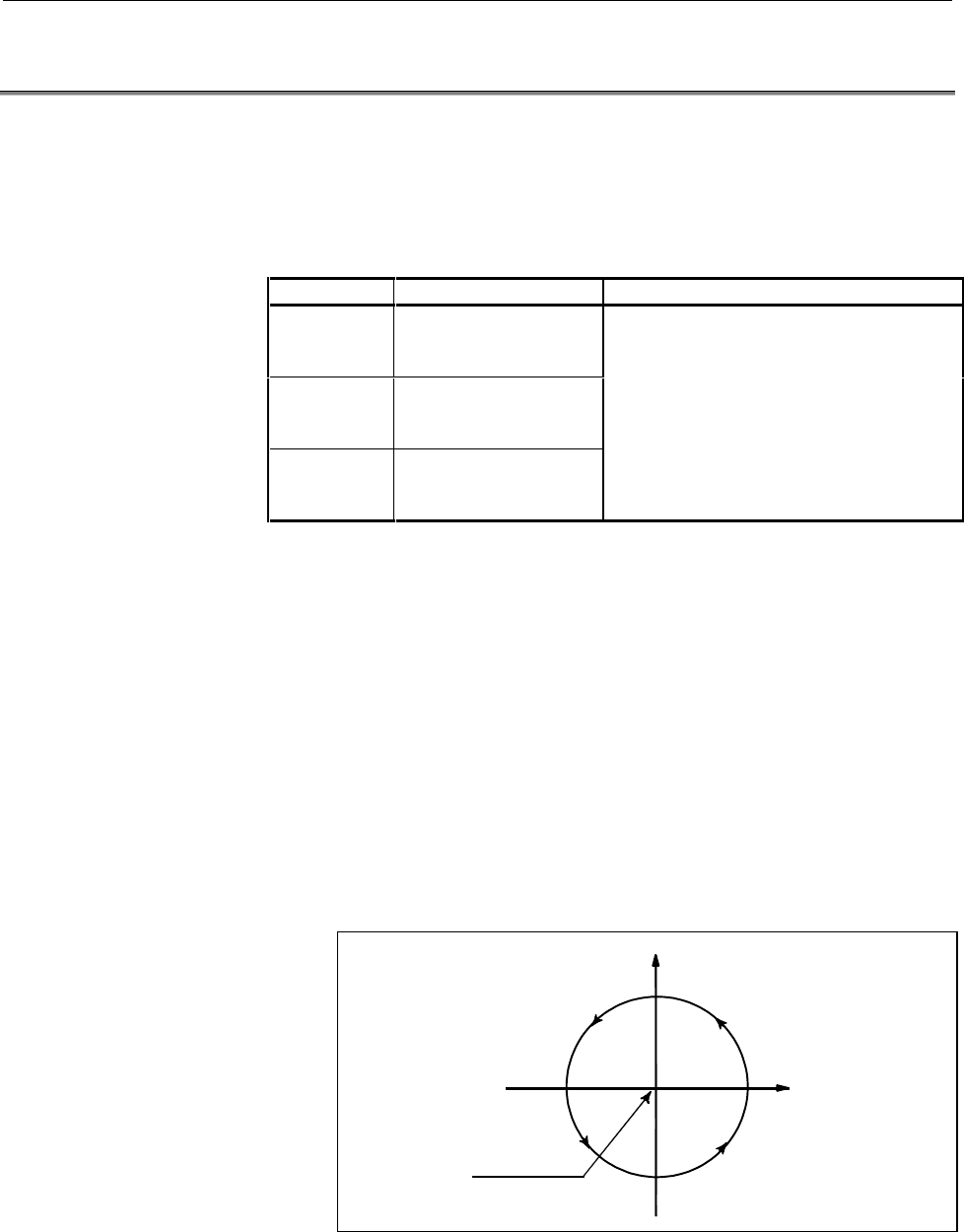

13.FUNCTIONS TO SIMPLIFY PROGRAMMING NC FUNCTIONS B-63322EN/03

- 164 -

13.8 NORMAL DIRECTION CONTROL (G40.1, G41.1, G42.1)

The rotation axis (C axis) can be controlled by commanding the G41.1

or G42.1 so that the tool constantly faces the direction perpendicular to

the advancing direction during cutting.

Format

G code Function Explanation

G41.1

Normal direction

control left

G42.1

Normal direction

control right

G40.1

Normal direction

control cancel

If the workpiece is to the right of the tool path

looking toward the direction in which the tool

advances, the normal direction control left

(G41.1) function is specified.

After G41.1 or G42.1 is specified, the normal

direction control function is enabled (normal

direction control mode).

When G40.1 is specified, the normal

direction control mode is canceled.

In the normal direction control, control is made so that the tool may be

perpendicular to the advancing direction on the X-Y plane.

With the angle of C axis, the +X direction is defined to be 0 degrees

viewed from the rotation center of C axis. Then, the +Y direction, -X

direction, and -Y direction are defined to be 90, 180, and 270 degrees,

respectively.

When the cancel mode is switched to the normal direction control

mode, the C-axis becomes perpendicular to the tool path at the

beginning of the block containing G41.1 or G42.1.

In the interface between blocks in the normal direction control mode, a

command to move the tool is automatically inserted so that the C-axis

becomes perpendicular to the tool path at the beginning of each block.

The tool is first oriented so that the C-axis becomes perpendicular to

the tool path specified by the move command, then it is moved along

the X- and Y axes.

In the cutter compensation mode, the tool is oriented so that the C-axis

becomes perpendicular to the tool path created after compensation.

In single-block operation, the tool is not stopped between a command

for rotation of the tool and a command for movement along the X- and

Center of

rotation

180

270
