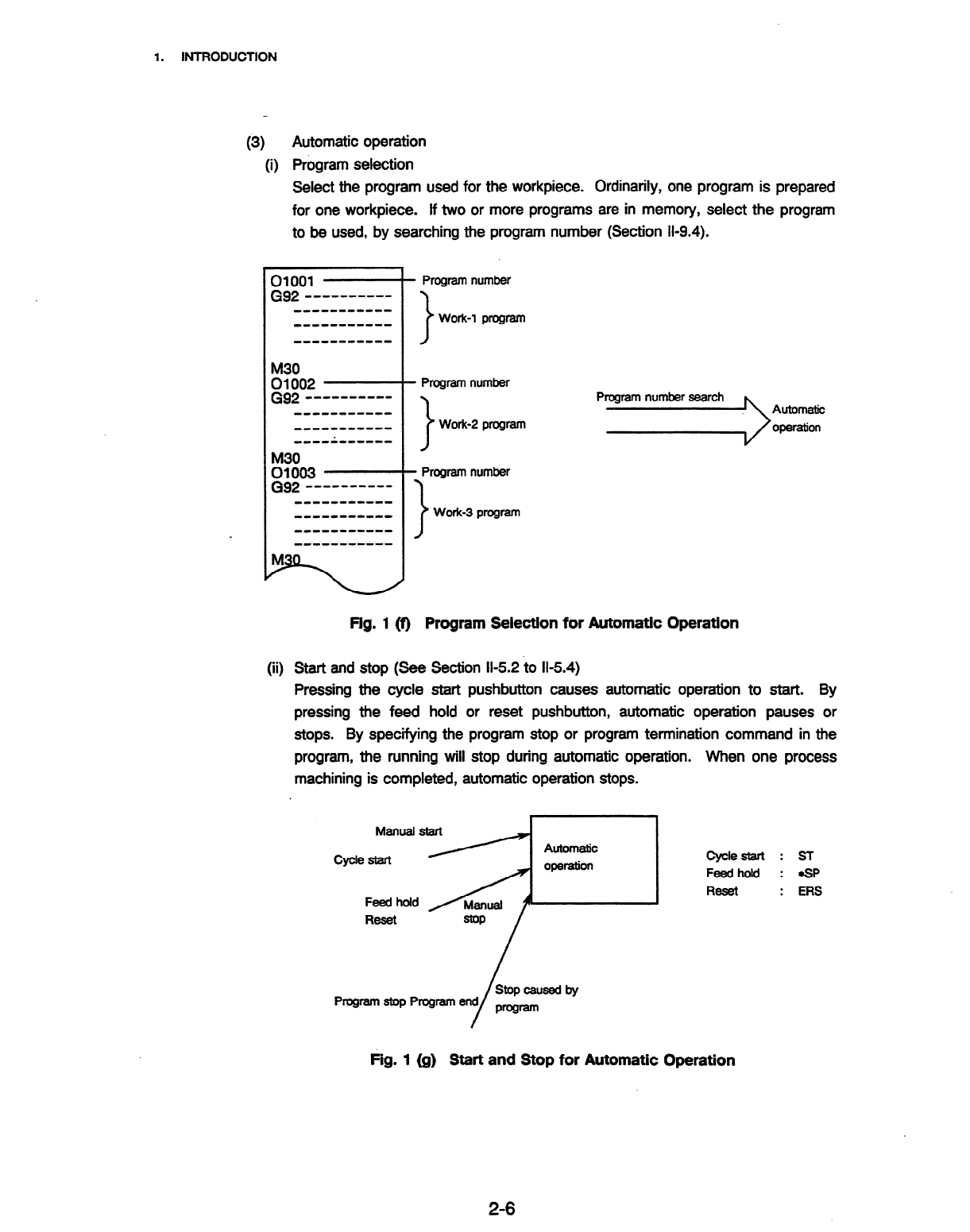

1. INTRODUCTION

(3)

Automatic operation

Program selection

Select the program used for the workpiece. Ordinarily, one program is prepared

for one workpiece. If two or more programs are in memory, select the program

to be used, by searching the program number (Section N-9.4).

01001

G92

------I---

---1-------

M30

01002

G92

LIIIIIIIII

~~~~~~~-~~I

-----------

M30

01003

G92

~~~~~~~~~~

~~~~~~--~~-

(ii)

- Program number

Work-l program

- Program number

Work-2 program

- Program number

Work-3 program

Fig. 1 (9

Program Selection for Automatic Operation

Start and stop (See Section 11-5.2 to H-5.4)

Pressing the cycle start pushbutton causes automatic operation to start. By

pressing the feed hold or reset pushbutton, automatic operation pauses or

stops. By specifying the program stop or program termination command in the

program, the running will stop during automatic operation. When one process

machining is completed, automatic operation stops.

Cycles-tart : ST

Feed hold : &P

Reset

: ERS

Fig. 1 (g) Start and Stop for

Automatic Operation

2-6
