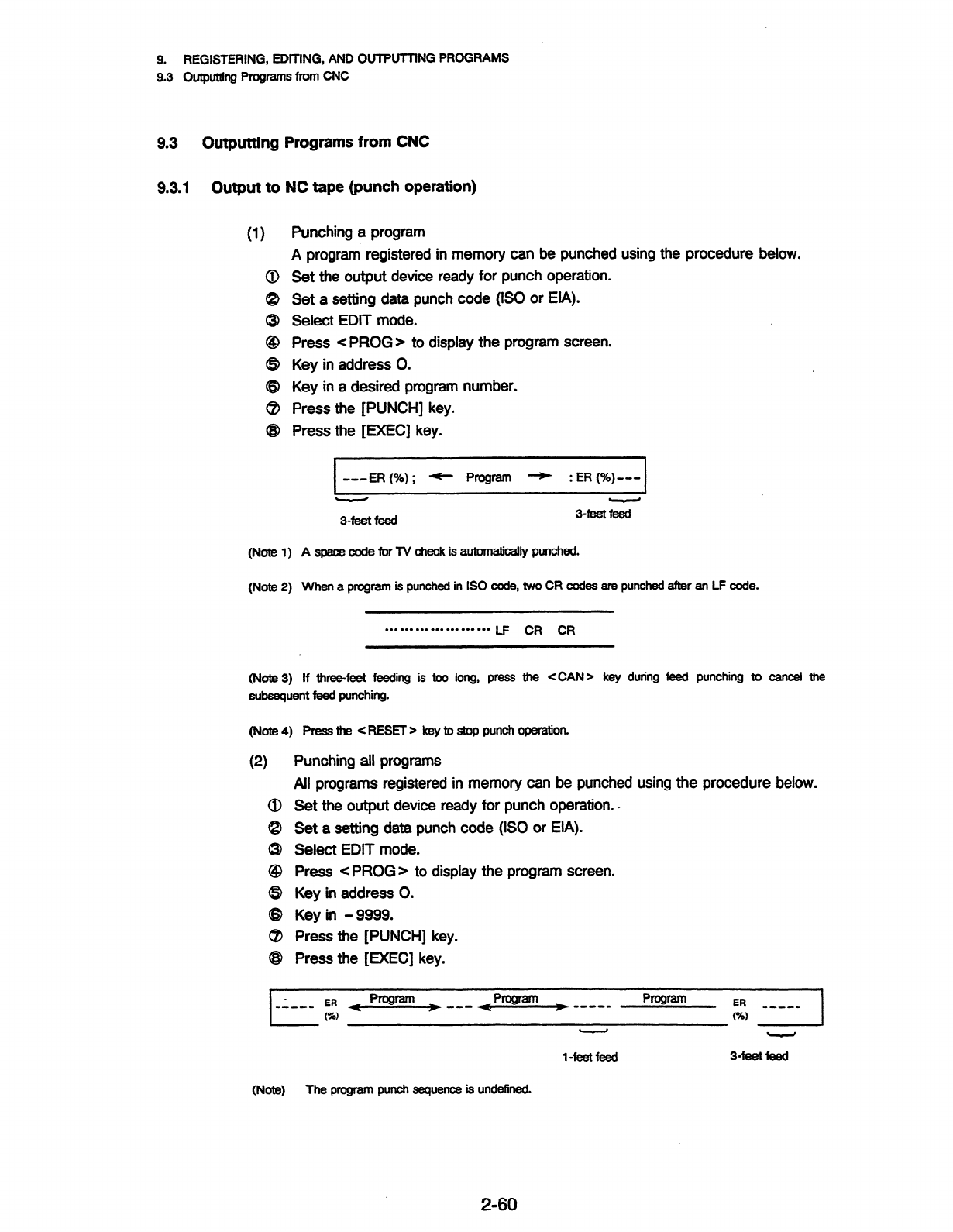

REGISTERING, EDITING, AND OUTPlJJllNG PROGRAMS

9.3 Outputting Programs from CNC

8.3 Outputting Programs from CNC

9.3.1 Output to NC tape (punch operation)

Punching a program

A program registered in memory can be punched using the procedure below.

Set the output device ready for punch operation.

Set a setting data punch code (IS0 or EIA).

Select EDIT mode.

Press < PROG ) to display the program screen.

Key in address 0.

Key in a desired program number.

Press the [PUNCH] key.

Press the [EXEC] key.

---ER (%) ;

e Program e

: ER (%)---

l _ *

\ _ 0

3-feet feed

34eet feed

(Note 1)

A space code for IV check is automatically punched.

(Note 2)

When a program is punched in IS0 code, two CR codes are punched after an LF code.

. . . . . . . . . . . . . . . . . . . . . u

CR CR

(Nate 3) If three-feet feeding is tot long, press the <CAN > key during feed punching to cancel the

subsequent feed punching.

(Note 4) Press the < RESET > key to stop punch operation.

Punching all programs

All programs registered in memory can be punched using the procedure below.

Set the output device ready for punch operation. -

Set a setting data punch code (IS0 or EIA).

Select EDIT mode.

Press < PROG ) to display the program screen.

Key in address 0.

Key in - 9999.

Press the [PUNCH] key.

Press the [EXEC] key.

(Note)

The program punch sequence is undefined.

2-60
