13.

FUNCTIONS TO SiMPLlFY PROGRAMMING

13.1 Canned Cycles (G73, G74, 676, G78, G79, G80 to G89)

(2)

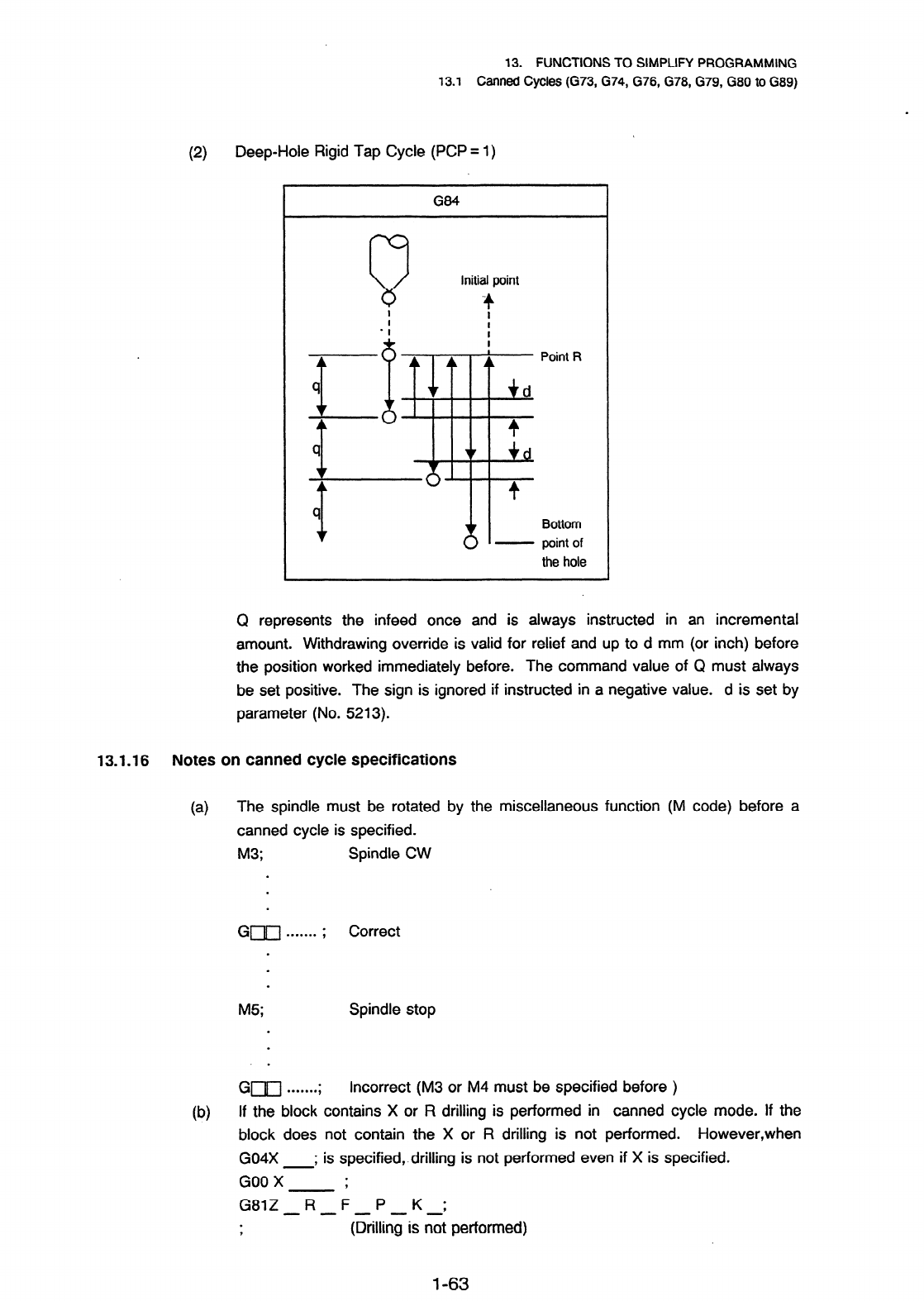

Deep-Hole Rigid Tap Cycle (PCP = 1)

G84

Initial point

. .

-I

UAvA A

Point R

I, ’ +d

E, ‘-

Bottom

point of

the hole

Q represents the infeed once and is always instructed in an incremental

amount. Withdrawing override is valid for relief and up to d mm (or inch) before

the position worked immediately before. The command value of Q must always

be set positive. The sign is ignored if instructed in a negative value. d is set by

parameter (No. 5213).

13.1 .I 6

Notes on canned cycle specifications

( )

The spindle must be rotated by the miscellaneous function (M code) before a

canned cycle is specified.

M3;

Spindle CW

GI-i-[ . . . . . . . ; Correct

M5;

Spindle stop

(b)

G1-V-l . . . . . . .; Incorrect (M3 or M4 must be specified before )

If the block contains X or R drilling is performed in canned cycle mode. If the

block does not contain the X or R drilling is not performed. However,when

G04X

; is specified, .drilling is not performed even if X is specified.

GO0 X- ;

G81Z R F P K ;

- - B

(DrillinTis not performed)

1-63
