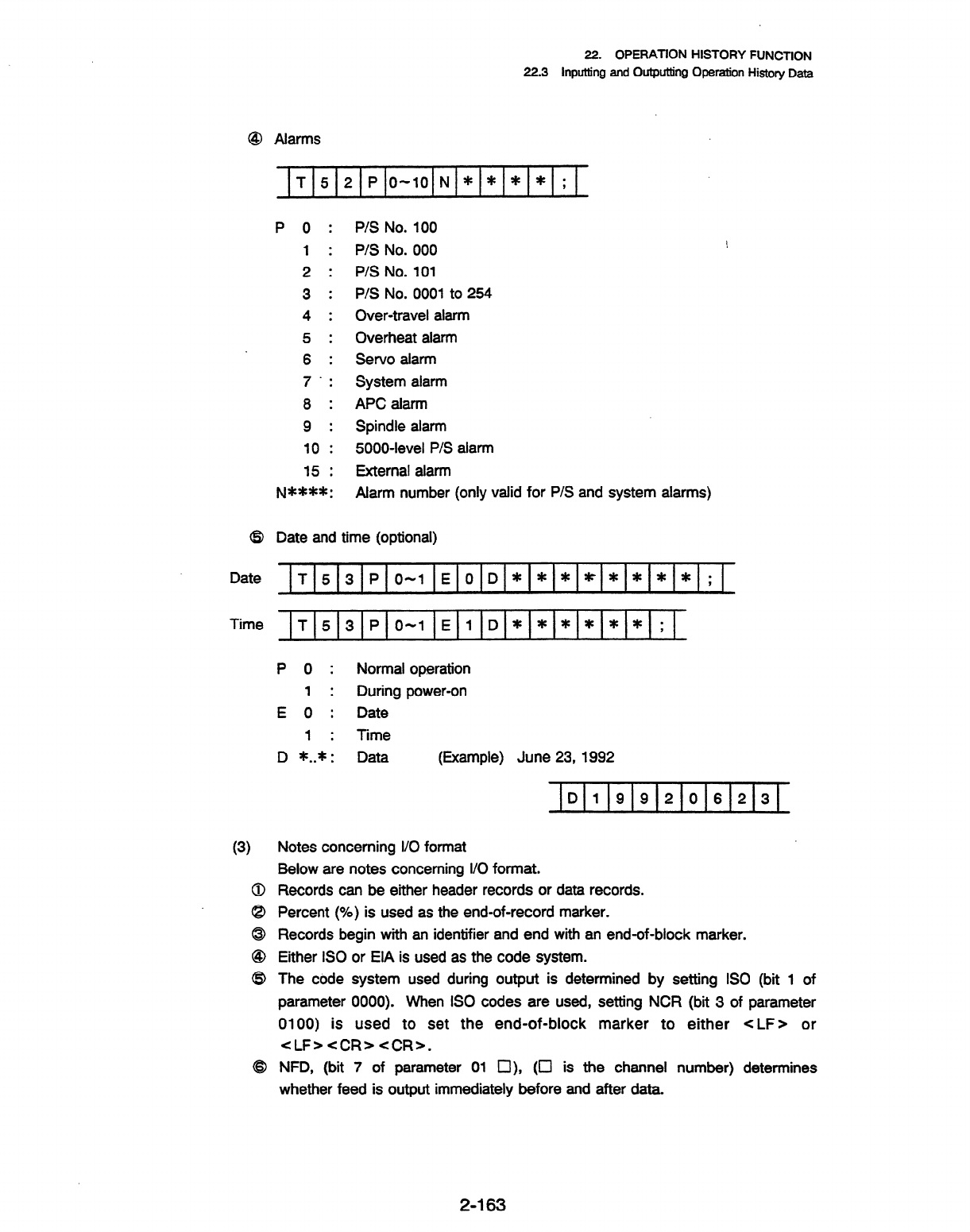

a. OPERATION HISTORY FUNCTION

22.3

inputting and Outputting Operation History Data

Date

Time

Alarms

T 5 2 P O-10 N * * * * ;

P 0 : P/S No. 100

1 : P/S No. 000

2 :

P/S No. 101

. P/S No. 0001 to 254

4 :

Over-travel alarm

5 :

Overheat alarm

6 :

Servo alarm

7 - :

System alarm

APC alarm

: Spindle alarm

10 :

5000-level P/S alarm

15 : External alarm

N*W*:

Alarm number (only valid for P/S and system alarms)

Date and time (optional)

T 5 3 P O-1 E 0 D * * * * * *

T 5 3 P O-1 E 1 D * *

P 0 : Normal operation

1 : During power-on

E 0 : Date

1: Time

D *..*: Data

(Example) June 23,1992

0199206

(3)

Notes concerning I/O format

Below are notes concerning l/O format.

@ Records can be either header records or data records.

@ Percent (?G) is used as the end-of-record marker.

@ Records begin with an identifier and end with an end-of-block marker.

@ Either IS0 or EIA is used as the code system.

@ The code system used during output is determined by setting IS0 (bit 1 of

parameter 0000). When IS0 codes are used, setting NCR (bit 3 of parameter

0100) is used to set the end-of-block marker to either < LF> or

<LF><CR> <CR>.

@ NFD, (bit 7 of parameter 01 o), (0 is the channel number) determines

whether feed is output immediately before and after data.

2-163
