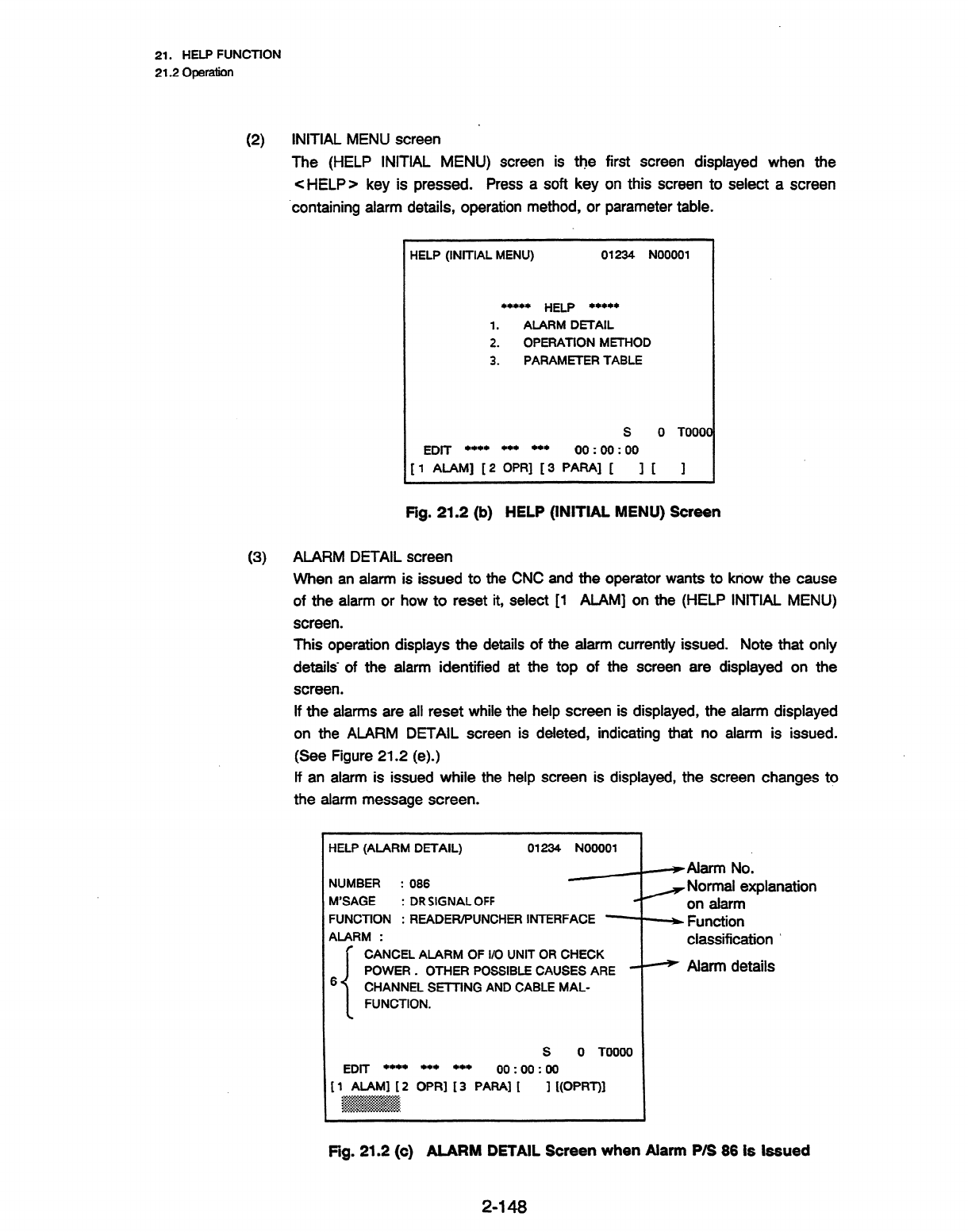

21. HELP FUNCTION

21.2 Operation

(2)

INITIAL MENU screen

The (HELP INITIAL MENU) screen is the first screen displayed when the

<HELP> key is pressed.

Press a soft key on this screen to select a screen

.containing alarm details, operation method, or parameter table.

HELP (INfTIAL MENU)

01234 NO0001

S+Sr- HELP +++++

ALARM DmAIL

2. OPERATlON MEWnOD

3. PARAMETER TABLE

S 0 TOOOf

EDm Cc+*+ +1)1+ -8 00 : 00 : 00

[ 1 ALAM] [ 2 OPR] [ 3 PARA] [ I[ 1

Fig. 21.2 (b) HELP (INITIAL MENU) Screen

(3) ALARM DETAIL screen

When an alarm is issued to the CNC and the operator wants to know the cause

of the alarm or how to reset it, select [l ALAM] on the (HELP INITIAL MENU)

screen.

This operation displays the details of the alarm currently issued. Note that only

details- of the alarm identified at the top of the screen are displayed on the

screen.

If the alarms are all reset while the help screen is displayed, the alarm displayed

on the ALARM DETAIL screen is deleted, indicating that no alarm is issued.

(See Figure 21.2 (e).)

If an alarm is issued while the help screen is displayed, the screen changes to

the alarm message screen.

HELP (ALARM DETAIL)

01234 NO0001

NUMBER

: 086

M’SAGE : DR SIGNAL OFF

FUNCTION : READER/PUNCHER INTERFACE -

ALARM :

CANCEL ALARM OF l/O UNIT OR CHECK

POWER w OTHER POSSIBLE CAUSES ARE -

CHANNEL StrlNG AND CABLE MAL-

FUNCTION.

0 TOO00

EDlT e-1 8++ +++

00 : 00 : 00

f 1 ALAM] 12 OPR] 13 PARA] [

I m-T)1

.7,..,...~......~~,,,.,.......

..,........ . a.....

. . . . , . . . . . . . . . . .*.*.,.,.*.

.*...‘.~.w.*.w.~.%, . . . . .

.v.*. , . ..‘...‘..........‘..~.......

~..:.:.:.:~.......:.*.:.o.‘...~,,. .

. . . . . . .w.v. ,. .%%%. da.

~-Alarm No.

- Normal explanation

on alarm

- Function

classification ’

- Alarm details

Fig. 21.2 (c) ALARM DETAIL Screen when Alarm P/S 86 Is Issued

2-l 48
