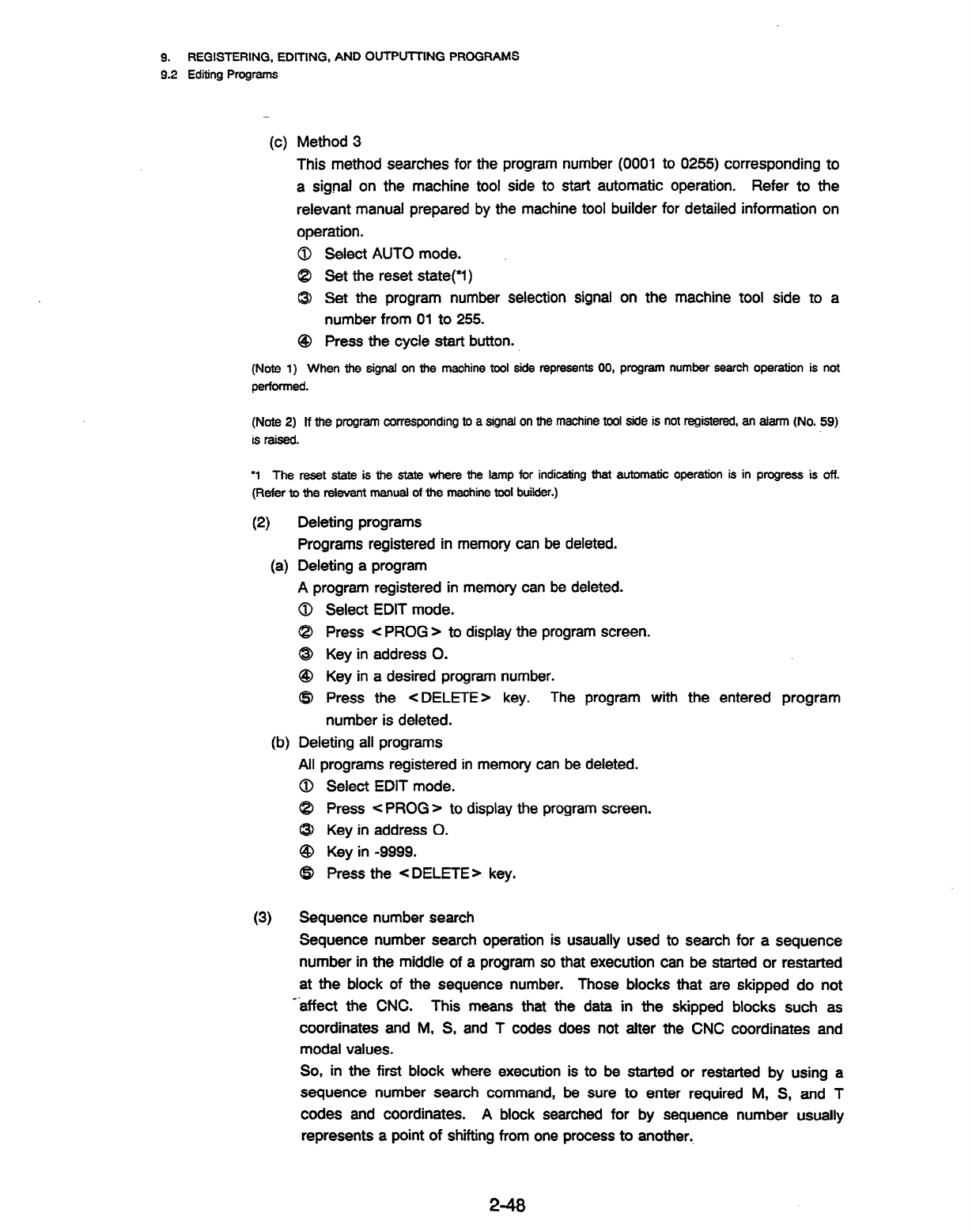

REGISTERING, EDITING, AND OUTPUrrING PROGRAMS

9.2

Editing Programs

This method searches fol

a signal on the machine

relevant manual prepared

operation.

the program number (0001 to 0255) corresponding to

tool side to start automatic operation. Refer to the

by the machine tool builder for detailed information on

Select AUTO mode.

Set the reset state(*l)

Set the program number selection signal on the machine tool side to a

number from 01 to 255.

Press the cycle start button.

(Note 1) When the signal on the machine tool side represents 00, program number search operation is not

performed.

(Note 2)

is raised.

If the program corresponding to a signal on the machine tool side is not registered,

an alarm (No. 59)

*1 The reset state is the state

(Refer to the relevant manual of

where the lamp

the machine tool

for indicating

builder.)

automatic operation

is in

Progr-

is off.

(2)

Deleting programs

Programs registered in memory can be deleted.

(a) Deleting a program

A program registered in memory can be deleted.

@ Select EDIT mode.

Press < PROG ) to display the program screen.

@ Key in address 0.

@ Key in a desired program number.

@ Press the <DELETE> key. The program with the entered

number is deleted.

(b) Deleting all programs

All programs registered in memory can be deleted.

@ Select EDIT mode.

@ Press < PROG ) to display the program screen.

@ Key in address 0.

@ Key in -9999.

@ Press the <DELETE> key.

program

(3)

Sequence number search

Sequence number search operation is usaually used to search for a sequence

number in the middle of a program so that execution can be started or restarted

at the block of the sequence number. Those blocks that are skipped do not

--affect the CNC. This means that the data in the skipped blocks such as

coordinates and M, S, and T codes does not alter the CNC coordinates and

modal values.

So, in the first block where execution is to be started or restarted by using a

sequence number search command, be sure to enter required M, S, and T

codes and coordinates. A block searched for by sequence number usually

represents a point of shifting from one process to another..

248
