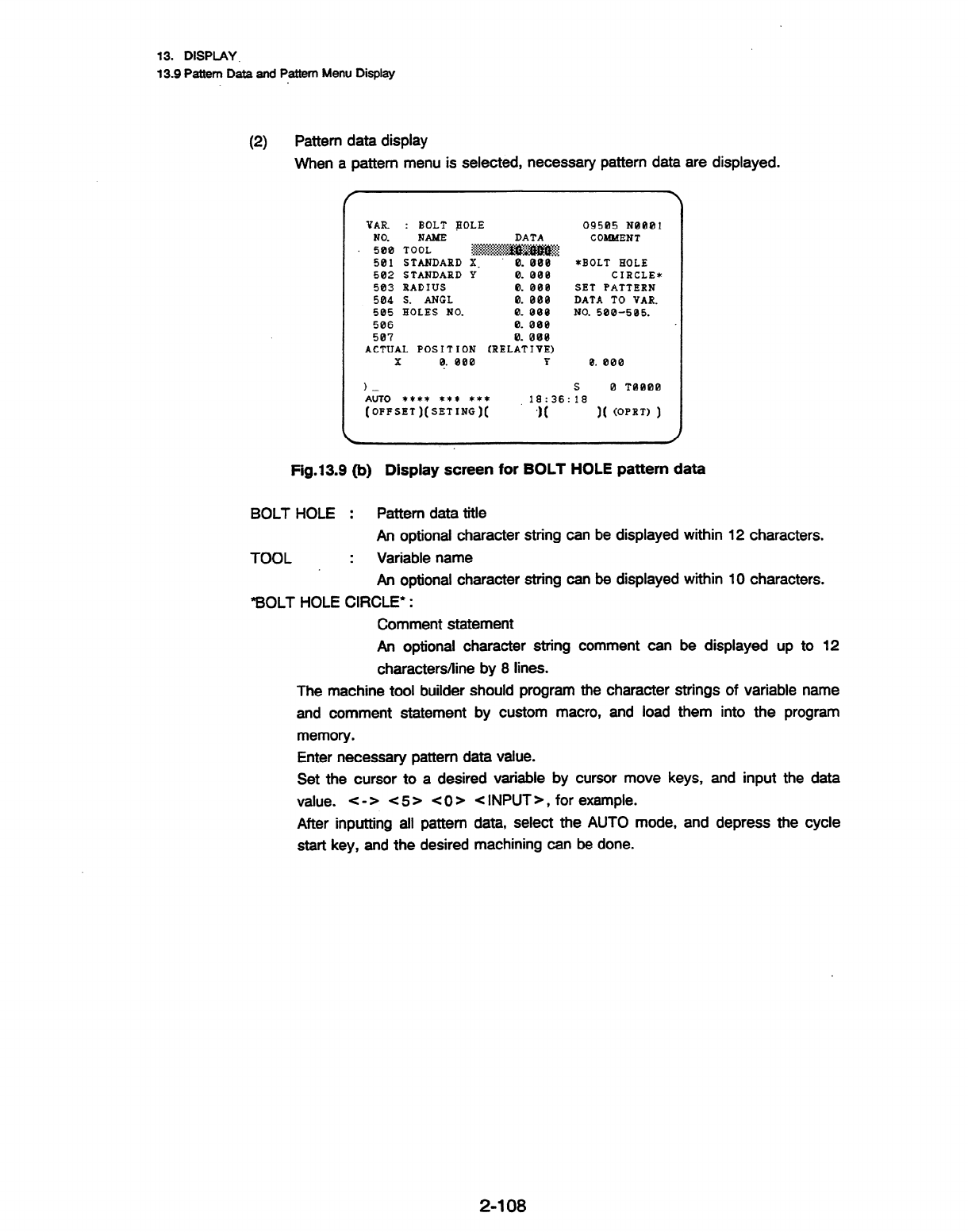

13. DISPLAY.

13.9 Pattern Data and Pattern Menu Display

(2)

Pattern data display

When a pattern menu is selected, necessary pattern data are displayed.

VAR, : BOLT ?OLE

NO_ NAME

50-0 TOOL

DATA

’ . . . ._.*.*. . ., ._o*.*

:$$:z$$::::#$$#&&@..

09505 NB001

COMMENT

501 STANDARD X. . 0.060

502 STANDARD Y 0.080

503 RADIUS 0.000

504 S. ANGL 0.008

505 BOLES NO. 0-000

506 0.008

507 0- 008

ACTUAL POSITION (RELATIVE)

X 0. 800 F

*BOLT HOLE

CIRCLE*

SET PATTERN

DATA TO VAR.

NO. 500-505.

0. 000

0 T8800

AUTO $a11 %a$ ftS

. 18:36:18

(oFFSET)(SETING)( j(

)[ (oPRT) )

Fig.13.9 (b)

Display screen for BOLT HOLE pattern data

BOLT HOLE :

Pattern data title

An optional character string can be displayed within 12 characters.

TOOL : Variable name

An optional character string can be displayed within 10 characters.

*BOLT HOLE CIRCLE* :

Comment statement

An optional character string comment can be displayed up to 12

characters/line by 8 lines.

The machine tool builder should program the character strings of variable name

and comment statement by custom macro, and load them into the program

memory.

Enter necessary pattern data value.

Set the cursor to a desired variable by cursor move keys, and input the data

value. c - > < 5 > < 0 > < INPUT>, for example.

After inputting all pattern data, select the AUTO mode, and depress the cycle

start key, and the desired machining can be done.

2-l 08
