Power Mate D and F Motion Controllers Programming manual Page 229

Programming manual

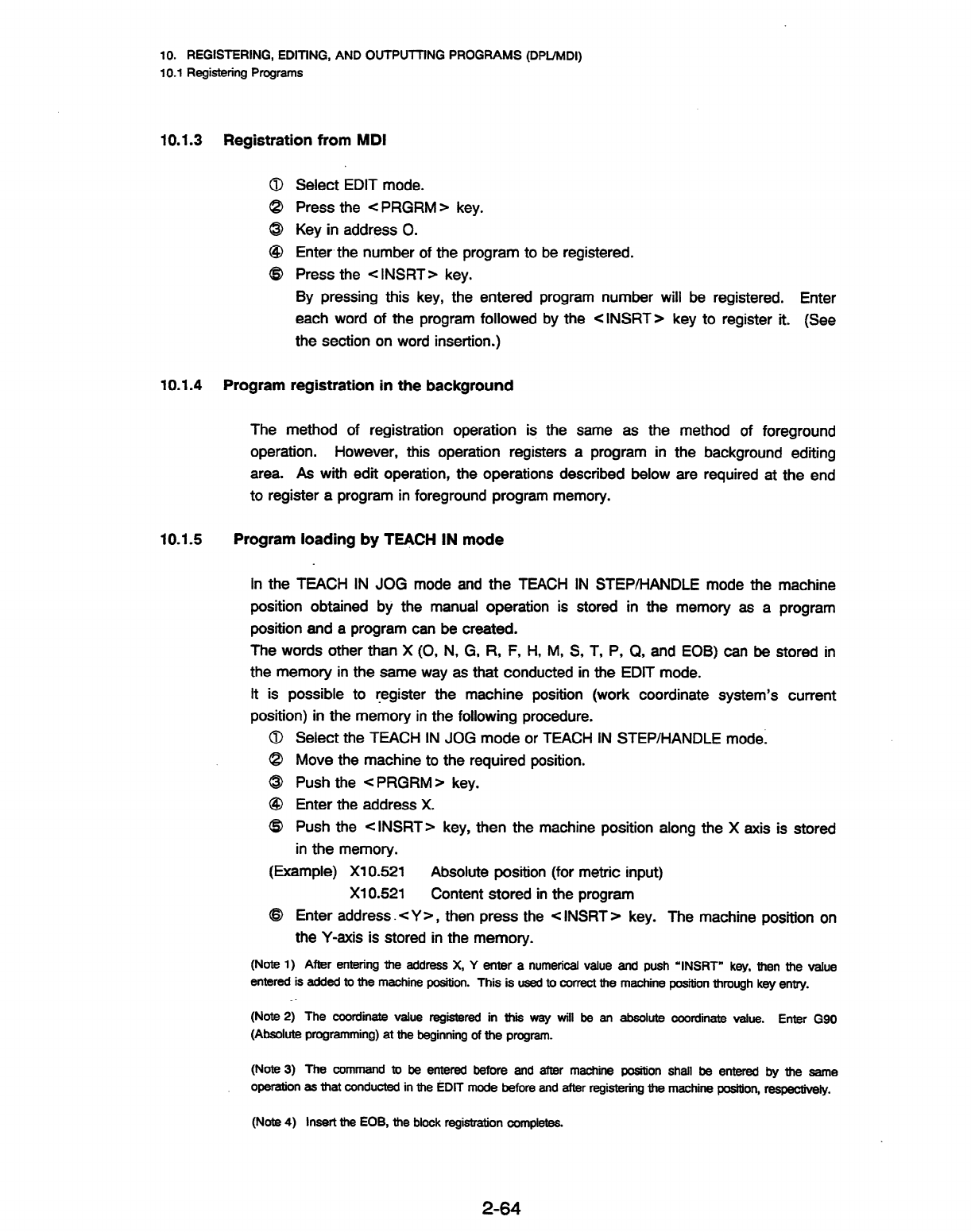

lo. REGISTERING, EDITING, AND OUTPUTTING PROGRAMS (DPUMDI)
10.1 Registering Programs
10.1.3 Registration from MDI
Select EDIT mode.
Press the < PRGRM) key.
Key in address 0.
Enterthe number of the program to be registered.
Press the < lNSRT> key.
By pressing this key, the entered program number will be registered. Enter
each word of the program followed by the c lNSRT> key to register it.
(See
the section on word insertion.)
10.1.4
Program registration in the background
The method of registration operation is the same as the method of foreground
operation. However, this operation registers a program in the background editing
area. As with edit operation, the operations described below are required at the end
to register a program in foreground program memory.
10.1.5
Program loading by TE&H IN mode
In the TEACH IN JOG mode and the TEACH IN STEP/HANDLE mode the machine
position obtained by the manual operation is stored in the memory as a program
position and a program can be created.
The words other than X (0, N, G, R, F, H, M, S, T, P, Q, and EOB) can be stored in
the memory in the same way as that conducted in the EDIT mode.
It is possible to register the machine position (work coordinate system’s current
I
position) in the memory in the following procedure.
0 Select the TEACH IN JOG mode or TEACH IN STEP/HANDLE mode.
@) Move the machine to the required position.
@ Push the c PRGRM) key.
@ Enter the address X.
@ Push the < INSRT) key, then the machine position along the X axis is stored
in the memory.
(Example) Xl 0.521 Absolute position (for metric input)
Xl 0.521 Content stored in the program
@ Enter address. <Y), then press the < INSRT) key. The machine position on
the Y-axis is stored in the memory.
(Note 1)
entered is
(Note 2)
(Absolute
The coordinate value registered
programming) at the beginning of
the program.
(Note 3)
. operation
After entering the address X, Y enter
a numerical value and push “INSFIT” key, then the value
added to the machine position. This is used to correct the machine position through
key entry.
in thii way
The command to
be entered before and
as that conducted in the EDIT mode before
will be an
after machine position
and after registering the
coordinate
shall be entered
machine
position,
Enter G90
bythesatne
res~ry.
(Note 4) Insert the EOB, the block registration completes.
2-64
