Power Mate D and F Motion Controllers Programming manual Page 337

Programming manual

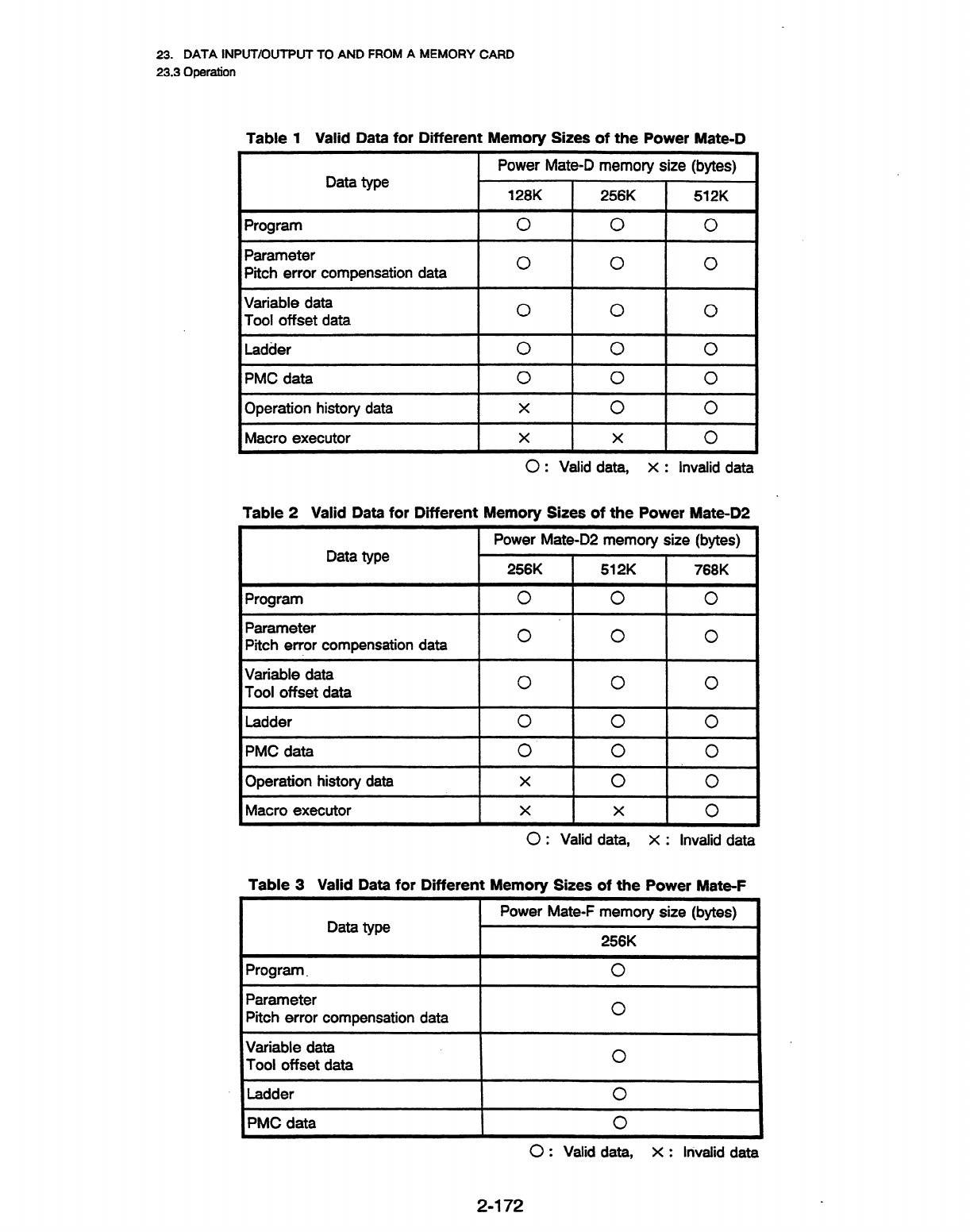

23. DATA INPUT/OUTPUT TO AND FROM A MEMORY CARD
23.3 Operation
Table 1 Valid Data for Different Memory Sizes of the Power Mate-D
Power Mate-D memory size (bytes)
Data type
128K 256K
512K
Program 0
0 0
Parameter
Pitch error compensation data 0
0 0
Variable data
Tool offset data
0 0 0
Ladder 0
0 0
PMC data
0 0 0
Operation history data X
0 0
Macro executor
X X
0
I
.
n
.
.
.
I
I
I
II
0 : Valid data, X : Invalid data
.
Table 2 Valid Data for Different Memory Sizes of the Power Mate-D2
Power Mate-D2 memory size (bytes)
Data type
1
256K 512K
768K
Program 0 0 0
.
Parameter
Pitch error compensation data
0
0 0
Variable data
Tool offset data
0 0
0
Ladder 0 0
0
PMC data
0 0
0
Operation history data X
0
0
Macro executor
X
X
0
0 : Valid data, X : Invalid data
Table 3 Valid Data for Different Memory Sizes of the Power Mate-F
-
Power Mate-F memory size (bytes)
Data type
I
256K
I
Program.
0
I
Parameter
Pitch error compensation data
0
I
Variable data
Tool offset data
0
I
Ladder
0
1
I
PMC data
0
0 : Valid data, X : lrivalid data
2-l 72
