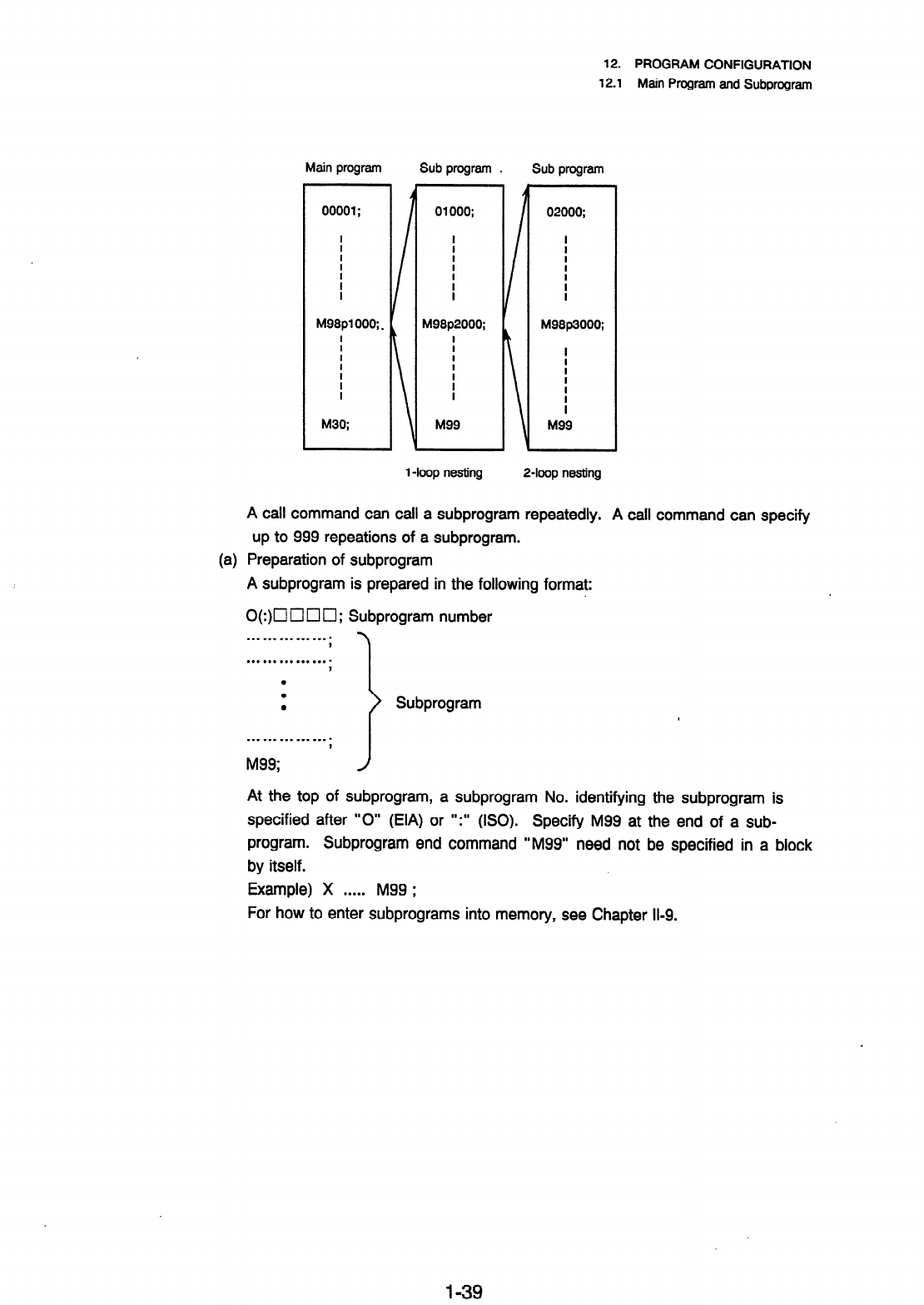

12. PROGRAM CONFIGURATION

12.1 Main Program and Subprogram

Main program Sub program .

Sub program

1 -loop nesting

02000;

M98p3000;

24oop nesting

A call command can call a subprogram repeatedly. A call command can specify

up to 999 repeations of a subprogram.

(a) Preparation of subprogram

A subprogram is prepared in the following format:

O(:)o Cl II 0 ; Subprogram number

. . . . . . . . . . . . . . . ’

. . . . . . . . . l .**.m.

. . . . . . . . . . . . w.0.

Subprogram

M99;

At the top of subprogram, a subprogram No. identifying the subprogram is

specified after ” 0” (EIA) or ” :” (ISO). Specify M99 at the end of a sub-

program. Subprogram end command “M99” need not be specified in a block

by itself.

Example) X . . . . . M99 ;

For how to enter subprograms into memory, see Chapter 11-9.

l-39
