Power Mate D and F Motion Controllers Programming manual Page 89

Programming manual
13.
FUNCTIONS TO SIMPLIFY PROGRAMMING

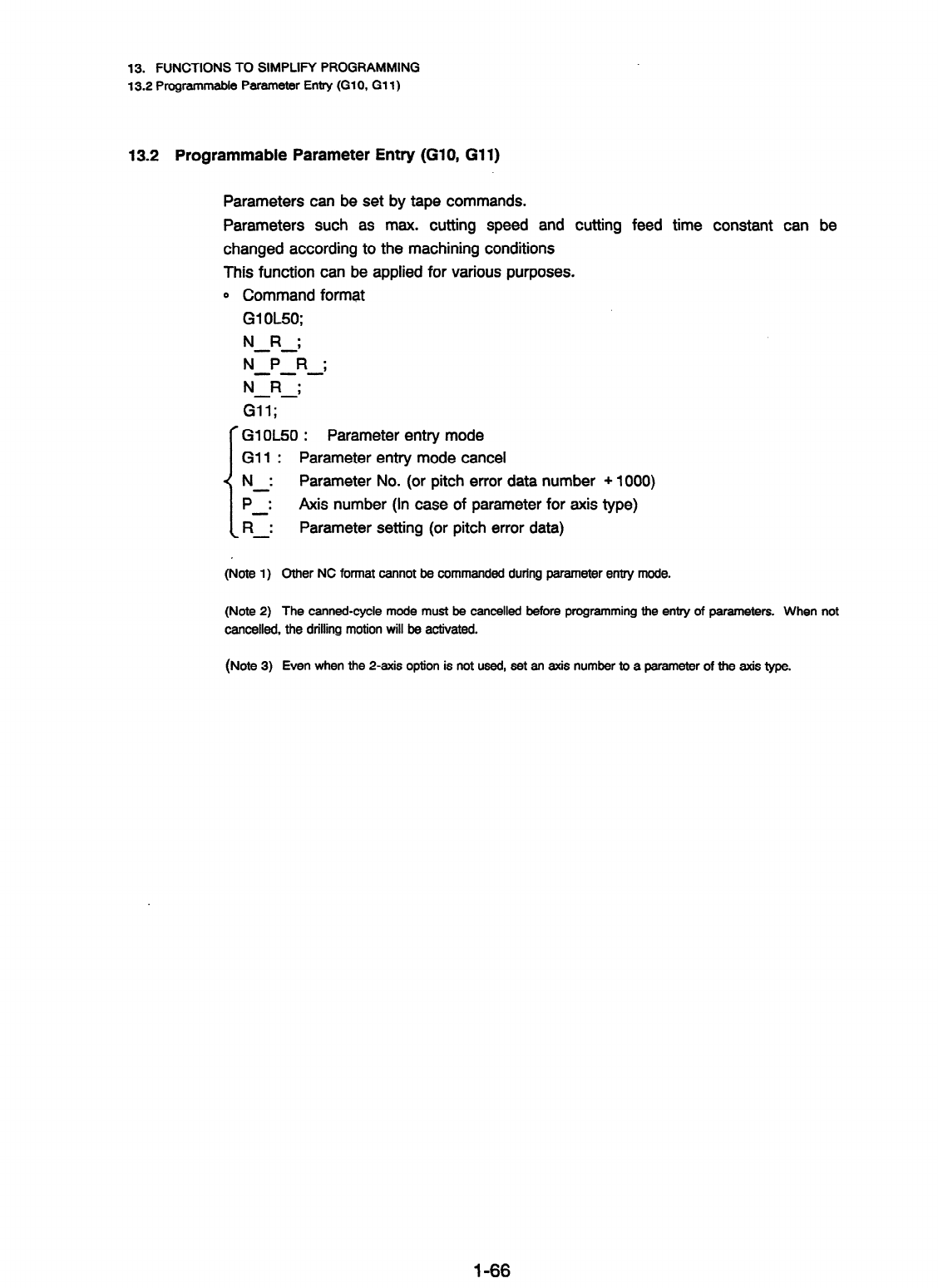

13.2
Programmable Parameter Entry @IO, G11)
13.2
Programmable Parameter Entry (GIO, Gl 1)
Parameters can be set by tape commands.
Parameters such as max. cutting speed and cutting feed time constant can be
changed according to the machining conditions
This function can be applied for various purposes.
0 Command format
Gl OL50;
N R ;
N-P-R ;
--
N-R
;
G-ii
;
Parameter entry mode
Parameter entry mode cancel
Parameter No. (or pitch error data number + 1000)
Axis number (In case of parameter for axis type)
Parameter setting (or pitch error data)
(Note 1) Other NC format cannot be commanded during parameter entry mode.
(Note 2) The canned-cycle mode must be cancelled
cancelled, the drilling motion will be activated.
programming the entry of
parameters.
When not
(Note 3) Even when the 2&s option is not used, set an axis number to a parameter of the axis type.
l-66
