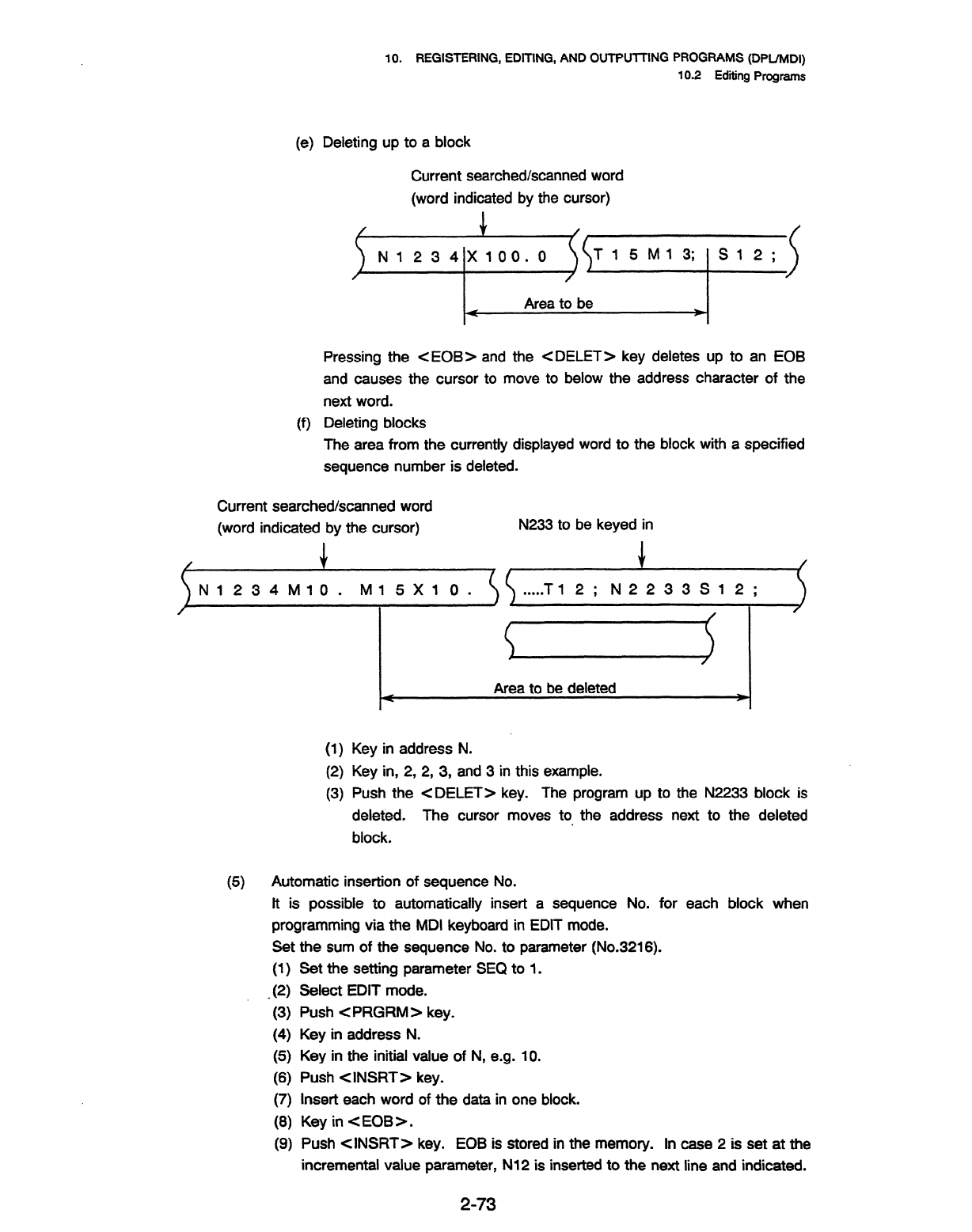

10. REGISTERING, EDITING, AND OUTPU-ITING PROGRAMS (DPLMDI)

10.2 Editing Programs

( 1

Deleting up to a block

Current searched/scanned word

(word indicated by the cursor)

Area to be

Pressing the < EOB> and the <DELET> key deletes up to an EOB

and causes the cursor to move to below the address character of the

next word.

Deleting blocks

The area from the currently displayed word to the block with a specified

sequence number is deleted.

Current searched/scanned word

(word indicated by the cursor)

N1234MlO. M15XlO.

N233 to be keyed in

\ . . . ..T 1 2 ; N 2 2 3 3 S 1 2 ; )

Area to be deleted

(1) Key in address N.

(2) Key in, 2, 2, 3, and 3 in this example.

(3) Push the CDELET> key. The program up to the N2233 block is

deleted. The cursor moves to the address next to the deleted

block.

(5)

Automatic insertion of sequence No.

It is possible to automatically insert a sequence No. for each block when

programming via the MDI keyboard in EDIT mode.

Set

(1)

. (2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

the sum of the sequence No. to parameter (No.3216).

Set the setting parameter SEQ to 1.

Select EDIT mode.

Push cPRGRM> key.

Key in address N.

Key in the initial value of N, e.g. IO.

Push <INSRT> key.

Insert each word of the data in one block.

Key in <EOB>.

Push <lNSRT> key. EOB is stored in the memory. In case 2 is set at the

incremental value parameter, N12 is inserted to the next line and indicated.

2-73
