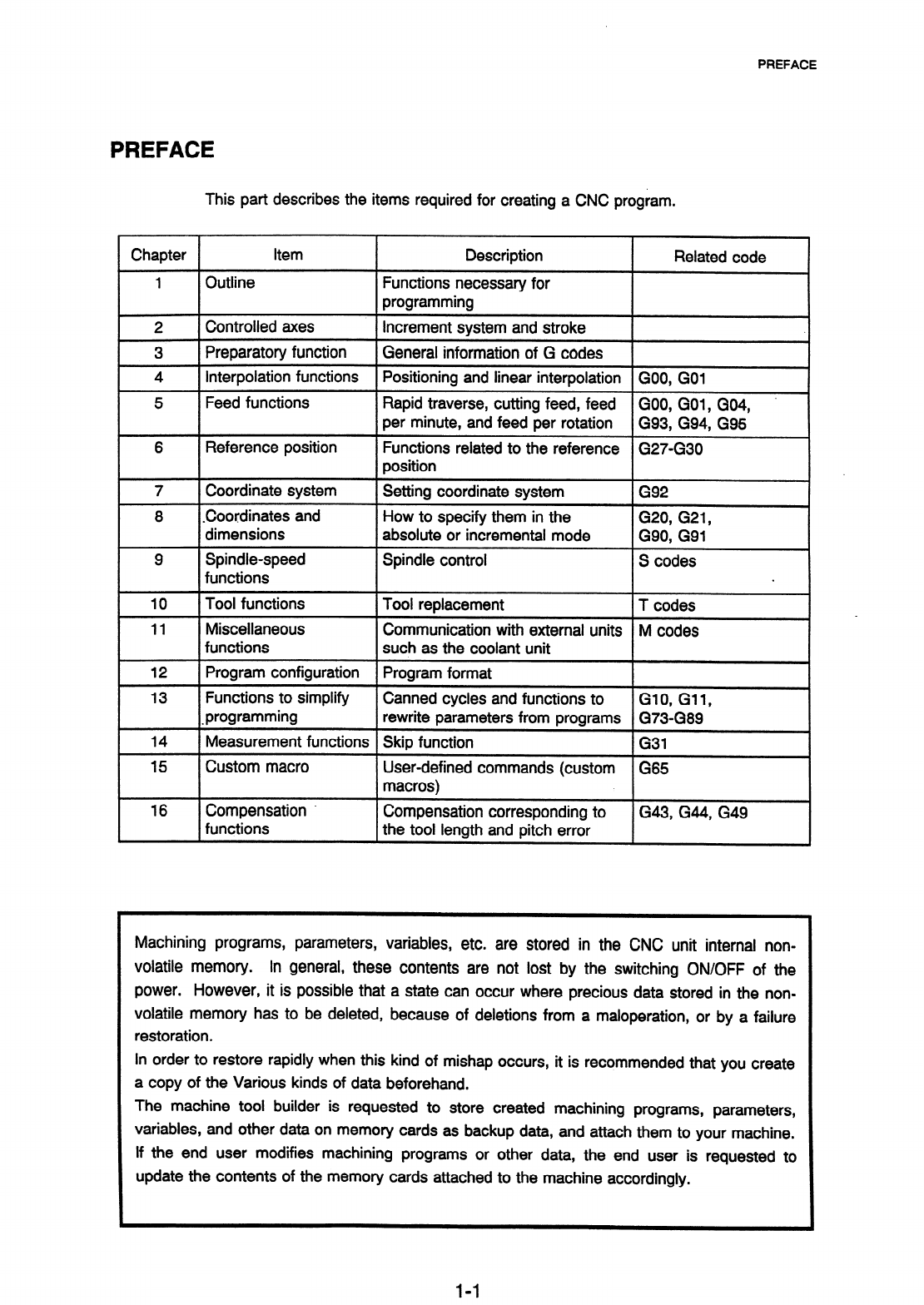

PREFACE

This part describes the items required for creating a CNC program.

Chapter

item

Description

Related code

Outline

Functions necessary for

programming

Controlled axes increment system and stroke

Preparatory function

General information of G codes

interpolation functions

Positioning and linear interpolation GOO, GO1

Feed functions

Rapid traverse, cutting feed, feed GOO, GOI, GO4,

per minute, and feed per rotation

G93, G94, G95

Reference position

Functions related to the reference

G27-G30

position

Coordinate system Setting coordinate system

G92

Coordinates and How to specify them in the

G20, G21,

dimensions

absolute or incremental mode

G90, G91

Spindle-speed Spindle control S codes

functions

Tool functions Tool replacement T codes

11 Miscellaneous

Communication with external units

M codes

functions

such as the coolant unit

Program configuration Program format

Functions to simplify Canned cycles and functions to Glo, Gil,

programming rewrite parameters from programs

G73-G89

14 Measurement functions Skip function

G31

15 Custom macro User-defined commands (custom

G65

macros)

Compensation *

Compensation corresponding to

G43, G44, G49

functions

the tool length and pitch error

Machining programs, parameters, variables, etc. are stored in the CNC unit internal non-

volatile memory.

in general, these contents are not lost by the switching ON/OFF of the

power. However, it is possible that a state can occur where precious data stored in the non-

volatile memory has to be deleted, because of deletions from a maioperation, or by a failure

restoration.

in order to restore rapidly when this kind of mishap occurs, it is recommended that you create

a copy of the Various kinds of data beforehand.

The machine tool builder is requested to store created machining programs, parameters,

variables, and other data on memory cards as backup data, and attach them to your machine.

if the end user modifies machining programs or other data, the end user is requested to

update the contents of the memory cards attached to the machine accordingly.
