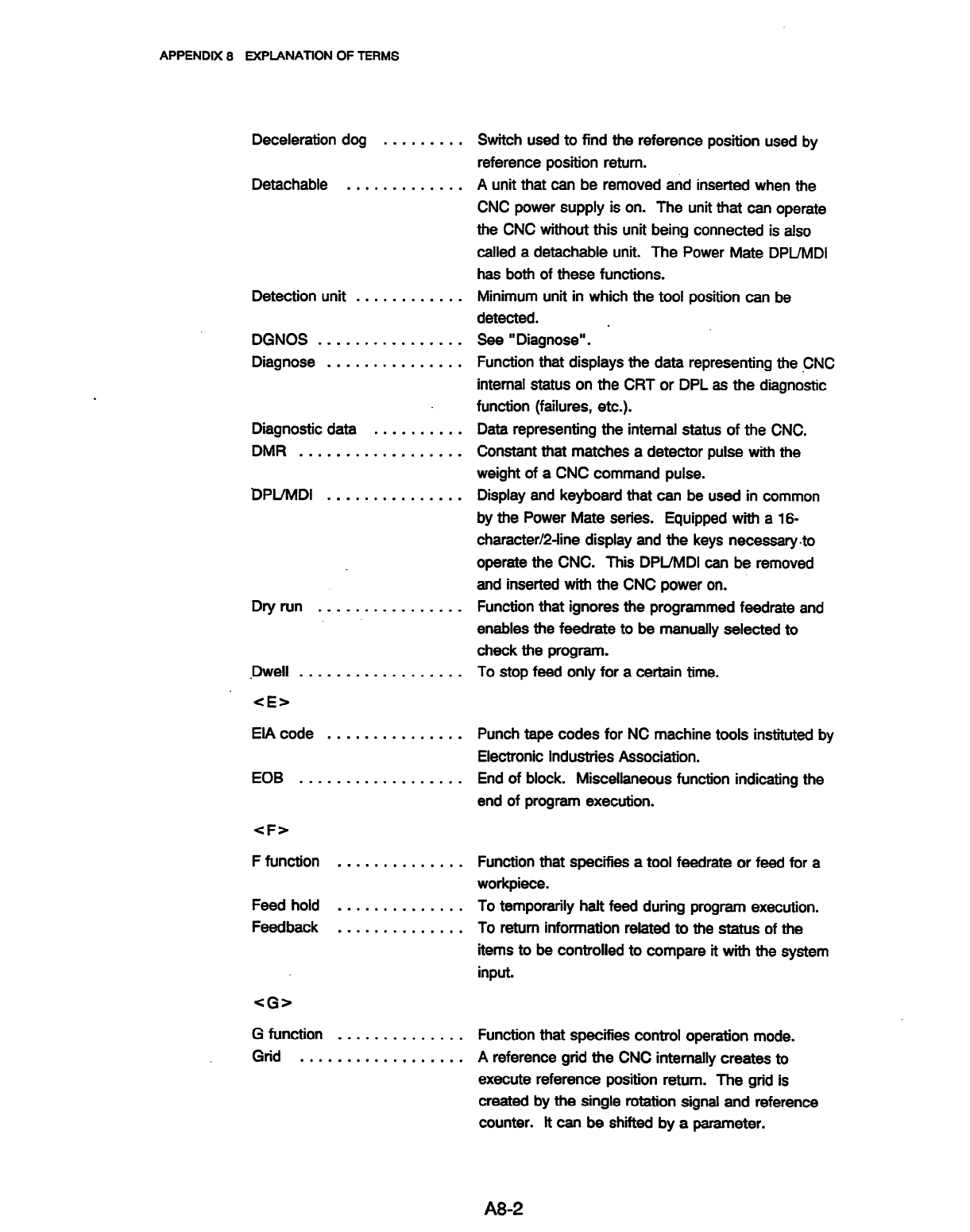

APPENDIX 8

EXPLANATION OF TERMS

Deceieration dog

Detachable

. .

Detection unit . . . . . . . . . . . .

DGNOS

................

Diagnose

...............

Diagnostic data

..........

DMR ..................

DPLIMDI

. . . . . . . . . . . . . . .

Dry run

Dwell . . . . . . . . . . . . . . . . . .

<E>

ElA code

EOB . . . . . . . . . . . . . . . . . .

cF>

F function

. . . . . . . . . . . . . .

Feed hold

..............

Feedback

..............

G function

. . . . . . . . . . . . . .

Grid . . . . . . . . . . . . . . . . . .

Switch used to find the reference position used by

reference position return.

A unit that can be removed and inserted when the

CNC power supply is on. The unit that can operate

the CNC without this unit being connected is also

called a detachable unit. The Power Mate DPUMDI

has both of these functions.

Minimum unit in which the tool position can be

detected.

See ” Diagnose”.

Function that displays the data representing the CNC

internal status on the CRT or DPL as the diagnostic

function (failures, etc.).

Data representing the internal status of the CNC.

Constant that matches a detector pulse with the

weight of a CNC command pulse.

Display and keyboard that can be used in common

by the Power Mate series. Equipped with a 16-

characterI24ine display and the keys necessaryto

operate the CNC. This DPUMDI can be removed

and inserted with the CNC power on.

Function that ignores the programmed feedrate and

enables the feedrate to be manually selected to

check the program.

To stop feed only for a certain time.

Punch tape codes for NC machine tools instituted by

Electronic Industries Association.

End of block. Miscellaneous function indicating the

end of program execution.

Function that specifies a tool feedrate or feed for a

workpiece.

To temporarily halt feed during program execution.

To return information rehted to the status of the

items to be controlled to compare it with the system

input.

Function that specifies control operation mode.

A reference grid the CNC internally creates to

execute reference position return. The grid is

created by the single rotation signal and reference

counter. lt can be shifted by a parameter.

A8-2
