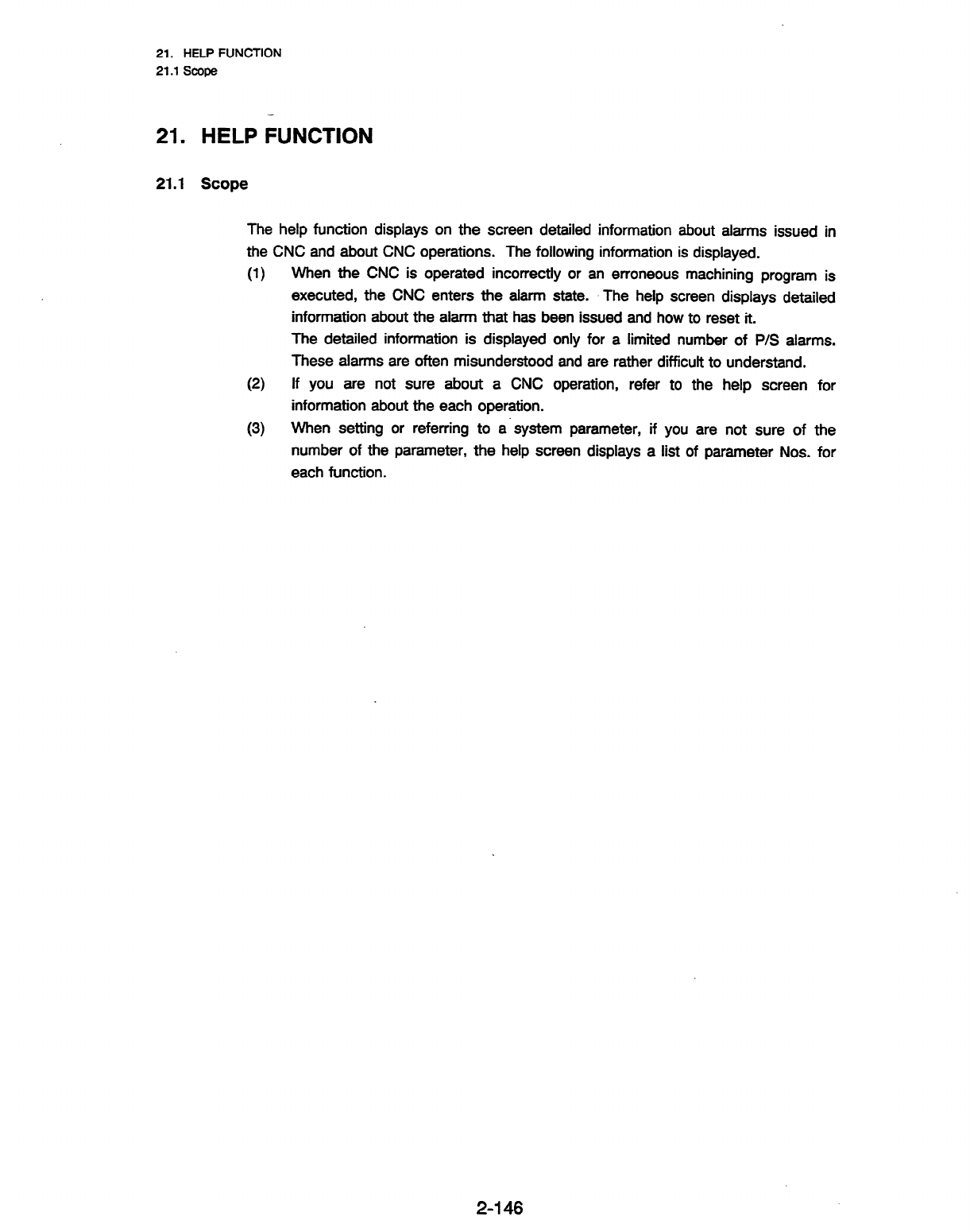

21. HELP FUNCTION

21.1 scope

21. HELP FUNCTION

21.1 Scope

The help function displays on the screen detailed information about alarms issued in

the CNC and about CNC operations. The following information is displayed.

(1)

Men the CNC is operated incorrectly or an erroneous machining program is

executed, the CNC enters the alarm state. The help screen displays detailed

information about the alarm that has been issued and how to reset it.

The detailed information is displayed only for a limited number of P/S alarms.

These alarms are often misunderstood and are rather difficult to understand.

If you are not sure about a CNC operation, refer to the help screen for

information about the each operation.

When setting or referring to a-system parameter, if you are not sure of the

number of the parameter, the help screen displays a list of parameter Nos. for

each function.

2-l 46
