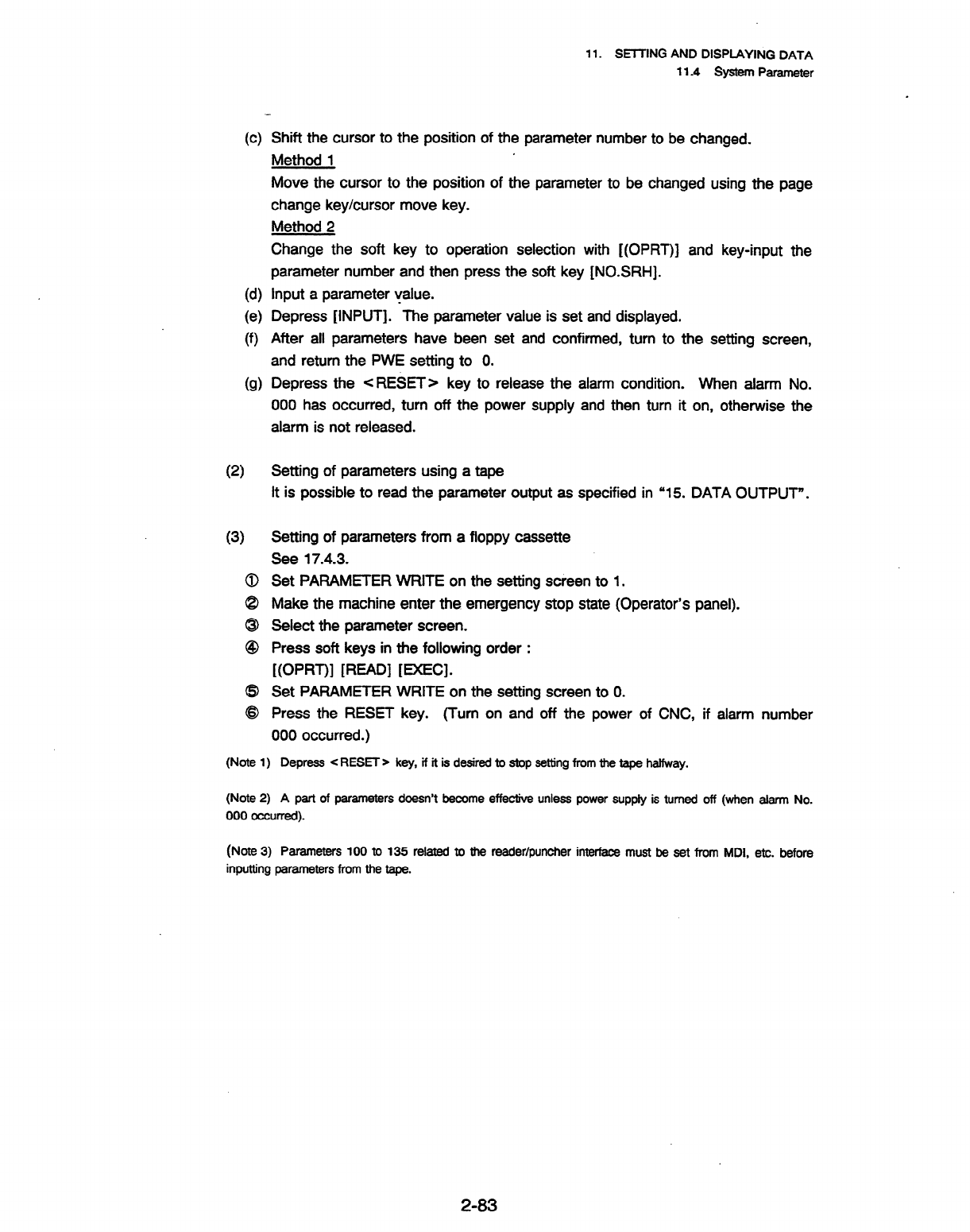

11. SEITING AND DISPLAYING DATA

11.4 System Parameter

Shift the cursor to the position of the parameter number to be changed.

Method 1

Move the cursor to the position of the parameter to be changed using the page

change key/cursor move key.

Method 2

Change the soft key to operation selection with [(OPRT)] and key-input the

parameter number and then press the soft key [NO.SRH].

Input a parameter value.

Depress [INPUT]. ‘The parameter value is set and displayed.

After all parameters have been set and confirmed, turn to the setting screen,

and return the PWE setting to 0.

Depress the < RESET> key to release the alarm condition. When alarm No.

000 has occurred, turn off the power supply and then turn it on, otherwise the

alarm is not released.

Setting of parameters using a tape

It is possible to read the parameter output as specified in “15. DATA OUTPUT”.

Setting of parameters from a floppy cassette

See 17.4.3.

Set PARAMETER WRITE on the setting screen to 1.

Make the machine enter the emergency stop state (Operator’s panel).

Select the parameter screen.

Press soft keys in the following order :

wpm ww P=Cl=

Set PARAMETER WRITE on the setting screen to 0.

Press the RESET key. (Turn on and off the power of CNC, if alarm number

000 occurred.)

(Note I) Depress <RESEW key, if it is desired to stop setting from the tape halfway.

(Note 2) A part

000 occurred).

parameters effective unless

power

SUPPty

is turned off (when

alann No.

(Note 3)

Parameters 100 to 135

inputting

parameters from the

tothe

reader/puncher interface

Must be Set from MDI, etc.

2-83
