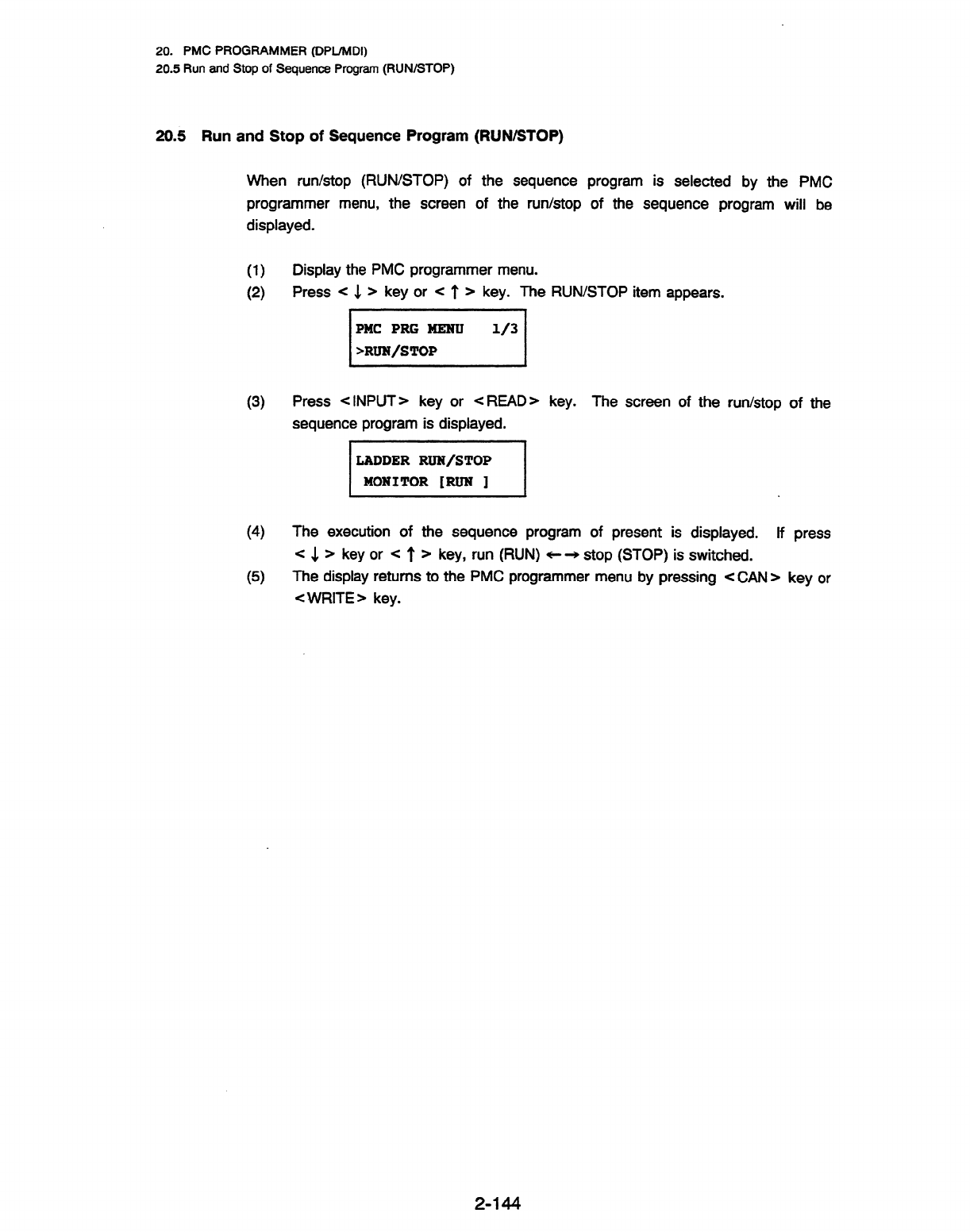

20. PMC PROGRAMMER (DPLMDI)

20.5 Run and Stop of Sequence Program (RUN/STOP)

When run/stop (RUN/STOP) of the sequence program is selected by the PMC

programmer menu, the screen of the run/stop of the sequence program will be

displayed.

(2)

(3)

(5)

Display the PMC programmer menu.

Press < 4 > key or < l’ ) key. The RUN/STOP item appears.

s”‘/

Press < INPUT) key or < READ> key.

The screen of the run/stop of the

sequence program is displayed.

m1 .

The execution of the sequence program of present is displayed. If press

c 1 ) key or < t > key, run (RUN) * + stop (STOP) is switched.

The display returns to the PMC programmer menu by pressing < CAN ) key or

< WRITE > key.

2-144
