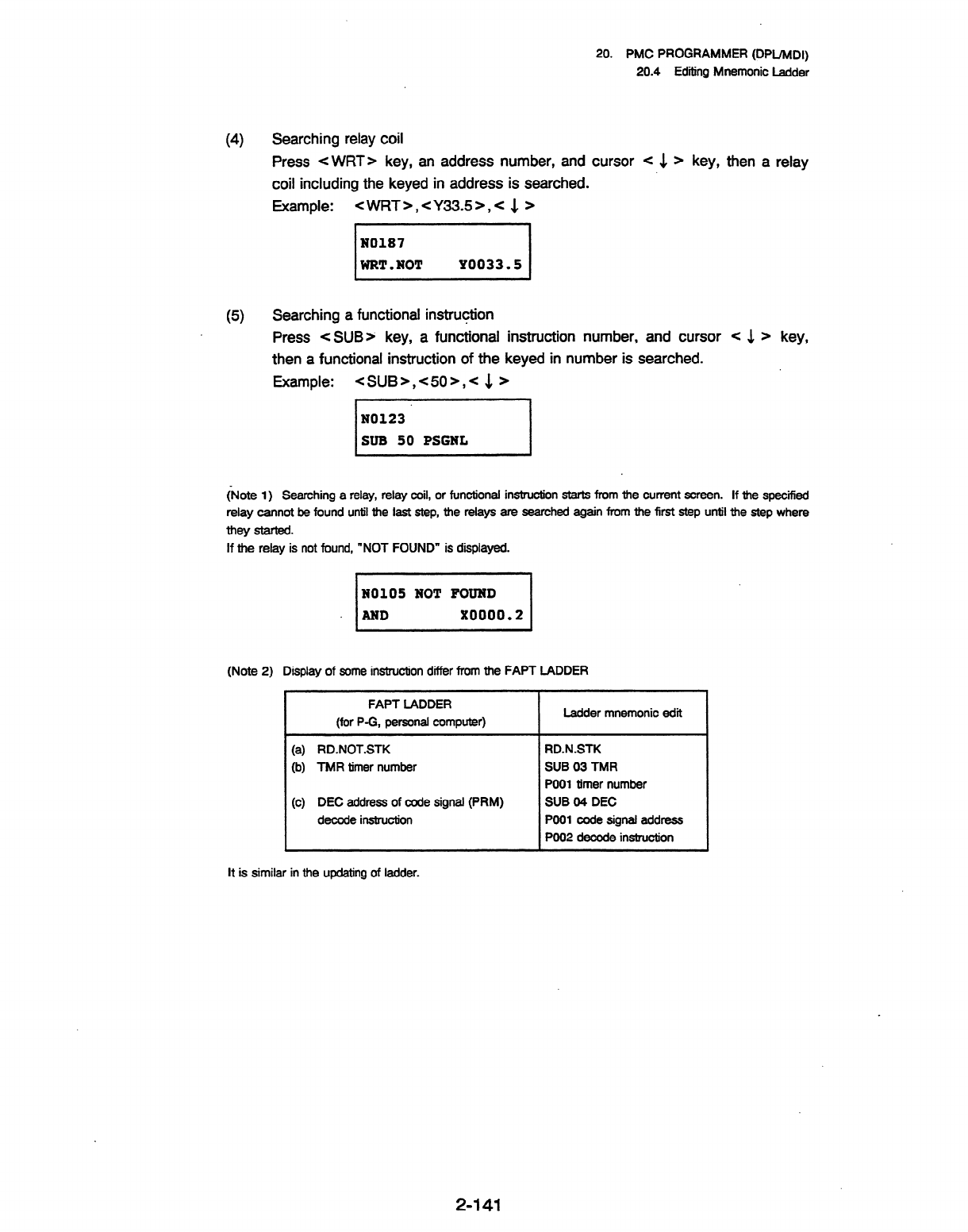

20. PMC PROGRAMMER(DPUMDI)

20.4 Editing Mnemonic Ladder

(4)

Searching relay coil

Press < WRT> key, an address number, and cursor < 4 ) key, then a relay

coil including the keyed in address is searched.

Example:

<WRT>,<Y33.5>,< 4 )

>...,,.,I

(5)

Searching a functional instruction

Press <SUB> key, a functional instruction number, and cursor < & > key,

then a functional instruction of the keyed in number is searched.

Example: <SUB>,<50>,< 4 )

NO123

SUB 50 PSGNL

(Note 1) Searching a relay, relay coil, or functional instruction starts from the current screen. If the specified

relay cannot be found until the last step, the relays are searched again from the first step until the step where

they started.

If the relay is not found, “NOT FOUND” is displayed.

NO105 NOT FOUND

. AND x0000.2

(Note 2) Display of some instruction differ from the FAPT LADDER

FAPT LADDER

(for P-G, personal computer)

Ladder mnemonic edit

(a) RD.NOT.STK

RD.N.STK

(b) TMR timer number SUB 03 TMR

PO01 timer number

SUB 04 DEC

decode instruction PO01 code signal address

PO02 decode instruction

It is similar in the updating of ladder.

2441
