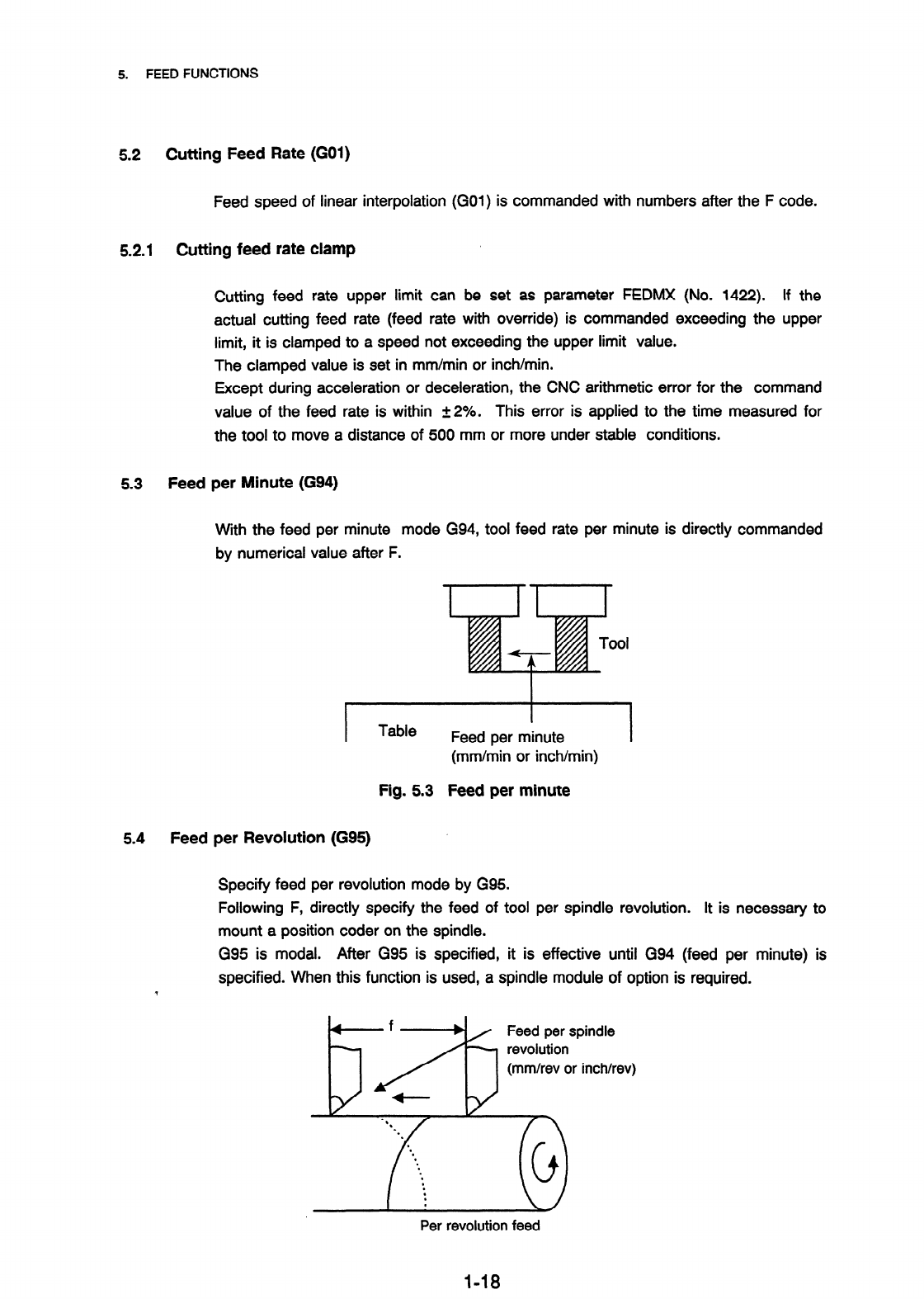

FEED FUNCTIONS

5.2

Cutting Feed Rate (GOl)

Feed speed of linear interpolation (GOl) is commanded with numbers after the F code.

52.1

Cutting feed rate clamp

Cutting feed rate upper limit can be set as parameter FEDMX (No. 1422). If the

actual cutting feed rate (feed rate with override) is commanded exceeding the upper

limit, it is clamped to a speed not exceeding the upper limit value.

The clamped value is set in mm/min or inch/min.

Except during acceleration or deceleration, the CNC arithmetic error for the command

value of the feed rate is within 2 2%. This error is applied

to the time measured for

the tool to move a distance of 500 mm or more under stable

conditions.

5.3

Feed per Minute (G94)

With the feed per minute mode G94, tool feed rate per minute is directly commanded

by numerical value after F.

Table

Feed per minute

(mm/min or inch/min)

Fig. 5.3 Feed per minute

Feed per Revolution (G95)

Specify feed per revolution mode by G95.

Following F, directly specify the feed of tool per spindle revolution. It is necessary to

mount a position coder on the spindle.

G95 is modal. After G95 is specified, it is effective until G94 (feed per minute) is

specified. When this function is used, a spindle module of option is required.

/ Feed per spindle

- revolution

(mm/rev or inch/r w)

Per revolution feed

1-18
