Series 20i-MODEL A Parameter manual Page 34

Parameter manual
4. DESCRIPTION OF PARAMETERS
B–63380EN/02
30
1221
Workpiece zero point offset value in workpiece coordinate system 1 (G54)
Workpiece zero point offset value in workpiece coordinate system 2(G55)
1222
1223
Workpiece zero point offset value in workpiece coordinate system 3(G56)
1224
Workpiece zero point offset value in workpiece coordinate system 4 (G57)
1225
Workpiece zero point offset value in workpiece coordinate system 5 (G58)
1226
Workpiece zero point offset value in workpiece coordinate system 6 (G59)
[Data type] 2–word axis
Input increment IS–B IS–C Unit
Linear axis (input in mm) 0.001 0.0001 mm
Linear axis (input in inches) 0.0001 0.00001 inch
Rotation axis 0.001 0.0001 deg
[Valid data range] –99999999 to 99999999
The workpiece zero point offset values in workpiece coordinate systems 1
to 6 (G54 to G59) are set.

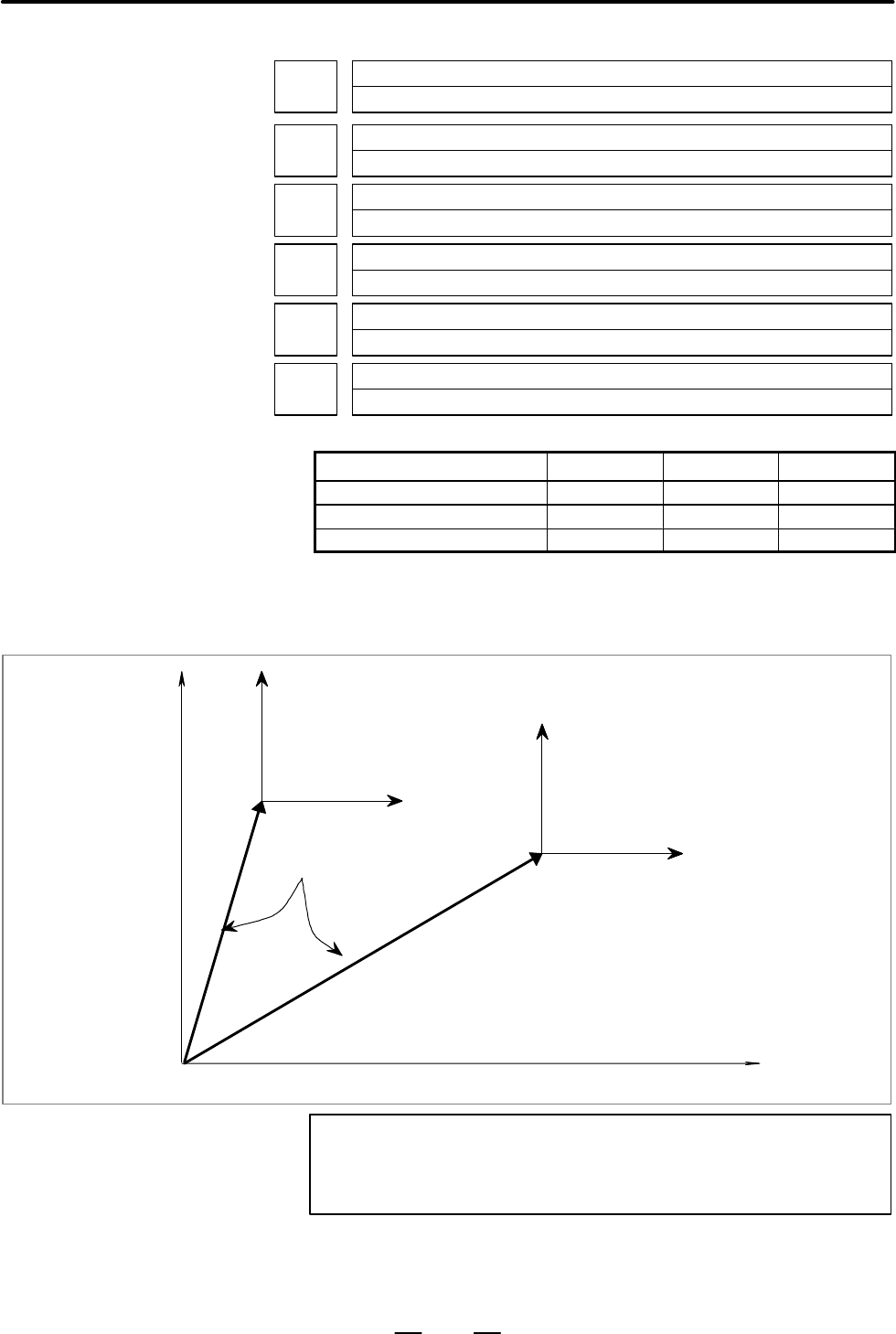

Workpiece coordinate system 1 (G54)
Workpiece zero point offset
Origin of machine coordinate system
Workpiece coordinate system 2 (G55)
NOTE
The workpiece origin offset can also be set using the
workpiece coordinate system screen.
[Unit of data]
