Series 20i-MODEL A Parameter manual Page 92

Parameter manual
4. DESCRIPTION OF PARAMETERS
B–63380EN/02
88

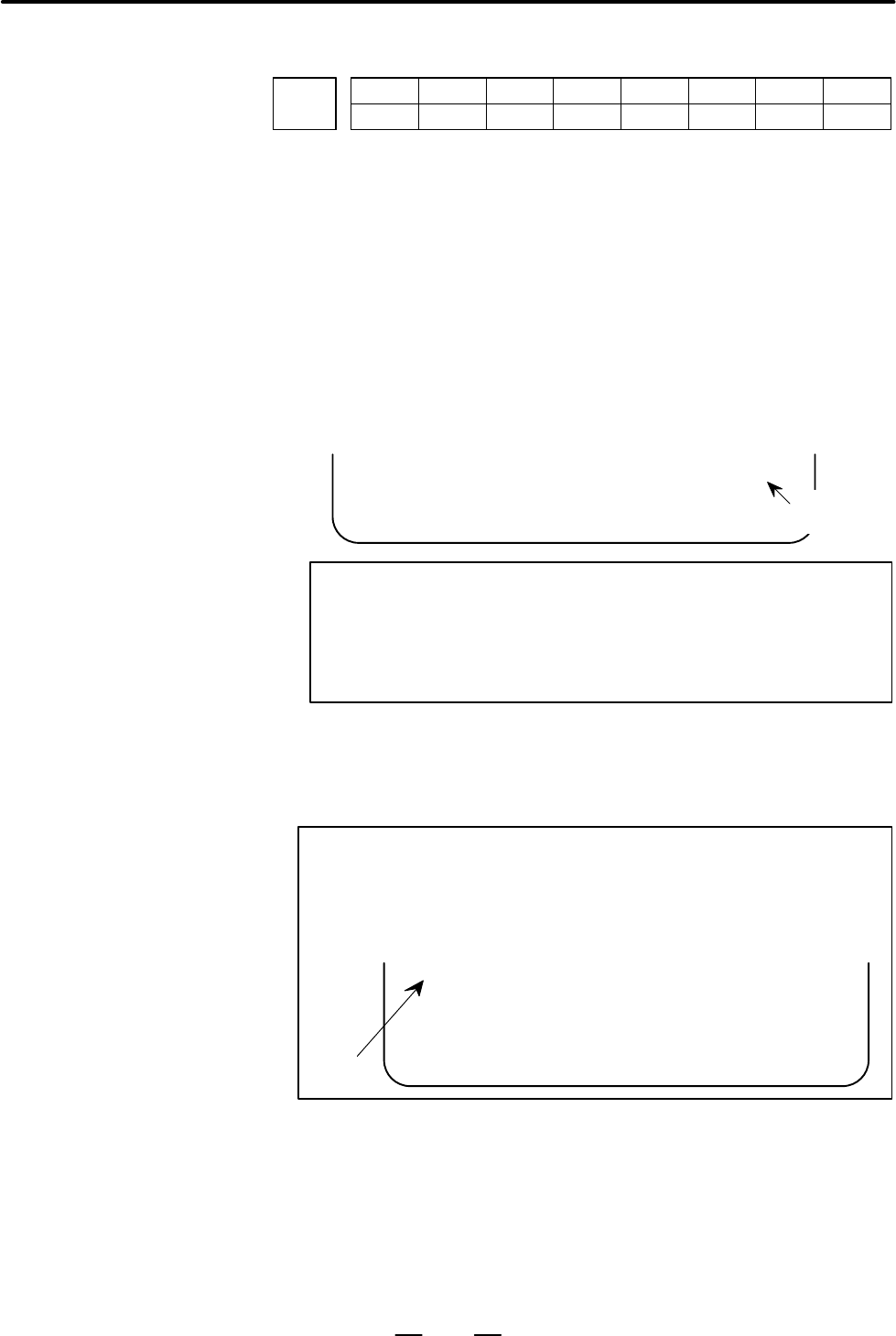

#7
JSP
3108
#6
SLM
SLM
#5 #4
WCI
WCI
#3 #2 #1
PCT
#0
JSP
[Data type] Bit
PCT On the 7–pieces type soft key display program check screen, T code
displayed
0 : is a T code specified in a program (T).
1 : is a T code specified by the PMC (HD. T/NX. T)
WCI On the workpiece coordinate system screen, a counter input is:
0 : Disabled.
1 : Enabled.
SLM The spindle load meter is:
0 : Not displayed.
1 : Displayed.
>_ Sxxxxx Lxxx%
EDIT *** *** *** 12:34:56
[] [] [] [] []
Display of the
spindle load
meter
NOTE
1 This parameter is enabled only when the DPS parameter
(bit 2 of parameter No.3105) is set to 1.
2 When displaying the spindle load meter for an analog
spindle, also set parameter Nos.3161, 3162, and 3163.
JSP On the current position display screen and program check screen, jog feed is:
0 : Not displayed.
1 : Displayed.
NOTE
In manual operation mode, the jog feedrate is displayed. In
automatic operation mode, the dry run feedrate is displayed.
In each case, the feedrate to which a manual feedrate
override has been applied is displayed.
JOG F 8000 PART COUNT 15
RUN TIME 1H17M CYCLE TIME 1H15S
ACT.F 1000 MM/M
MEM STRT MTN *** 12:34:59
[ ] [ ] [ ] [ ] [ ]
Jog
feedrate
