Panel i Connection And Maintenance Manual Page 128

Connection And Maintenance Manual
4.MAINTENANCE OF OPEN CNC (BOOT-UP AND IPL) MAINTENANCE B-64223EN/01
- 116 -

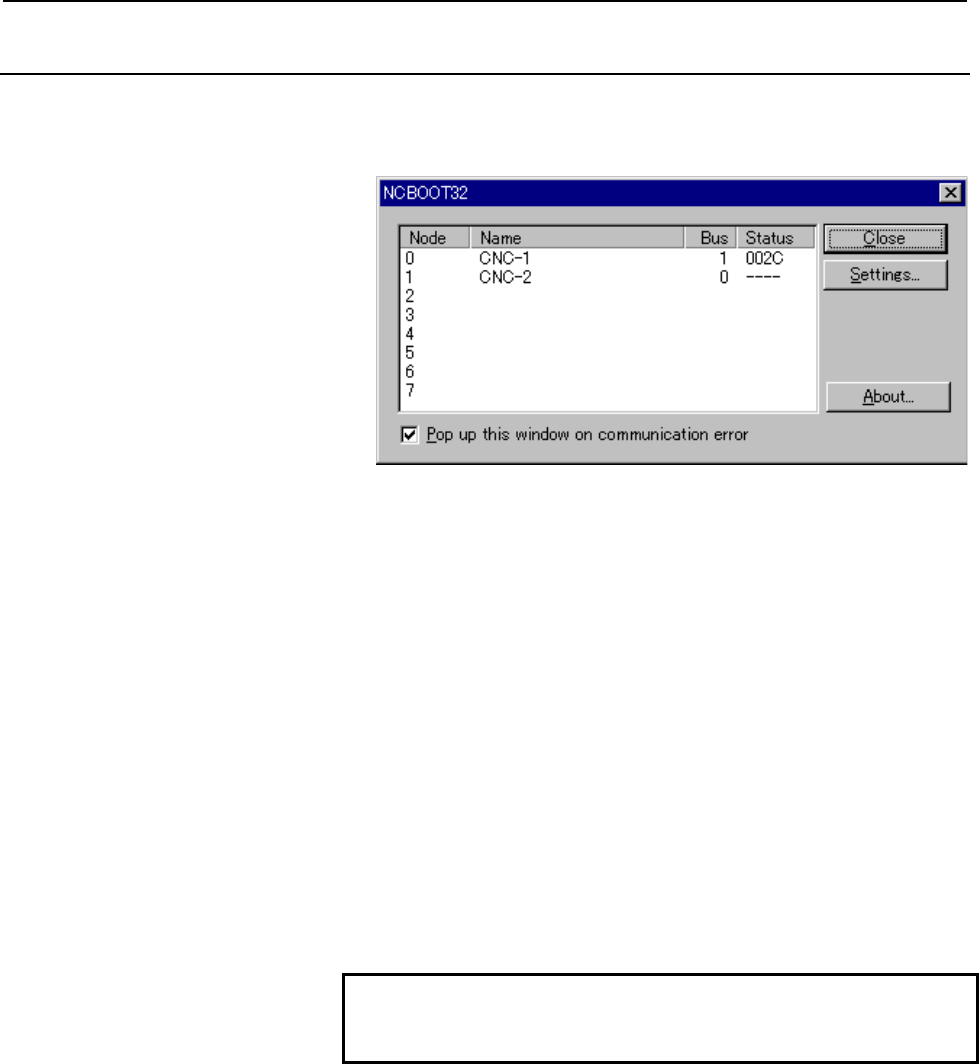

4.4.2 Status Screen
To open the status screen, double-click the icon in the system tray.
Alternatively, in the menu popped up by right-clicking, click OPEN.
Node: Node number
Name: Node name. (Define the node name in advance by using the
HSSB applet on the control panel.)
Bus: Hardware communication status (0: Communication error, 1:
Communication established)
Status: Status (in hexadecimal)
Bit 2: End of boot processing
Bit 3: End of IPL processing
Bit 4: Maintenance mode (Rotary switch position F)
Bit 5: Display of 30 lines on IPL/system alarm screen
Bit 8: CNC system alarm
Pop up this window on communication error: By checking this item,
this screen is opened automatically when a communication error
occurs.
Clicking the [Close] button closes the screen.
Clicking the [Setting...] button opens the option setting screen.
Clicking the [About...] button opens the version information screen.
NOTE
The Series 300is/310is/320is does not provide a
status screen.
