Panel i Connection And Maintenance Manual Page 87

Connection And Maintenance Manual
B-64223EN/01 CONNECTION 5.METHOD OF MOUNTING PCI EXTENSION BOARD
- 75 -

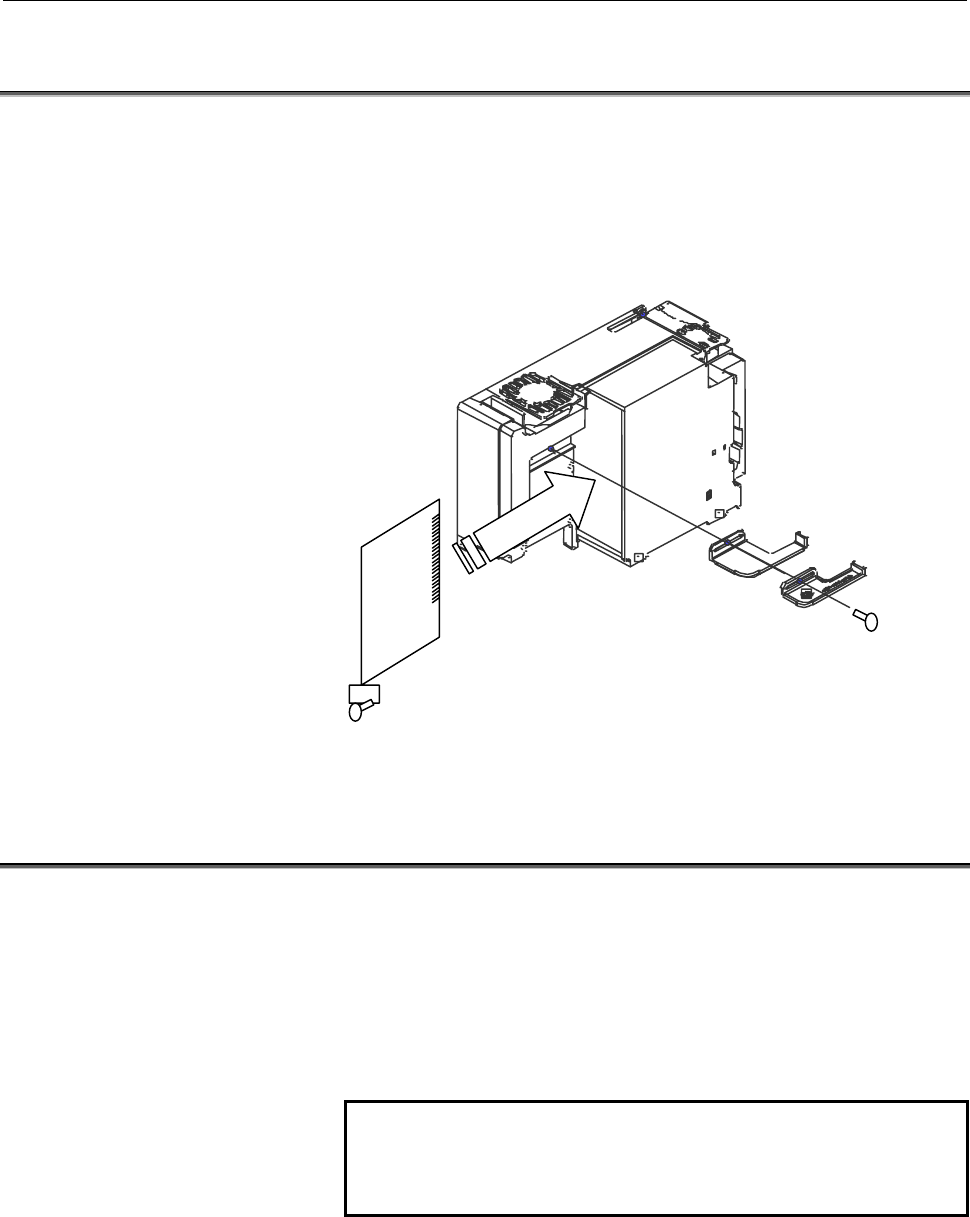

5.2 METHOD OF MOUNTING PCI EXTENSION BOARD
(1) Release vibration-proof fittings 1, 2 by loosening the screw at
point (B).
(2) Push the board fully into the PCI connector.
(3) Tighten the screw at point (A).
(4) Press down vibration-proof fittings to the PCI extension board
and tighten the screw at point (B).
Fittings 1, 2
PCI extension board
(B)
(A)
5.3 CONDITIONS FOR THE INSTALLATION ENVIRONMENT
OF A PCI EXTENSION BOARD
For the conditions for the installation environment of a PCI extension
board, see the specifications of the PCI extension board. If the
specifications of the PCI extension board are stricter than the
conditions described in Section 2.2, "Installation Environmental
Conditions", the conditions for the installation environment of the
PANEL i are restricted to the conditions for the PCI extension board
accordingly.
NOTE
FANUC cannot take any responsibility for a
guarantee of operation, troubles during use, and
maintenance when PCI extension boards are used.
