Panel i Connection And Maintenance Manual Page 156

Connection And Maintenance Manual
6.MAINTENANCE SUPPLIES MAINTENANCE B-64223EN/01
- 144 -
6.9.2 Method of exchanging Touch Panel Protection Sheet
(A02B-0236-K130)

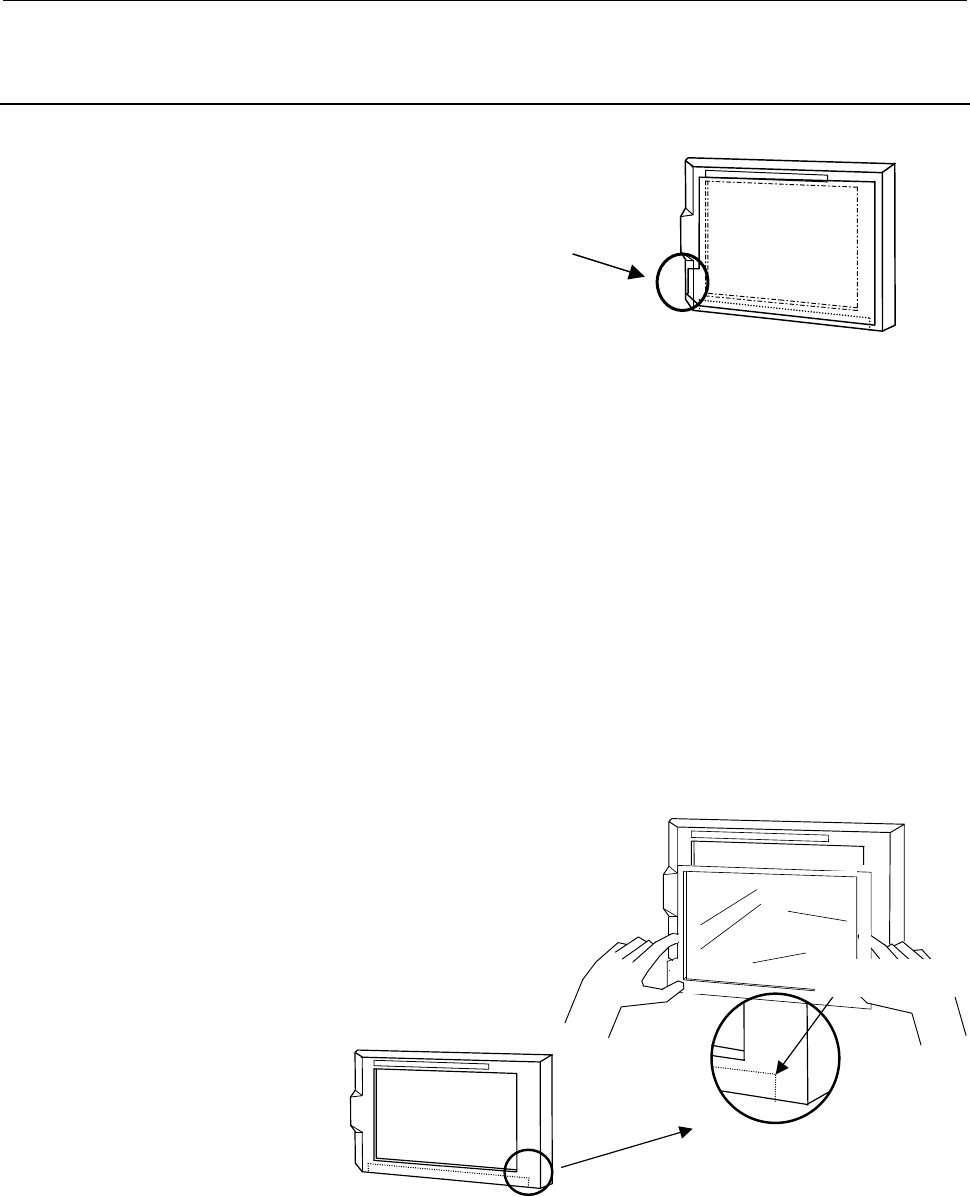

(1) At first, strip the old Touch Panel Protection Sheet off.
Tab for exchange
(2) Wipe off adhesive residue if any with alcohol.
(3) Use a neutral detergent to remove oil and dirt stuck to the surface
of the touch panel.
(4) With a soft, damp cloth, wipe off the detergent completely.
If the surface of the touch panel is cloudy, oil is still left.
Remove oil completely.
If oil or detergent is left on the surface of the touch panel, the
protection sheet cannot adhere to the panel completely and will
sometimes peel off easily.
(5) With a soft, dry cloth, wipe off moisture completely.
(6) Strip the film on the back of the new Touch Panel Protection
Sheet (this side is to stick on the LCD face.)
(7) Put the tab of exchange on the lower left side of the new one, and
stick the Touch Panel Protection Sheet. At this time, align the
overhang edge at bottom of the gray plastic frame with the
overhang edge of the Touch Panel Protection Sheet. In addition,
prevent dust from entering between the LCD and the Touch
Panel Protection Sheet.
Guid
e
position
(8) Stick the four sides while pushing out air between the touch
panel and the Touch Panel Protection Sheet.
Do not pull the Touch Panel Protection Sheet to correct its
position with the part of the sheet kept stuck to the touch panel.
