Panel i Connection And Maintenance Manual Page 43

Connection And Maintenance Manual
B-64223EN/01 CONNECTION 4.CONNECTION TO PERIPHERAL
- 31 -

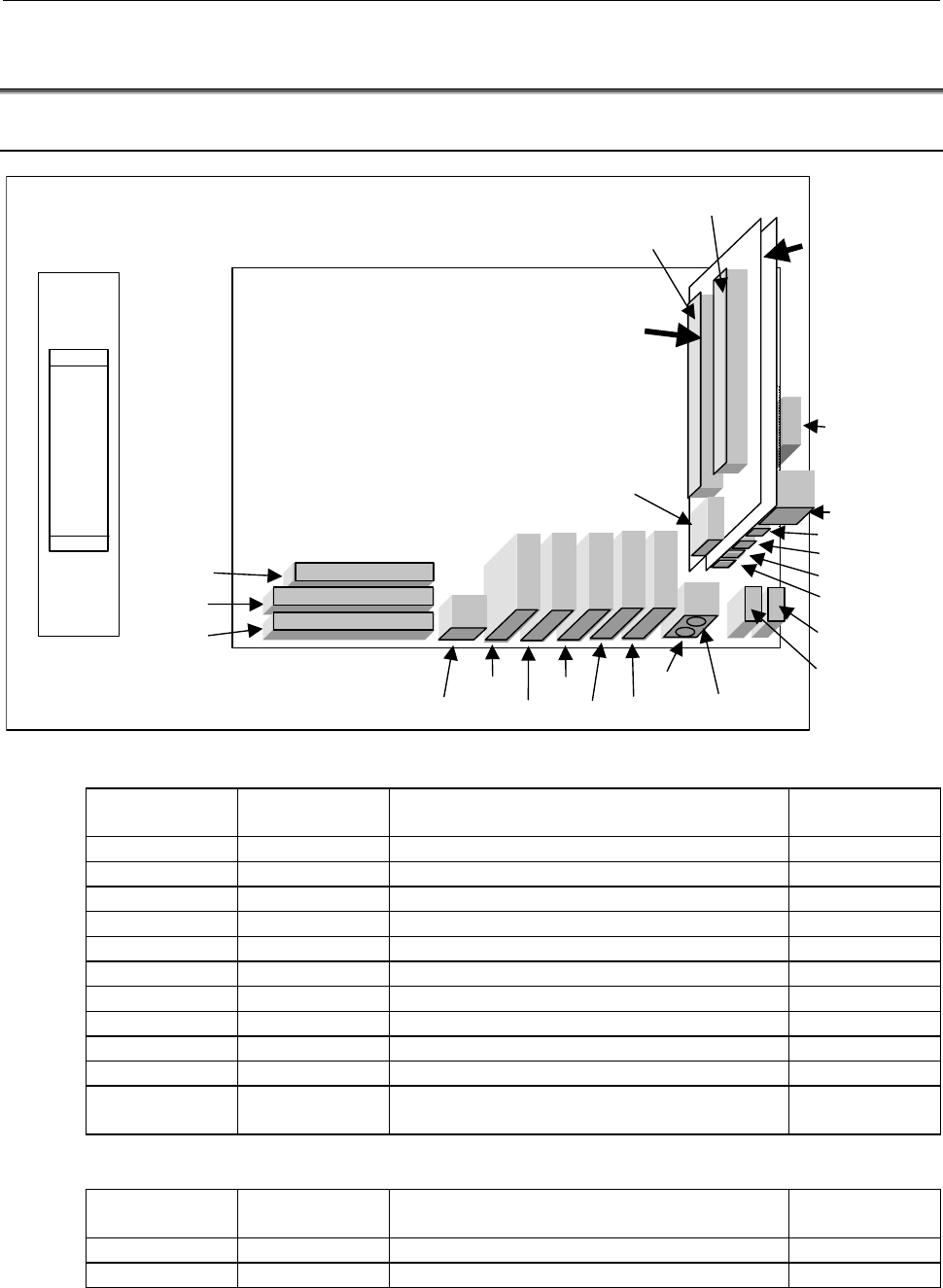

4.1 CONNECTOR LOCATION
4.1.1 PANEL i
CPD14
View from the back
side
COP7 (150
i
/160
i
/180
i
/210
i
)
COP21 (300
i
)
CD32L
CD32U
CPD11B
JD9JD33
JD46
CA78A
CA78B
CD41L
CD41M
CA81B
CD34
CA81A
CPD11C
CPE11C
CPD11A
CD38U
Master printed circuit
board
PCI Back Panel PCB
Power supply
PCB
JA63
JA61
CD46L
Master PCB
Connector
Number
Connector
Name
Function Reference
CA81A, B HDD1, HDD2 HDD signal (Primary, Secondary) Section 4.8
CD34 FDD FDD signal Section 4.9
CD38U ETHERNET Ethernet Section 4.11
JD33 232-1 Serial Port1 Section 4.3
JD46 232-2 Serial Port 2 Section 4.4
JD9 CENTRO Parallel Port Section 4.5
JA61 MDI
MDI (300i)
Section 4.13
JA63 CRT Video port Section 4.12
CD32L KEY BOARD Keyboard Section 4.7
CD32U MOUSE Mouse Section 4.7
CD41L,M
CD46L
USB1,USB2
USB3
USB port (channel 1, 2, 3)
(USB3 provided only for the 300i)
Section 4.10
PCI Back Panel PCB
Connector
Number
Connector
Name
Function Reference
COP7 or COP21 HSSB High Speed Serial Bus (HSSB) Section 4.6
CA78A,B PCI SLOT1,2 PCI extension slot Chapter 5
